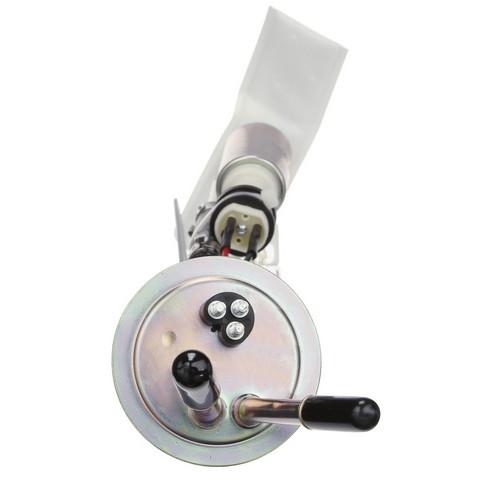

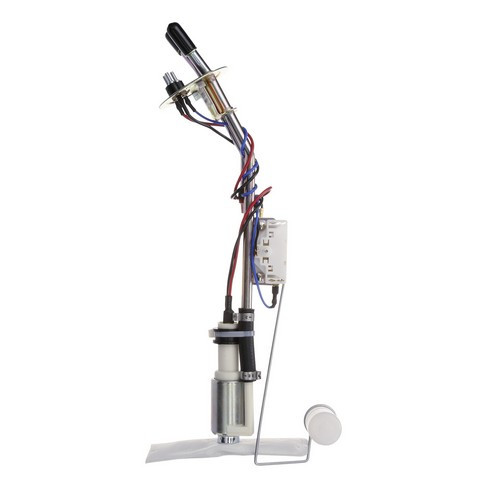

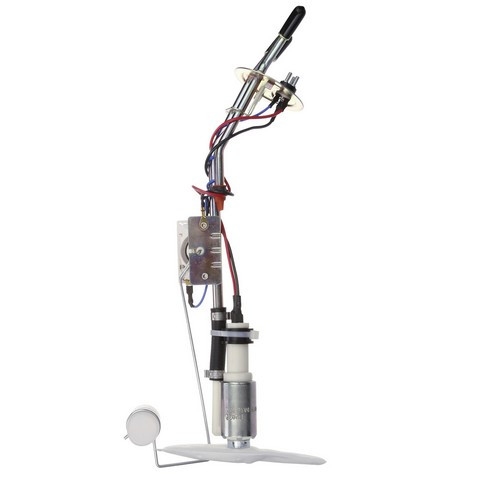

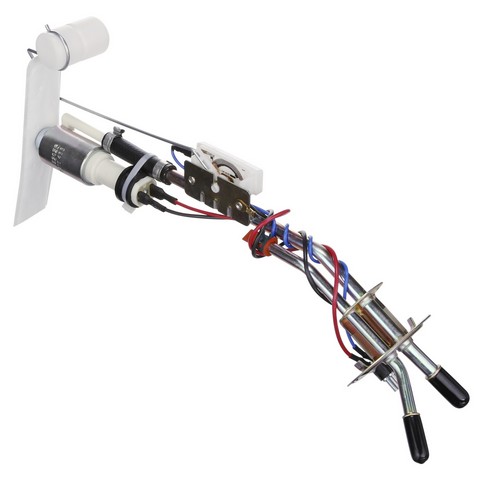

Delphi HP10186 fuel pump and sender assembly for the 1988-1989 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles delivers fuel from the tank to the engine and carries the float that reads the fuel level. The pump hanger is sold as a single assembly with its float arm, and the pump is built to Delphi's OE standards.
- Delphi fuel pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes on the hanger are routed so they never touch the tank, which removes noise and vibration while driving
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested
Quick facts
- Part: Delphi HP10186 fuel pump and sender assembly
- Fits: 1988-1989 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the pump or sender is failing. Before you replace the assembly, rule out a clogged fuel filter, a blown fuse or a failed relay, since those can show up with similar symptoms. If the pump or sender is the cause, this assembly replaces it.
Fits
It is listed for a wide range of Ford truck models, led by the 1988-1989 Ford F-250 6-cylinder 4.9L, V8 5.0L, 5.8L or 7.5L. It is also listed as a Ford F-350 fuel pump for the 1988-1989 F-350 V8 5.8L or 7.5L. The quantity is one per truck. If your truck is not named here, look up your year, model and engine in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box

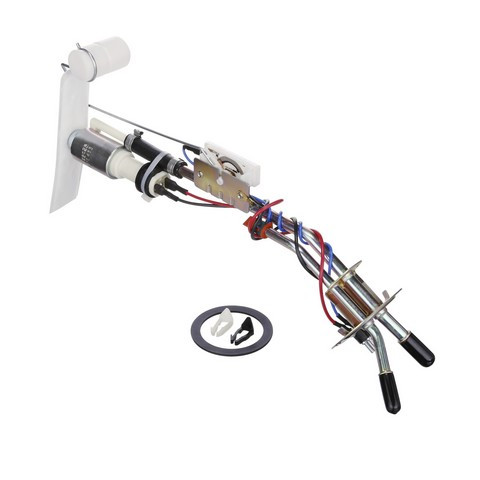

One fuel pump and sender assembly with float arm, one seal, two retainer clips and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- An instruction sheet comes with the part for the steps.
Interchange: 951-3000 · E7TZ 9H307-F · E7TZ 9H307-FA · PFS-140
4011103 · 4017224 · E2143S · E2484 · DHP10186 · 69100 · 69111 · P74096 · P74519S · AFS1003P · RE0098S · RE1003P · C0045H · A27090 · E16045 · SP1152 · SP2020H · USEP2143S
This part cross-references / interchanges with the following part numbers:
4011103, 4017224, E2143S, E2484, DHP10186, 69100, 69111, P74096, P74519S, 951-3000, AFS1003P, RE0098S, RE1003P, E7TZ 9H307-F, E7TZ 9H307-FA, PFS-140, C0045H, A27090, E16045, SP1152, SP2020H, USEP2143S
Frequently Asked Questions
Is this Ford F-150 fuel pump right for the 1988-1989 F-150 6-cylinder 4.9L, V8 5.0L or 5.8L?
Yes. Delphi HP10186 is listed for the 1988-1989 Ford F-150 with the 6-cylinder 4.9L, V8 5.0L or 5.8L, at one per truck. For other trucks, use the "Vehicles it fits" section.
Can I use this Ford F-250 fuel pump on a 1988-1989 F-250 with the V8 7.5L?
Yes. The 1988-1989 Ford F-250 is listed with the 6-cylinder 4.9L, V8 5.0L, 5.8L and 7.5L engines, so the V8 7.5L is covered by Delphi HP10186.
What comes with the Delphi fuel pump assembly HP10186?
The fuel pump and sender assembly comes with its float arm, a seal, two retainer clips and an instruction sheet.
Does the float on this fuel pump and sender assembly match OE specifications?
Yes. The float's empty height and how it is retained are matched to OE specifications, which is meant to keep the gas gauge reading the tank level correctly.
Is there anything to do to the tank before fitting this fuel pump and sender assembly?
Yes. The fuel tank should be checked and cleaned before the new assembly goes in. The instruction sheet in the box covers the installation steps.
