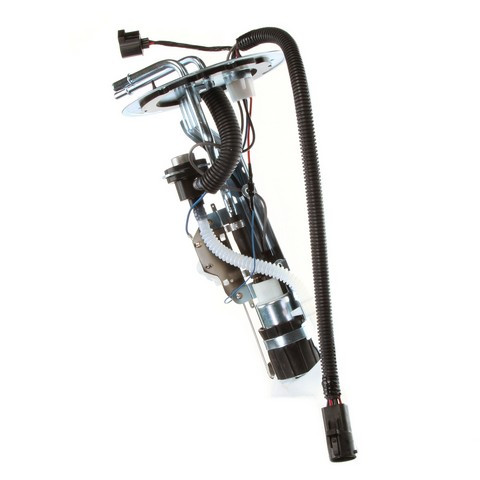

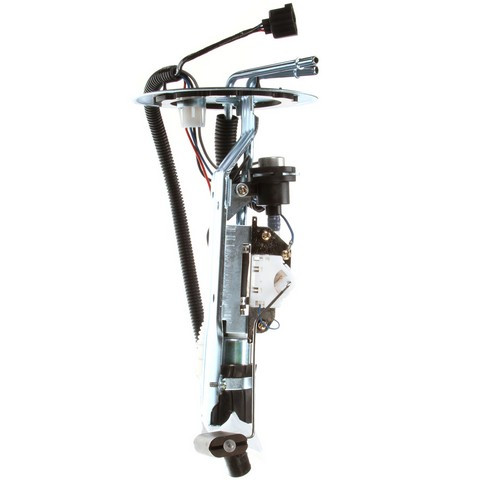

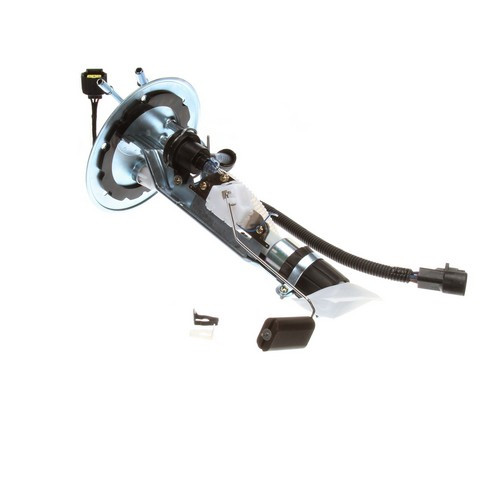

Delphi HP10134 fuel pump hanger assembly for the 2001-2003 Ford Explorer Sport Trac V6 4.0L and other vehicles sends fuel from the tank to the engine. Mounted in the tank, it holds the electric pump, built to Delphi's OE standards, and the fuel level sender.
- Delphi pump designed to run in extreme temperatures and give quick engine starts
- Metal tubes routed so they never touch the tank, to eliminate noise and vibration while driving
- Empty float height and float retention set for a correct gas gauge reading
- Pump built for fast pressure performance and efficient pumping on less energy
- Lower-amperage pump that puts less load on the electrical system
- Hanger assembly validated and tested for its specific vehicle application
Quick facts
- Part: Delphi HP10134 fuel pump hanger assembly
- Fits: 2001-2003 Ford Explorer Sport Trac V6 4.0L and other vehicles
Hard starting, stalling or a fuel gauge that reads wrong can mean the pump or sender is worn. Those signs have other causes too, so start by looking over the fuel pump fuse with the engine off, and let a shop test the fuel pressure.
Fits
It is a direct-fit replacement for the 2001-2003 Ford Explorer Sport Trac V6 4.0L, which takes one, and for the 2001-2003 Ford Explorer Sport V6 4.0L, which also takes one; this listing is one fuel pump hanger assembly.
Specifications
Fit and size
- Quantity per vehicle: 1
- Fit type: specific
- Inlet: 1, strainer type
- Outlets: 2, quick connect

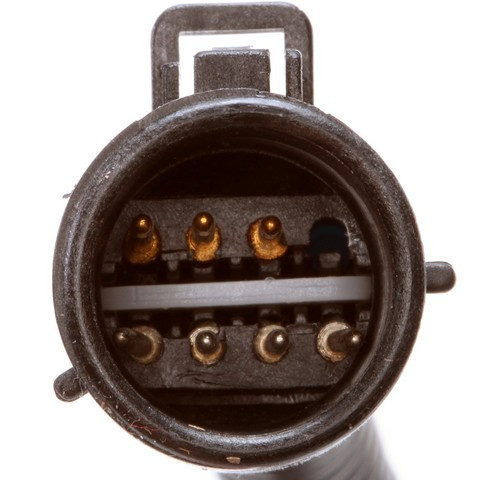

- Electrical connector: round, female, 7 male pin terminals
Build and materials
- Location: in tank
- Pump type: electric
- Fuel type: gas
- Strainer: external, included
- Fuel level sender resistance: 16 ohms empty, 160 ohms full
- Country of origin: China
In the box
One fuel pump hanger assembly with float arm, two retainer clips, a gasket or seal and an instruction sheet. The lock ring and mounting hardware are not included, and the old ones may not be reusable, so plan on new ones.
Installation notes
- Check and clean the fuel tank before installing the new hanger assembly.
- The included instruction sheet gives the installation steps.
Frequently Asked Questions
Will this Delphi fuel pump fit a 2001-2003 Ford Explorer Sport V6 4.0L?
Yes. The Delphi HP10134 fuel pump hanger assembly is a direct-fit replacement for the 2001-2003 Ford Explorer Sport V6 4.0L, which takes one.
Is this a 2001-2003 Ford Explorer Sport Trac V6 4.0L fuel pump?
Yes. This fuel pump hanger assembly fits the 2001-2003 Ford Explorer Sport Trac V6 4.0L and includes the electric pump and the fuel level sender.
Does the Delphi fuel pump assembly come with a lock ring?
No. The Delphi HP10134 comes with the hanger assembly with float arm, two retainer clips, a gasket or seal and an instruction sheet; the lock ring and mounting hardware are not included.
Is this a Delphi universal fuel pump?
No. This fuel pump hanger assembly is a specific-fit part, not a universal pump, and comes with its own float arm, external strainer and two quick-connect outlets.
What resistance does the fuel level sender on this hanger assembly read?
The fuel level sender on this fuel pump hanger assembly reads 16 ohms at empty and 160 ohms at full.
