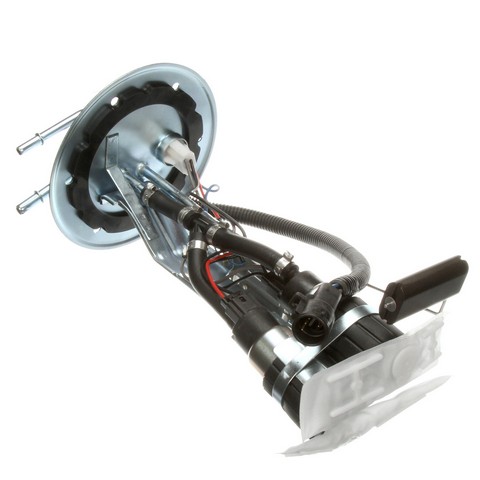

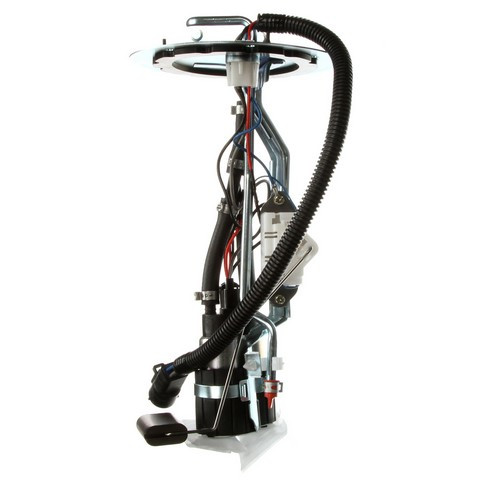

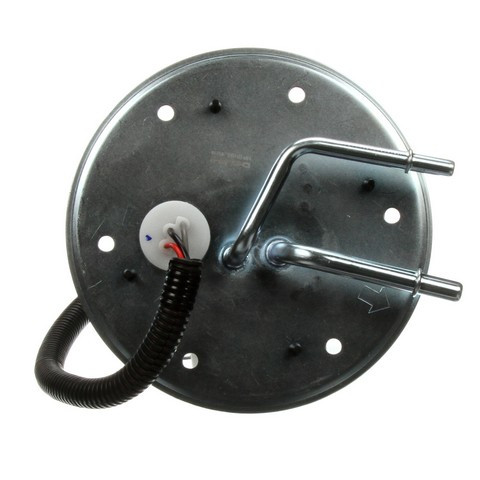

Delphi HP10192 fuel pump and sender assembly for the 1999-2003 Ford F-150 V8 5.4L and other vehicles moves fuel from the tank toward the engine and carries the float arm that feeds the fuel gauge.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never contact the tank, which removes noise and vibration while driving
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested for its application
Quick facts
- Part: Delphi HP10192 fuel pump and sender assembly
- Fits: 1999-2003 Ford F-150 V8 5.4L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that misreads can point to a worn pump or float. These signs alone do not prove this assembly is the problem; a clogged fuel filter can produce some of them too.
Fits
This assembly fits the 1999-2003 Ford F-150 V8 5.4L and the 2004 Ford F-150 Heritage V8 5.4L, and each takes one.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump and sender assembly with float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- An instruction sheet comes with the assembly for the steps.
Interchange: 953-4165 · XL3Z 9H307-GA · XL3Z 9H307-GB · PFS-110
4011071 · E2265S · DHP10192 · 67154 · 69546 · P74886S · RE0320S · C0075H · A30199 · SP2090H · USEP2265S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4011071, E2265S, DHP10192, 67154, 69546, P74886S, 953-4165, RE0320S, XL3Z 9H307-GA, XL3Z 9H307-GB, PFS-110, C0075H, A30199, SP2090H, USEP2265S
Frequently Asked Questions
Will this fuel pump work in the 1999-2003 Ford F-150 V8 5.4L?
Yes. Delphi HP10192 fits the 1999-2003 Ford F-150 V8 5.4L and the 2004 Ford F-150 Heritage V8 5.4L, one per truck.
What comes with this Delphi fuel pump and sender assembly?
Delphi HP10192 comes with the float arm, six bolts, six washers, two retainer clips and an instruction sheet.
How does the float on this Delphi fuel pump assembly affect the gas gauge?
Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Is this Delphi fuel pump built to OE standards?
Yes. Delphi HP10192 is built to Delphi's OE standards, and the part is validated, tested and matched to its vehicle application.
Does the Delphi Technologies fuel pump HP10192 replace number XL3Z 9H307-GA?
Yes. XL3Z 9H307-GA is on the interchange list for Delphi HP10192, along with XL3Z 9H307-GB and 953-4165.
