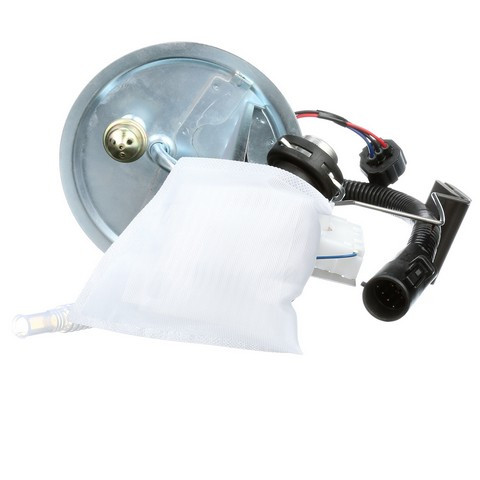

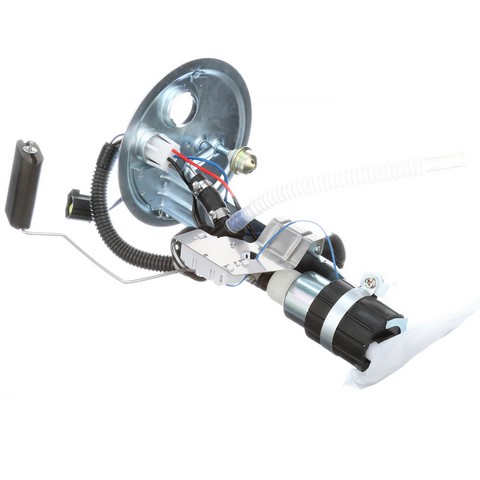

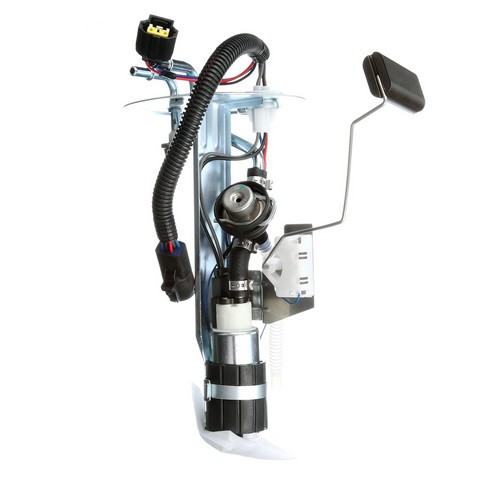

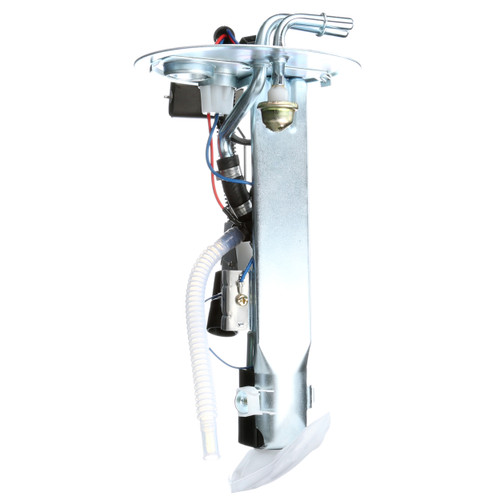

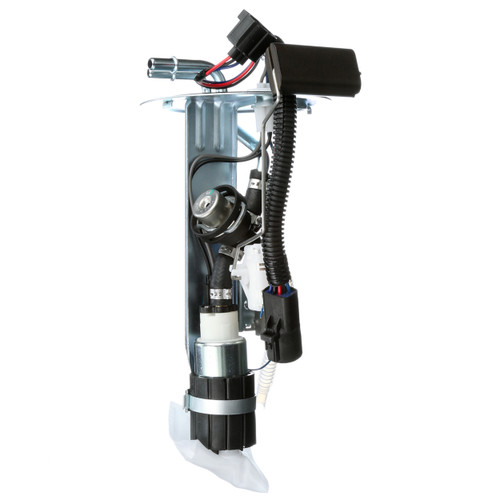

Delphi HP10227 fuel pump and sender assembly for the 1999 Ford Ranger 4-cylinder 2.5L, V6 3.0L or 4.0L moves fuel from the tank to the engine and carries the fuel-level float. This Delphi fuel pump is built to OE standards.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never contact the tank, which avoids noise and vibration while driving
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw, so less load on the vehicle's electrical system
- Each assembly is validated and tested
Quick facts
- Part: Delphi HP10227 fuel pump and sender assembly
- Fits: 1999 Ford Ranger 4-cylinder 2.5L, V6 3.0L or 4.0L
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the pump or float is worn. Before you replace this assembly, rule out a blown fuse or relay and damaged wiring, since a fault there can look much the same.
Fits
This is a direct-fit 1999 Ford Ranger fuel pump for the 4-cylinder 2.5L, V6 3.0L or 4.0L engine.
Specifications
- Quantity per vehicle: 1
- Construction: hanger assembly with float arm
- Condition: New
In the box

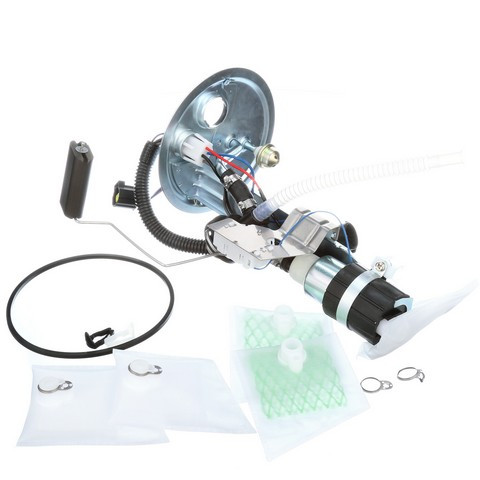

One fuel pump and sender assembly with float arm, seal, two fuel line retainers, two retainer clips, four metal clips and an instruction sheet. This listing holds one assembly, and the vehicle takes one.
Installation notes
- An instruction sheet comes with the assembly.
- Check and clean the fuel tank before installing it.
Interchange: 950-0173 · 951-0008 · 953-4130 · XL5Z 9H307-DA · XL5Z 9H307-DH
4011099 · E2261S · E2471 · DHP10227 · 69134 · P74890S · PFS1006 · C0072H · A30174 · SP1113 · SP2261H · USEP2261S
This part cross-references / interchanges with the following part numbers:
4011099, E2261S, E2471, DHP10227, 69134, P74890S, 950-0173, 951-0008, 953-4130, XL5Z 9H307-DA, XL5Z 9H307-DH, PFS1006, C0072H, A30174, SP1113, SP2261H, USEP2261S
Frequently Asked Questions
Does the Delphi HP10227 fit the 1999 Ford Ranger with the V6 4.0L?
Yes. Delphi HP10227 fits the 1999 Ford Ranger with the 4-cylinder 2.5L, V6 3.0L or 4.0L engine.
Does this Delphi fuel pump assembly come with the float arm and seal?
Yes. It includes the float arm, a seal, two fuel line retainers, two retainer clips, four metal clips and an instruction sheet.
Do the metal tubes on this fuel pump and sender assembly touch the tank?
No. On the Delphi HP10227 the metal tubes are routed so they do not contact the tank at any point, which avoids noise and vibration while driving.
Can a wrong gas gauge reading come from the float on this assembly?
It can, if the float is worn or does not hold its position. This assembly is set for empty float height and float retention to give a correct gauge reading.
Should I clean the fuel tank when installing this fuel pump?
Yes, check and clean the tank before installing the new assembly; an instruction sheet comes in the box.
