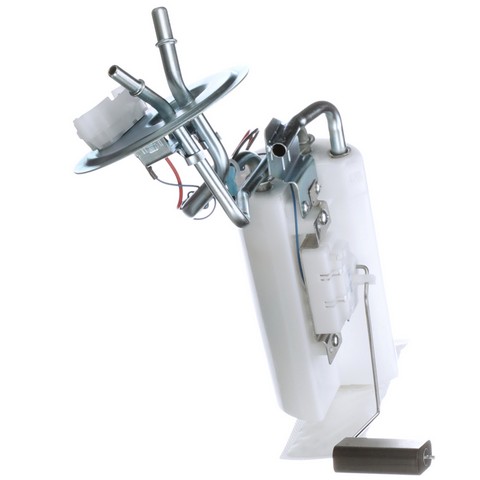

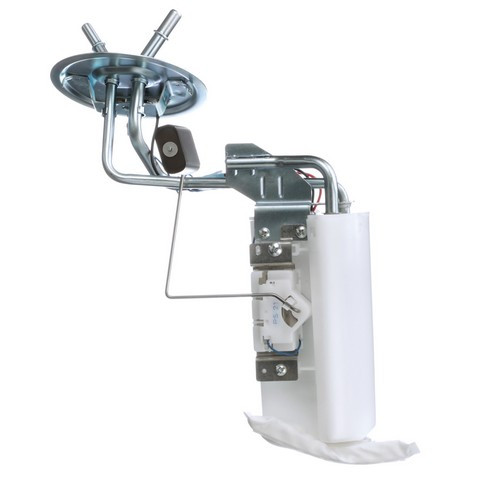

Delphi HP10274 fuel pump hanger for the 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles supports the fuel delivery parts and float arm inside the fuel tank. Its empty float height and float retention match OE specifications, so the gas gauge reads correctly.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes are routed so they never touch the tank, which removes noise and vibration during operation
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested for its application
Quick facts
- Part: Delphi HP10274 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles
An inaccurate gas gauge, hard starting or stalling can mean the hanger is worn, though a clogged fuel filter or a faulty fuel pump relay can be behind them too, so rule those out before you replace it. The tank takes one hanger.
Fits
The 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L, the 1990-1991 F-250 6-cylinder 4.9L, V8 5.8L or 7.5L, the 1991 F-250 V8 5.0L and the 1990-1991 F-350 6-cylinder 4.9L, V8 5.8L or 7.5L all fit this fuel pump hanger, and so do other vehicles. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
- Quantity per vehicle: 1
- Float arm: included
In the box

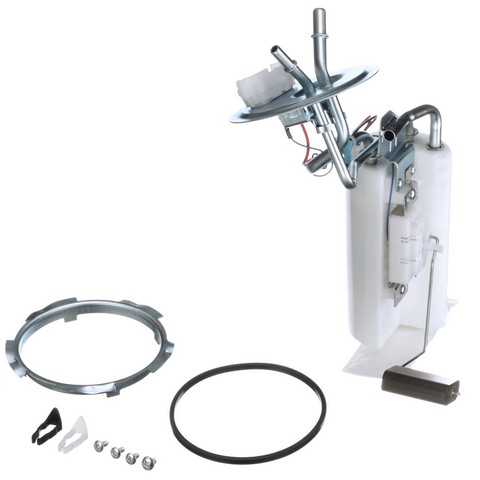

One fuel pump hanger with float arm, lock ring, retainers, screws, seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the hanger.
- An instruction sheet comes with the part for the steps.
Interchange: 953-3004 · F4TZ 9A407-P
4011020 · E2059MN · DHP10274 · 67000 · P74107 · AFS0022P · RE0022P · RE0147S · A23000 · A46107 · SP39B1H · USEP12304M
This part cross-references / interchanges with the following part numbers:
4011020, E2059MN, DHP10274, 67000, P74107, 953-3004, AFS0022P, RE0022P, RE0147S, F4TZ 9A407-P, A23000, A46107, SP39B1H, USEP12304M
Frequently Asked Questions
Is the Delphi HP10274 fuel pump hanger right for a 1990-1991 Ford F-250 with the V8 5.8L?
Yes. Delphi HP10274 fits the 1990-1991 Ford F-250 with the 6-cylinder 4.9L, V8 5.8L or V8 7.5L, and the 1991 F-250 with the V8 5.0L.
Does this fuel pump hanger assembly come with a lock ring and seal?
Yes. Delphi HP10274 comes with the float arm, lock ring, retainers, screws, seal and an instruction sheet.
What is the float arm on this hanger set to?
Empty float height and float retention are set to OE specifications, so the gas gauge shows the right fuel level.
Can a worn fuel pump hanger make the gas gauge read wrong?
Yes. A wrong gauge reading, hard starting or stalling can mean a worn hanger, and a shop can test the fuel system to confirm.
Do I need to clean the fuel tank before installing this Delphi hanger?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with the part for the steps.
