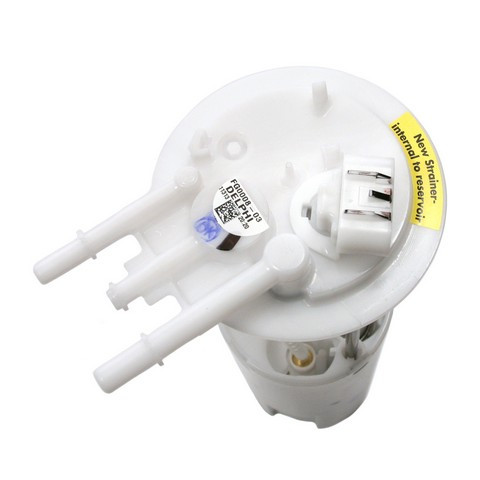

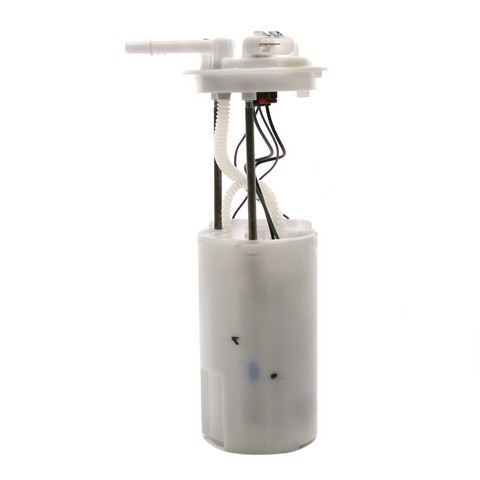

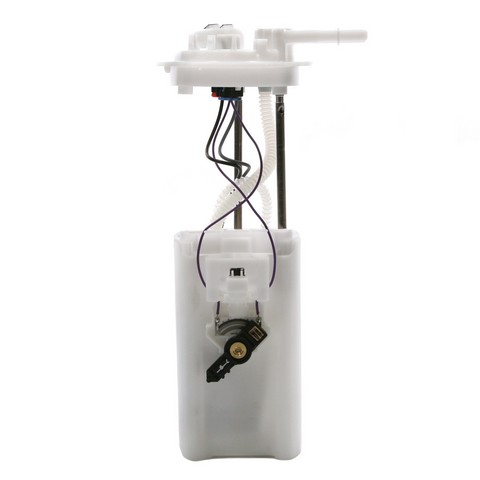

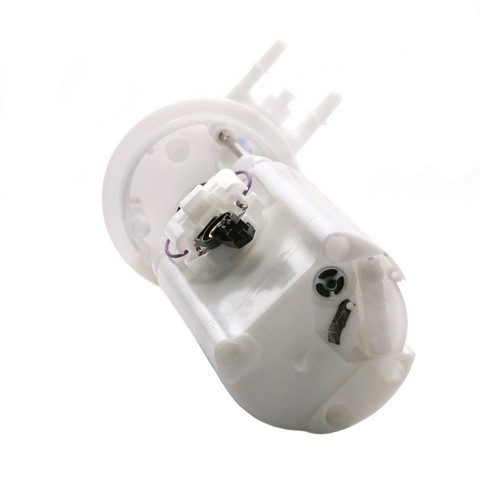

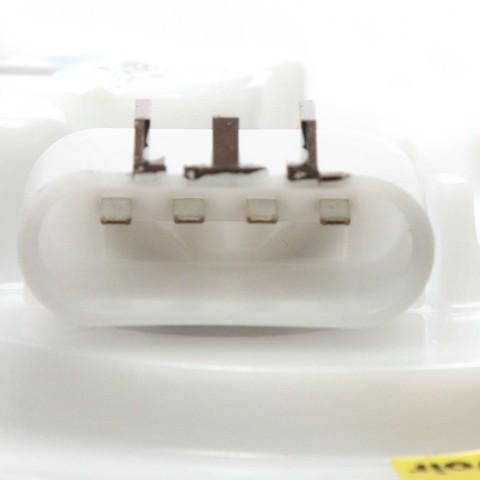

Delphi FG0008 fuel pump module for the 1995-1996 Buick Riviera V6 3.8L and other vehicles delivers fuel from the tank to the engine. It is also called a fuel pump assembly and is built to Delphi's OE standards, with float height and float retention that match OE specifications.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG0008 fuel pump module
- Also called: fuel pump assembly
- Fits: 1995-1996 Buick Riviera V6 3.8L and other vehicles
- Condition: New
A failing fuel pump module can show up as hard starting, stalling or a gas gauge that reads wrong. Before you replace the module, rule out a blown fuse, a weak relay or a clogged fuel filter, which can produce similar symptoms.
Fits
This module fits the 1995-1996 Buick Riviera V6 3.8L and the 1995-1996 Oldsmobile Aurora V8 4.0L. Both cars take a single module.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box

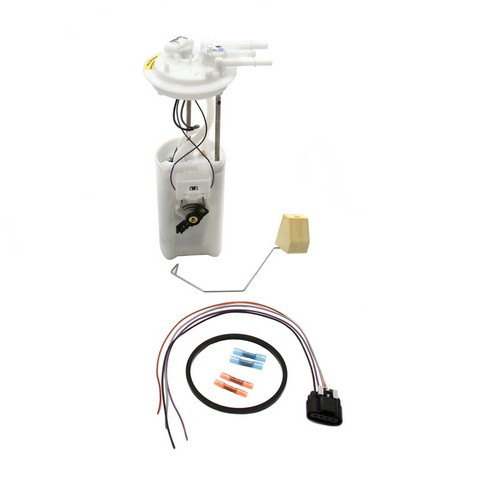

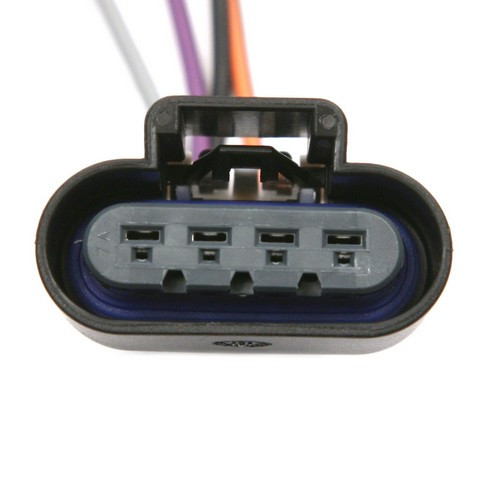

One fuel pump module with float arm, seal, splices, wire harness and instruction sheet.
Installation notes
- An instruction sheet comes with the module.
- Check and clean the fuel tank during installation.
Interchange: 43-909 · 953-0005 · 953-5007
MU1625 · 4010060 · E3912M · P95126E · DFG0008 · P257M · 67322 · P74690M · AFS0413S · RE0413 · RE0413S · 19153727 · 25029709 · 25363936 · EFP909M · C0324M · A30100 · SP49909M · USEP3912M
This part cross-references / interchanges with the following part numbers:
43-909, MU1625, 4010060, E3912M, P95126E, DFG0008, P257M, 67322, P74690M, 953-0005, 953-5007, AFS0413S, RE0413, RE0413S, 19153727, 25029709, 25363936, EFP909M, C0324M, A30100, SP49909M, USEP3912M
Frequently Asked Questions
Does the Delphi fuel pump module fit the 1995-1996 Oldsmobile Aurora V8 4.0L?
Yes. Delphi FG0008 is listed for the 1995-1996 Oldsmobile Aurora V8 4.0L, and that car takes a single module.
What comes with the Delphi fuel pump module assembly?
Delphi FG0008 comes with the float arm, seal, splices, wire harness and an instruction sheet.
Does the Delphi fuel module help the gas gauge read correctly?
Yes. Delphi FG0008 has an empty float height and float retention that match OE specifications, which supports a correct gas gauge reading.
Should I clean the tank before fitting this Delphi module?
Yes. Check and clean the fuel tank as part of the installation, and have a shop do it if you are not set up to work on fuel systems.
Does 953-5007 cross-reference to the Delphi FG0008 fuel pump module?
Yes. 953-5007 is one of the interchange numbers listed for Delphi FG0008, along with 43-909 and 953-0005.
