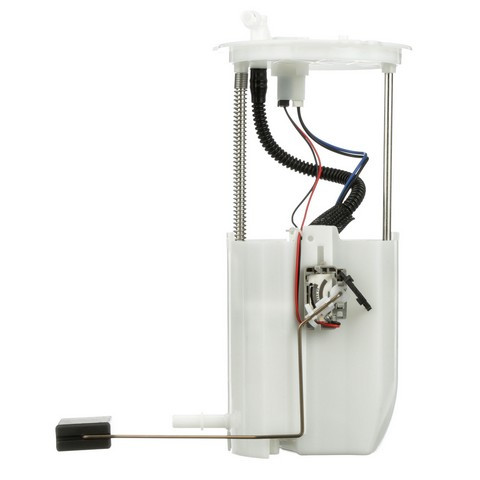

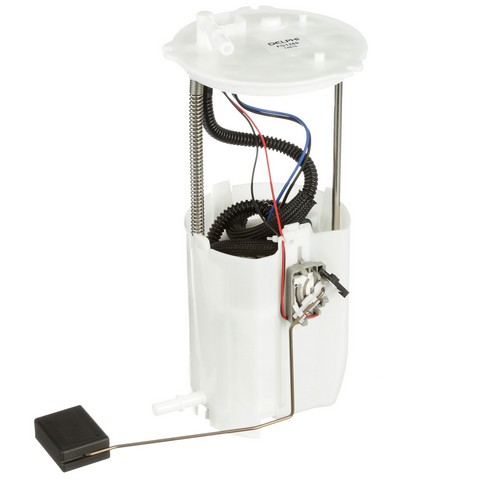

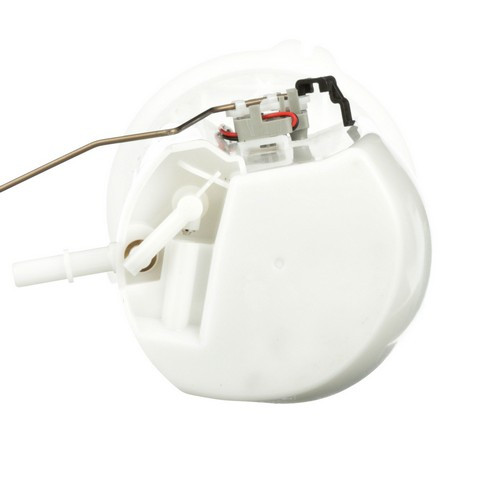

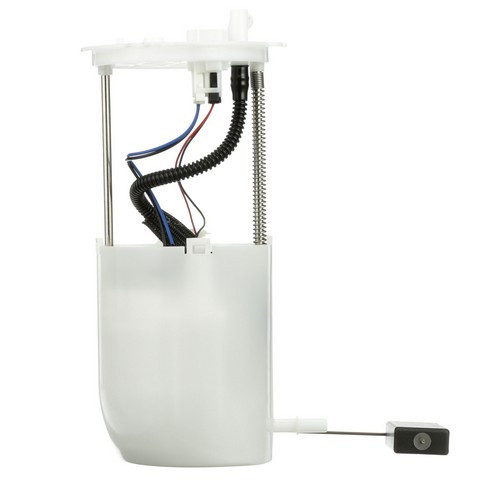

Delphi FG1269 fuel pump module for the 2007-2012 Mazda CX-7 4-cylinder 2.3L moves fuel from the tank to the engine. The Delphi fuel pump module assembly, also called a fuel pump assembly, comes with a float arm that tracks the fuel level for the gas gauge. It is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Lower failure rates due to its design and durability
Quick facts
- Part: Delphi FG1269 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2012 Mazda CX-7 4-cylinder 2.3L
- Condition: New
A hard start, stalling or a gas gauge that reads wrong can mean the module is failing. A blown fuse can look the same, so look at the fuel pump fuse with the engine off before you replace anything. If the module is the cause, this one replaces it.
Fits
It fits the 2007-2012 Mazda CX-7 4-cylinder 2.3L, which takes one module.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box

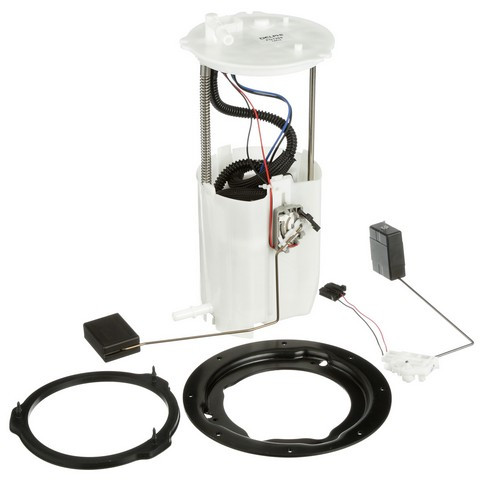

One fuel pump module with float arm, seal, lock ring and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet covers the installation steps.
Interchange: L33L-13-35ZA · L3M8-13-ZE1 · L3M8-13-ZE1A · LFB6-13-ZE1
4010649 · E8750M · DFG1269 · P76622M · A33103 · C0671M · SP4026M · USEP8750M
This part cross-references / interchanges with the following part numbers:
4010649, E8750M, DFG1269, P76622M, A33103, L33L-13-35ZA, L3M8-13-ZE1, L3M8-13-ZE1A, LFB6-13-ZE1, C0671M, SP4026M, USEP8750M
Frequently Asked Questions
Is this Delphi fuel pump module right for the 2007-2012 Mazda CX-7 4-cylinder 2.3L?
Yes. Delphi FG1269 is matched to the 2007-2012 Mazda CX-7 4-cylinder 2.3L, and that engine takes one module.
Does this Delphi fuel module come with a float arm and lock ring?
Yes. Delphi FG1269 comes with the float arm, seal, lock ring and an instruction sheet.
Does the Delphi module draw less load on the electrical system?
Yes. This fuel pump module has a lower amperage draw, which puts less load on the vehicle's electrical system.
Does the float on this fuel pump module affect the gas gauge?
Yes. This module's empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Do I need to clean the tank before installing Delphi FG1269?
Yes. Check and clean the fuel tank before installing the module. The included instruction sheet covers the steps.
