Delphi FG1051 fuel pump module for the 2008-2010 Dodge Avenger V6 2.7L, the 2011-2014 Avenger V6 3.6L and other vehicles delivers fuel from the tank to the engine. It is also called a fuel pump assembly, and it is built to Delphi's OE standards.
- Empty float height and float retention support correct gas gauge readings
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG1051 fuel pump module
- Also called: fuel pump assembly
- Fits: 2008-2010 Dodge Avenger V6 2.7L, the 2011-2014 Avenger V6 3.6L and other vehicles
- Condition: New
Hard starting, stalling, sputtering under load or an erratic fuel gauge can mean the module is wearing out. Before you replace it, rule out the fuel pump relay, the fuse and the wiring, since a fault in any of them can look much the same from the driver's seat.
Fits
The same part number also fits the 2011-2014 Chrysler 200 V6 3.6L and the 2007-2010 Chrysler Sebring V6 2.7L. The quantity is one per fuel tank.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: V6-2.7L, V6-3.6L
Build and materials
- Type: fuel pump module assembly with float arm
- Float height and retention: match OE specifications
- Condition: New
In the box

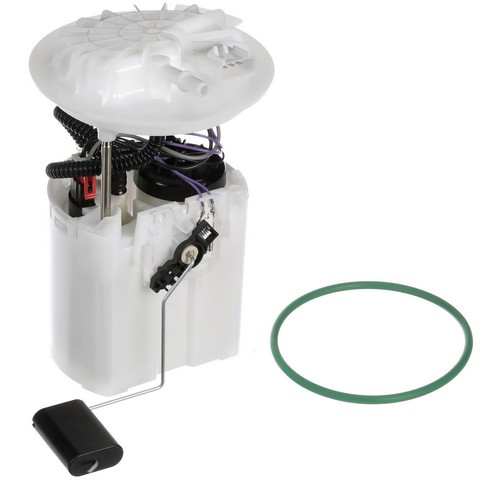

One fuel pump module assembly with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before fitting the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 4809 482AA · 6800 4936AC · 6800 4936AD · 6800 4936AE · 6813 8243AA · 6813 8243AB · 6813 8243AC
4010661 · 4011372 · E7210M · E7217M · CFG1051 · 66111 · P77010M · P77013M · RL004936AC · A30005 · SP7194M · SP7203M · USEP7217M · FP22046S
This part cross-references / interchanges with the following part numbers:
4010661, 4011372, E7210M, E7217M, CFG1051, 66111, P77010M, P77013M, 4809 482AA, 6800 4936AC, 6800 4936AD, 6800 4936AE, 6813 8243AA, 6813 8243AB, 6813 8243AC, RL004936AC, A30005, SP7194M, SP7203M, USEP7217M, FP22046S
Frequently Asked Questions
Is this Delphi fuel pump module assembly right for the 2011-2014 Chrysler 200 V6 3.6L?
Yes. Delphi FG1051 is listed for the 2011-2014 Chrysler 200 V6 3.6L.
Will the Delphi fuel pump module work in a 2007-2010 Chrysler Sebring V6 2.7L?
Yes. Delphi FG1051 is listed for the 2007-2010 Chrysler Sebring V6 2.7L, and it takes one module.
What comes with the Delphi fuel module?
The kit is one fuel pump module assembly with a float arm, a seal and an instruction sheet.
Does the Delphi module match the original float height?
Yes. On the Delphi FG1051, empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Should I clean the fuel tank before installing this fuel pump module?
Yes. Check and clean the fuel tank before you fit the new module; the instruction sheet in the box covers the installation steps.
