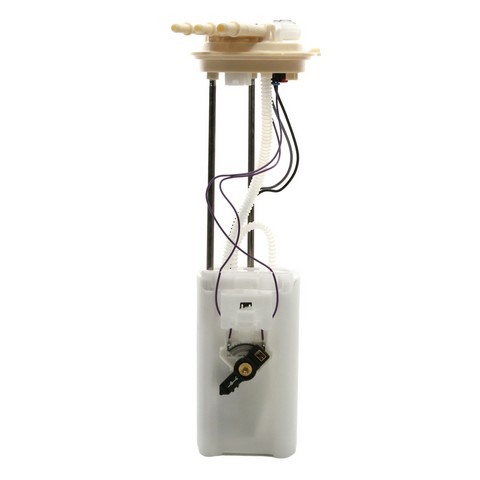

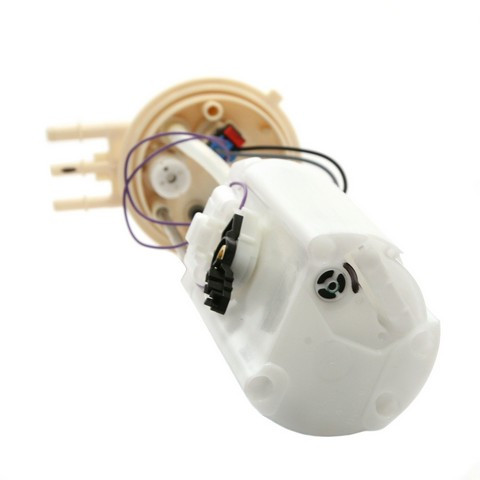

Delphi FG0068 fuel pump module for the 1997-1999 Chevrolet Astro V6 4.3L and other vehicles pumps fuel out of the tank and sends it to the engine. Delphi is a global OE manufacturer, and all its fuel pumps are built to Delphi's OE standards.
- Empty float height and float retention are set for correct gas gauge readings
- Lower amperage draw puts less load on the vehicle's electrical system
- The Delphi fuel pump module assembly is validated, tested and matched to its vehicle application
- Design and durability give lower failure rates
Quick facts
- Part: Delphi FG0068 fuel pump module
- Also called: fuel pump assembly
- Fits: 1997-1999 Chevrolet Astro V6 4.3L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can come from a worn pump or float, but a blown fuse, damaged wiring or the gauge itself can be behind some of them. With the engine off, look at the fuel pump fuse first, and leave fuel pressure testing to a shop.
Fits
This module fits the 1997-1999 Chevrolet Astro V6 4.3L and the 1997-1999 GMC Safari V6 4.3L. Each of them takes one, and this listing is one module. Its empty float height and float retention match OE specifications.
Specifications
- Quantity per vehicle: 1
- Engine: V6 4.3L
- Condition: New
In the box

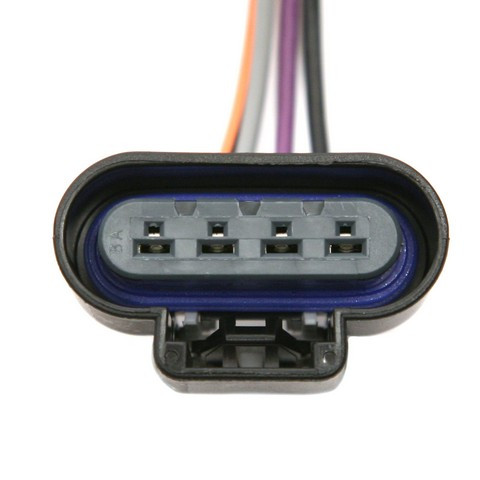

One fuel pump module with float arm, seal, splices, wire harness and an instruction sheet.
Installation notes
- The instruction sheet in the box covers the steps.
- Check and clean the fuel tank before the new module goes in.
Frequently Asked Questions
Does the Delphi fuel pump module FG0068 fit the 1997-1999 GMC Safari V6 4.3L?
Yes. Delphi FG0068 fits the 1997-1999 GMC Safari V6 4.3L and the 1997-1999 Chevrolet Astro V6 4.3L, and each takes one.
What comes with the Delphi fuel module?
Delphi FG0068 includes the fuel pump module with a float arm, seal, splices, wire harness and an instruction sheet.
Does the float on this Delphi module match OE specifications?
Yes. Its empty float height and float retention match OE specifications, so the gas gauge reads correctly.
Can a worn fuel pump assembly make the gas gauge read wrong?
It can. The float arm position sets the gauge reading, so a stuck or misplaced float can throw it off, though other faults can do the same.
Do I need to clean the tank before installing fuel pump module FG0068?
Yes. The fuel tank should be checked and cleaned before the new Delphi FG0068 goes in, and the instruction sheet in the box covers the steps.
