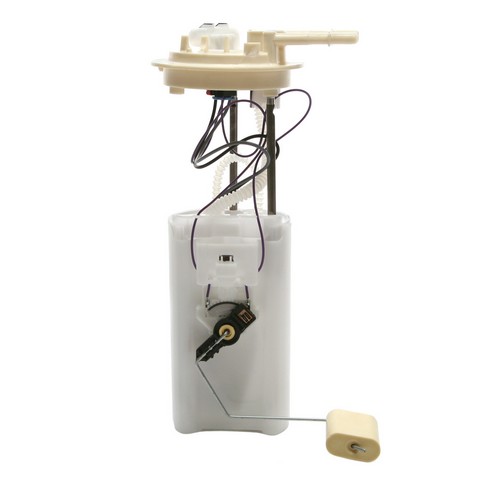

Delphi FG0096 fuel pump module for the 1997 Cadillac DeVille V8 4.6L and other vehicles sends fuel from inside the tank to the engine. It holds the electric pump, strainer and float arm in one in-tank unit built to Delphi's OE standards.
- Empty float height and float retention are set to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0096 fuel pump module
- Also called: fuel pump assembly
- Fits: 1997 Cadillac DeVille V8 4.6L and other vehicles
- Material: Plastic housing
- Condition: New
A hard start, stalling or an erratic fuel gauge can mean the module is failing, but a wiring fault or a clogged filter can look the same, so find the cause before replacing it. With the engine off, look the wiring connector over for damage or corrosion, and leave fuel pressure testing to a shop. One module goes in the tank, so one is all a car needs.
Fits
This listing is one module for the 1997 Cadillac DeVille V8 4.6L, the 1997 Cadillac Eldorado V8 4.6L and the 1997 Cadillac Seville V8 4.6L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Fit type: specific fit

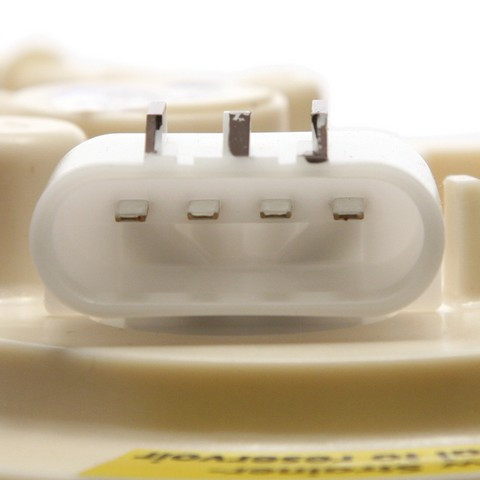

- Terminals: 4 male blade terminals
- Wires: 4

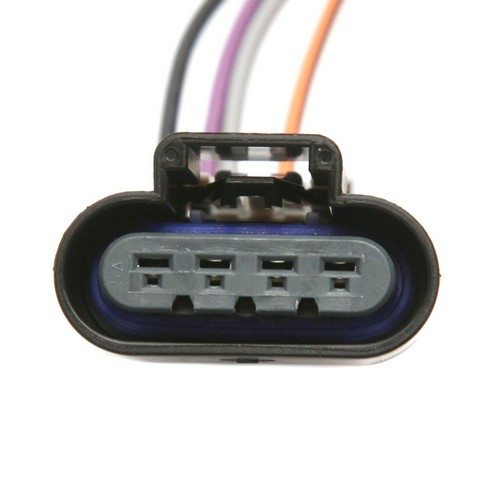

- Connector: 1 oval, female
- Outlets: 3, quick connect type
Build and materials
- Pump type: electric, in-tank
- Fuel type: gas
- Strainer: external, included
- Housing material: plastic
- Condition: new
- Country of origin: Thailand
In the box

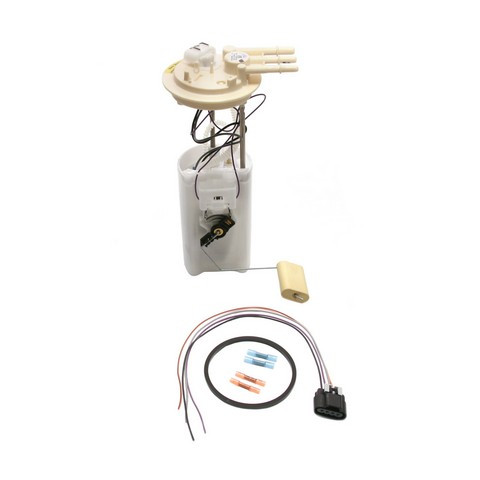

One fuel pump module with float arm, seal, splices, wire harness and an instruction sheet. Mounting hardware, a lock ring and a regulator are not included, and old hardware may not be reusable, so plan on new pieces.
Installation notes
- An instruction sheet comes with the module for the installation steps.
- Check and clean the fuel tank before installing the module.
Interchange: 953-5053
MU156 · MU1624 · 4010098 · E3935M · DFG0096 · 67342 · P74777M · AFS0422S · RE0422S · 19153726 · 19332090 · 25314609 · 25363935 · EFP856M · 1AMFP00181 · A27031 · SP3935M · USEP3935M
This part cross-references / interchanges with the following part numbers:
MU156, MU1624, 4010098, E3935M, DFG0096, 67342, P74777M, 953-5053, AFS0422S, RE0422S, 19153726, 19332090, 25314609, 25363935, EFP856M, 1AMFP00181, A27031, SP3935M, USEP3935M
Frequently Asked Questions
Is a Delphi fuel pump module assembly right for the 1997 Cadillac Eldorado V8 4.6L?
Yes. Delphi FG0096 is listed for the 1997 Cadillac Eldorado V8 4.6L, and the car takes one module.
What does the Delphi fuel module include?
Delphi FG0096 comes with a float arm, seal, splices, wire harness and instruction sheet. A lock ring, mounting hardware and a regulator are not included.
Is the Delphi module an electric in-tank pump?
Yes. It is an electric pump that sits in the tank, with an external strainer, three outlets and a quick-connect outlet type, for gas engines.
How should I prepare the tank before fitting a Delphi fuel pump module?
Check and clean the fuel tank first, then follow the instruction sheet in the box for the installation steps.
Can an erratic fuel gauge point to a bad fuel pump assembly?
It can, since the float arm is part of this module and affects the gauge reading. A shop can test the module before you replace it.
