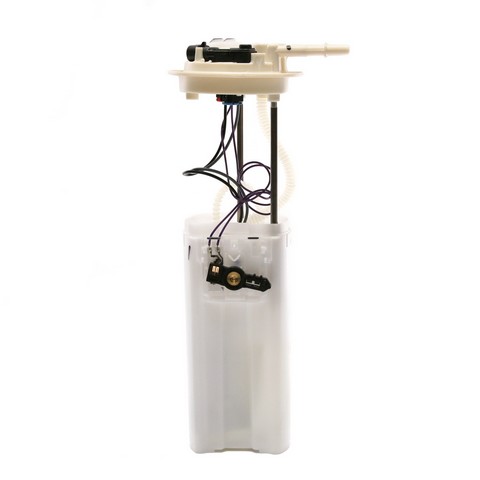

Delphi FG0158 fuel pump module for the 2001-2002 Chevrolet Express 3500 V8 5.7L or 8.1L and other vehicles delivers fuel from the tank to the engine. Shops also call it a fuel pump assembly.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested for the application it is matched to
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0158 fuel pump module
- Also called: fuel pump assembly
- Fits: 2001-2002 Chevrolet Express 3500 V8 5.7L or 8.1L and other vehicles
- Condition: New
Hard starting, stalling or an erratic fuel gauge can be signs of a worn fuel pump module. A clogged fuel filter, a bad relay or debris in the tank can be behind the same signs, so find the cause before you buy a new module.
Fits
This module is a direct-fit replacement for the 2001-2002 Chevrolet Express 3500 V8 5.7L or 8.1L and the 2001-2002 GMC Savana 3500 V8 5.7L or 8.1L, and each of them takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: V8-5.7L, V8-8.1L
Build and materials
- Type: module assembly with float arm
- Condition: New
In the box

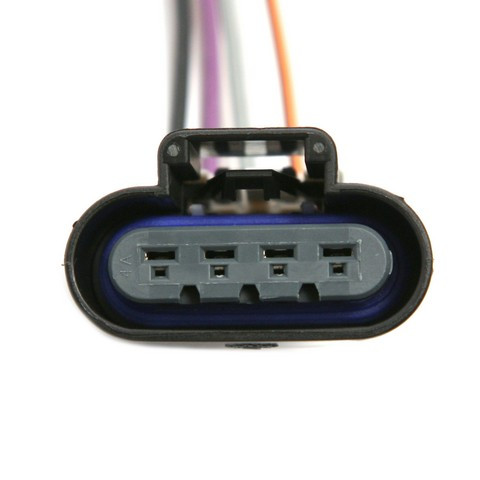

One fuel pump module with float arm, seal, splices, wire harness and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The installation steps are on the instruction sheet.
Interchange: 953-5083
MU1762 · MU234 · 4010276 · E3568M · DFG0158 · P74978M · AFS0885S · RE0885S · 19179594 · 19332075 · 19369894 · 25326140 · A27096 · SP61092M · USEP3568M
This part cross-references / interchanges with the following part numbers:
MU1762, MU234, 4010276, E3568M, DFG0158, P74978M, 953-5083, AFS0885S, RE0885S, 19179594, 19332075, 19369894, 25326140, A27096, SP61092M, USEP3568M
Frequently Asked Questions
Will this Delphi fuel pump module assembly fit the 2001-2002 GMC Savana 3500 V8 5.7L or 8.1L?
Yes. Delphi FG0158 fits the 2001-2002 GMC Savana 3500 with either the V8 5.7L or the V8 8.1L, and it takes one.
What comes with the Delphi fuel module?
The package holds the fuel pump module with float arm, seal, splices, wire harness and an instruction sheet.
Does the Delphi fuel pump module match the original float height?
Yes. Delphi FG0158 has an empty float height and float retention that match OE specifications, for a correct gas gauge reading.
How can I tell a fuel pump module is going bad?
Hard starting, stalling or an erratic fuel gauge can be signs of a failing module. A shop can test fuel pressure and the pump safely.
Do I need to prepare the fuel tank before installing this Delphi module?
Yes. Check and clean the fuel tank before installing, and follow the instruction sheet that comes with the part.
