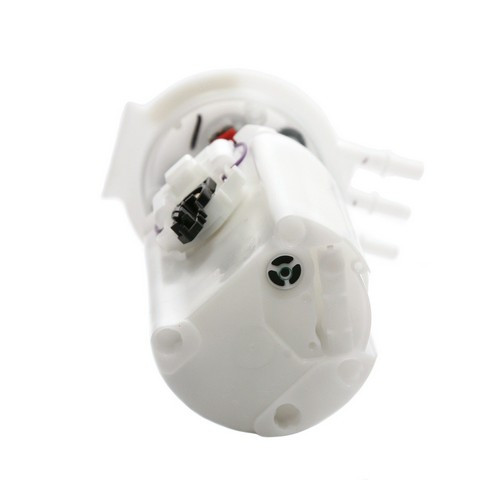

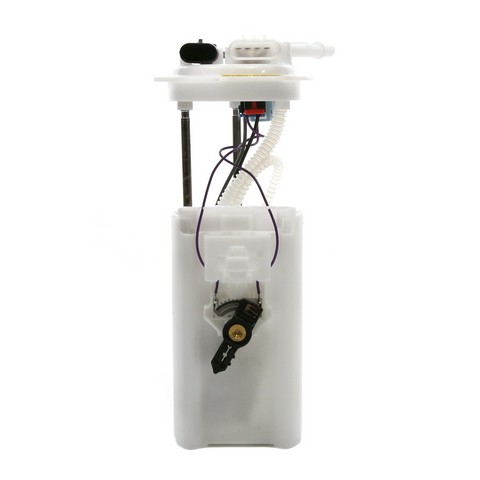

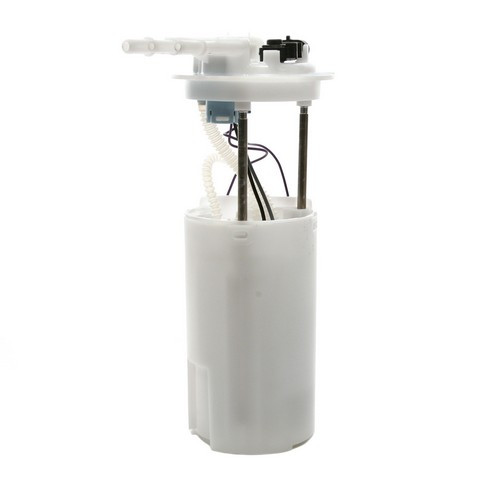

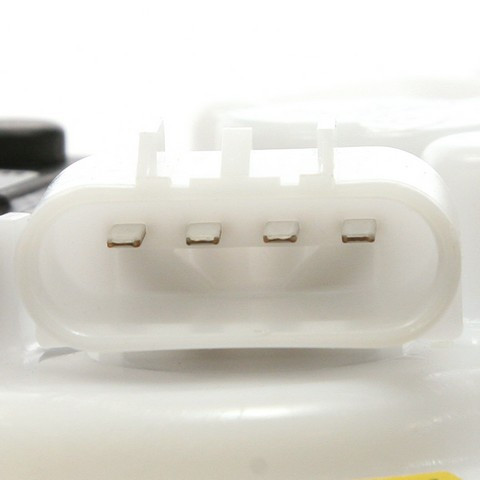

Delphi FG0268 fuel pump module for the 2001-2004 Pontiac Aztek V6 3.4L and other vehicles moves fuel from the tank to the engine. The module, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0268 fuel pump module
- Also called: fuel pump assembly
- Fits: 2001-2004 Pontiac Aztek V6 3.4L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can point to a failing fuel pump module. A clogged fuel filter, a bad fuel pump relay or a wiring fault can be behind those signs too, so track down the source before you buy.
Fits
This module fits the 2001-2004 Pontiac Aztek V6 3.4L and the 2002-2004 Buick Rendezvous V6 3.4L, and each of them takes one.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box

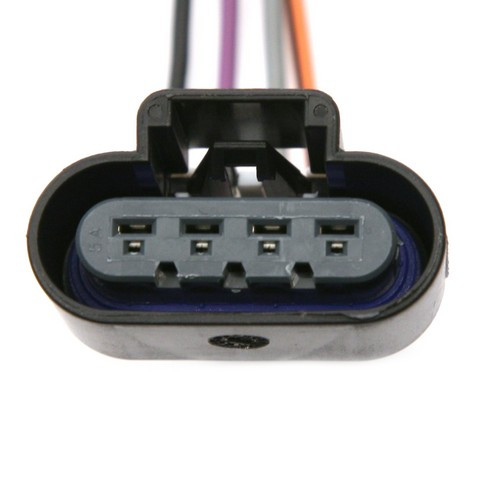

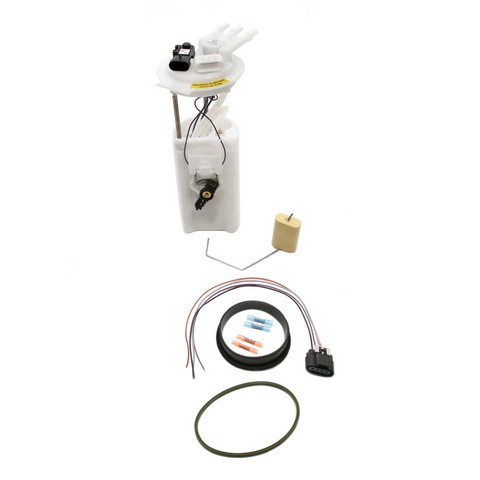

One fuel pump module with float arm, a seal, a splice kit and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the included instruction sheet for the steps.
This part cross-references / interchanges with the following part numbers:
MU1083, MU1820, MU221, 4010298, E3521M, DFG0268, F2532A, 67388, M2335288, P74967M, P75051M, 953-5110, 953-5118, RE0822S, 19169381, 25323787, 25344962, 25378843, 89047667, 1AMFP00120, MPA30115, C0184M, 402-P3521M, A30115, SP3521M, C5341016, USEP3521M
Frequently Asked Questions
Is the Delphi fuel pump module assembly FG0268 right for a 2002-2004 Buick Rendezvous V6 3.4L?
Yes. Delphi FG0268 fits the 2002-2004 Buick Rendezvous V6 3.4L and the 2001-2004 Pontiac Aztek V6 3.4L, and each takes one.
Does this Delphi fuel module come with a float arm and a splice kit?
Yes. This fuel pump module comes with its float arm, a seal, a splice kit and an instruction sheet.
Will the float on this Delphi fuel pump module give a correct gas gauge reading?
Yes. The empty float height and float retention match OE specifications for a correct gas gauge reading.
Can hard starting or stalling mean a fuel pump module is failing?
Yes, they can be signs of it, along with a gas gauge that reads wrong. A shop can test the pump, and a car that stalls should be looked at promptly.
Do I need to clean the tank when installing the Delphi FG0268 fuel pump module?
Yes. The fuel tank should be checked and cleaned first, and the instruction sheet that comes with Delphi FG0268 covers the steps.
