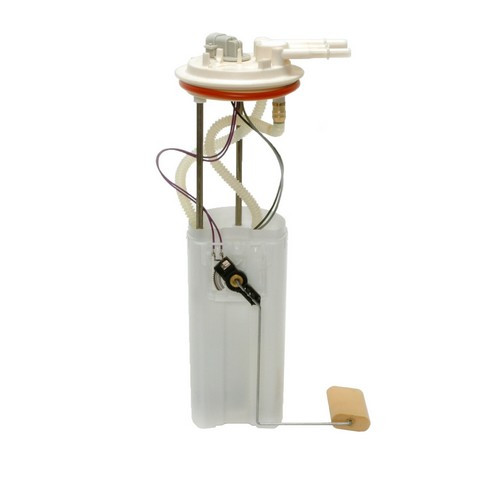

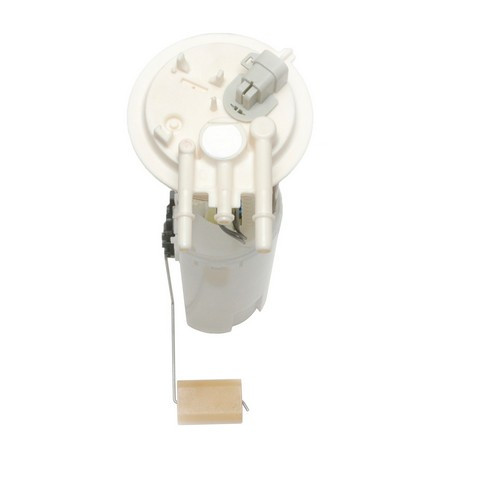

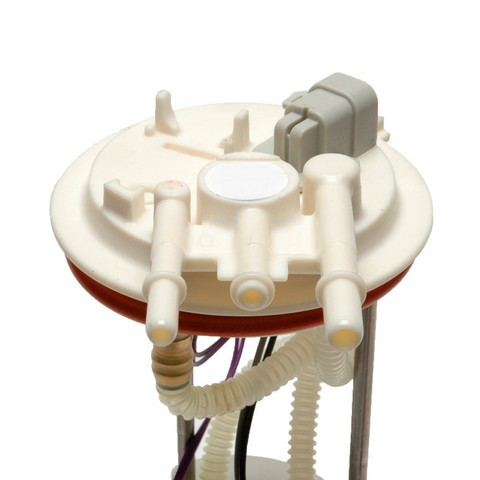

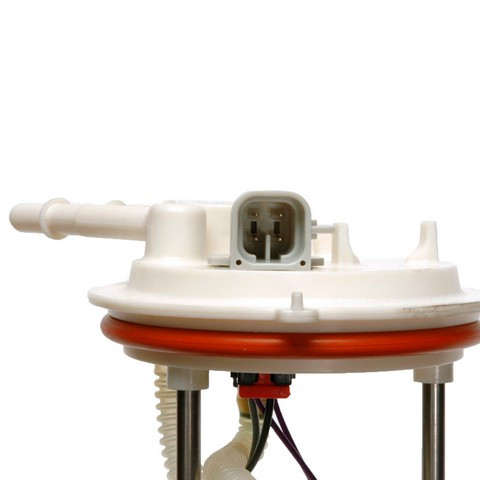

Delphi FG0329 fuel pump module for the 2003 Chevrolet Express 3500 V8 6.0L and other vehicles sends fuel from the tank to the engine. A float arm on the module reports the fuel level to the gauge.
- Empty float height and float retention for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0329 fuel pump module
- Also called: fuel pump assembly
- Fits: 2003 Chevrolet Express 3500 V8 6.0L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean a worn fuel pump assembly. A clogged fuel filter, damaged wiring or a failed relay can be behind these symptoms too, so track down the cause before you buy a module. This listing is one module.
Fits
It fits the 2003 Chevrolet Express 3500 V8 6.0L and the 2003 GMC Savana 3500 V8 6.0L; each takes one. Built to Delphi's OE standards, the module's empty float height and float retention match OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V8-6.0L
Build and materials
- Float arm: included
- Seal: included
- Condition: New
In the box
One fuel pump module assembly with float arm, seal and instruction sheet.
Installation notes
- An instruction sheet comes with the module for the installation steps.
- Check and clean the fuel tank before installing the module.
Interchange: 953-5115
MU1143 · MU1230 · 4011158 · E3647M · E3674M · DFG0329 · 67425 · P75015M · P76349M · RE0888S · RE0889S · 19152153 · 25348517 · 25369308 · 28074106 · C0243M · A30291 · SP3574M · SP6048M
This part cross-references / interchanges with the following part numbers:
MU1143, MU1230, 4011158, E3647M, E3674M, DFG0329, 67425, P75015M, P76349M, 953-5115, RE0888S, RE0889S, 19152153, 25348517, 25369308, 28074106, C0243M, A30291, SP3574M, SP6048M
Frequently Asked Questions
Does the Delphi fuel pump module fit the 2003 GMC Savana 3500 V8 6.0L?
Yes. Delphi FG0329 fits the 2003 GMC Savana 3500 V8 6.0L, and that vehicle takes one module.
What comes with this Delphi fuel pump module assembly?
Delphi FG0329 comes as a module assembly with a float arm, a seal and an instruction sheet.
Does the float on this Delphi fuel module give a correct gauge reading?
Its empty float height and float retention match OE specifications, which is intended to give a correct gas gauge reading.
Does this Delphi module put less load on the electrical system?
Yes. This fuel pump module has a lower amperage draw, so it puts less load on the vehicle's electrical system.
Should I clean the tank before installing the FG0329?
Yes. Check and clean the fuel tank before installing Delphi FG0329, and use the instruction sheet that comes with the module for the steps.
