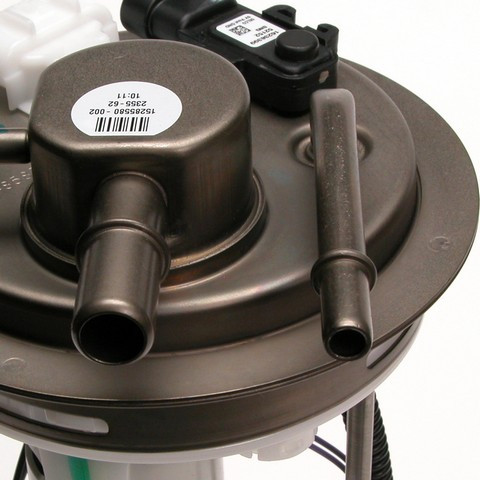

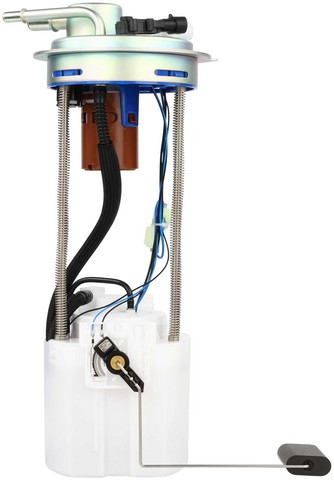

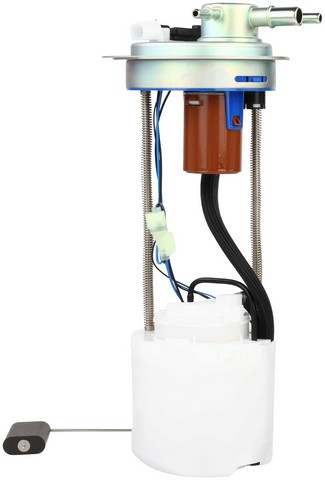

Delphi FG0392 fuel pump module for the 2004-2006 Chevrolet Silverado 1500 V8 4.8L, 5.3L or 6.0L and other vehicles delivers fuel from the tank to the engine. Also listed as a fuel pump assembly, it is built to Delphi's OE standards.

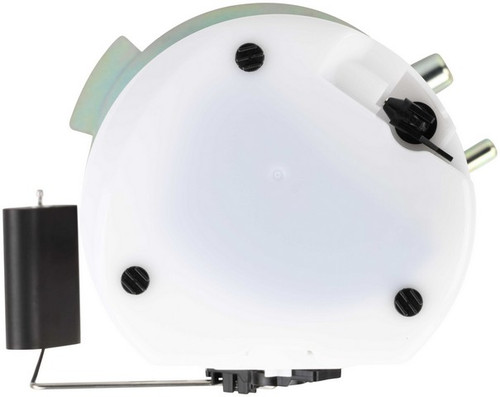

- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability behind lower failure rates
Quick facts
- Part: Delphi FG0392 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2006 Chevrolet Silverado 1500 V8 4.8L, 5.3L or 6.0L and other vehicles
- Condition: New
A weak module can show up as hard starting, stumbling under load or a fuel gauge that reads wrong. Before you replace it, rule out a blown fuse, a bad relay and wiring trouble, since each can look like a failing pump; a shop can test fuel pressure safely. If the module is the cause, this one replaces it.
Fits
The module is listed for several Chevrolet and GMC models, including the 2004-2006 GMC Sierra 1500 V8 4.8L, 5.3L or 6.0L and the 2007 Chevrolet Silverado 1500 Classic V8 4.8L, 5.3L or 6.0L. If your vehicle is not one of these, look up your own year and engine in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm, one seal and one instruction sheet. This listing holds one module, and the vehicle takes one.
Installation notes
- Check and clean the fuel tank during installation to avoid unnecessary returns.
- The instruction sheet in the box covers the installation steps.
Frequently Asked Questions
Does the Delphi FG0392 fit the 2004-2006 GMC Sierra 1500 V8 4.8L, 5.3L or 6.0L?
Yes. Delphi FG0392 is listed for the 2004-2006 GMC Sierra 1500 with the V8 4.8L, 5.3L or 6.0L, and the vehicle takes one module.
Does the Delphi fuel pump module assembly come with a float arm and seal?
Yes. Delphi FG0392 comes with the float arm, a seal and an instruction sheet. This listing is one module.
Does the Delphi fuel module have the right float height for an accurate fuel gauge?
Yes. Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Does the tank need cleaning before this Delphi fuel pump module goes in?
Yes. The tank should be checked and cleaned during installation, and the instruction sheet with Delphi FG0392 covers the steps.
Does this Delphi module put less load on the electrical system?
Yes. This Delphi module's lower amperage draws less load on the vehicle's electrical system.
