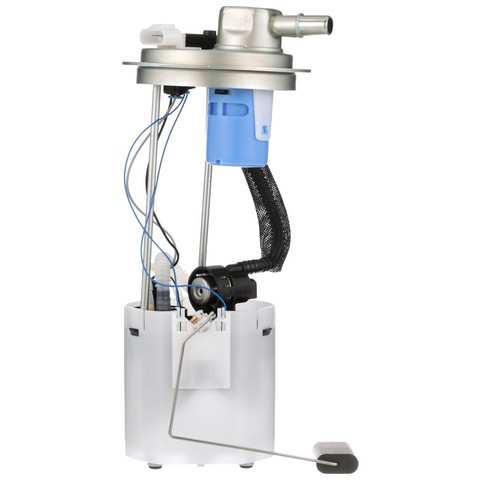

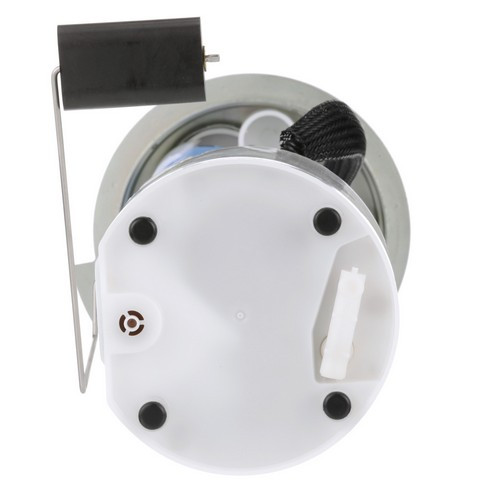

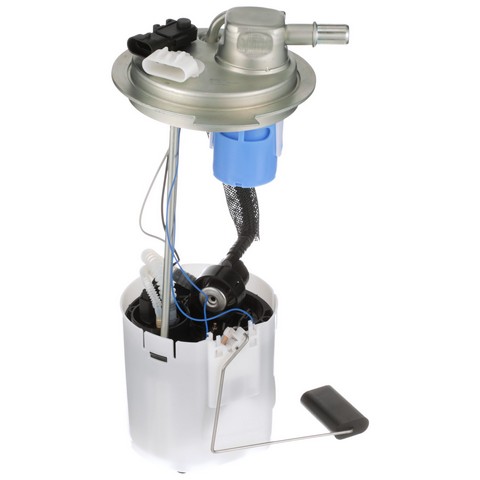

Delphi FG0393 fuel pump module for the 2004-2007 Hummer H2 V8 6.0L moves fuel from the tank to the engine. Built to OE standards, this Delphi fuel pump module assembly also carries the float that feeds the gas gauge.
- Empty float height and float retention match specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Design and durability aimed at lower failure rates
- Validated, tested and matched to the right vehicle application
Quick facts
- Part: Delphi FG0393 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2007 Hummer H2 V8 6.0L
- Condition: New
Hard starting, sputtering, stalling or a gas gauge that reads wrong can mean the fuel pump assembly is wearing out. Those symptoms have other possible sources, such as a fuse, a relay or dirty fuel, so with the engine off, look at the fuse and relay first. A shop can run any test that needs the engine running or an open fuel line.
Fits
This listing is one fuel pump module, and the 2004-2007 Hummer H2 V8 6.0L takes one.
Specifications
- Quantity per vehicle: 1
- Engine: V8-6.0L
- Construction: module assembly with float arm
- Condition: New
In the box
One fuel pump module with float arm, one seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank when installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: M10027 · MU1423 · TS1016 · 4010456 · E3689M · DFG0393 · 67575 · P76147M · 19133483 · 19133484 · 19167485 · 19167486 · 25363855 · 25376491 · 25384415 · 25384416 · 88965378 · 88965386 · C0253M · A30309 · SP6018M · SP6019M
This part cross-references / interchanges with the following part numbers:
M10027, MU1423, TS1016, 4010456, E3689M, DFG0393, 67575, P76147M, 19133483, 19133484, 19167485, 19167486, 25363855, 25376491, 25384415, 25384416, 88965378, 88965386, C0253M, A30309, SP6018M, SP6019M
Frequently Asked Questions
Is the Delphi FG0393 right for the 2004-2007 Hummer H2 V8 6.0L?
Yes. Delphi FG0393 is a fuel pump module for the 2004-2007 Hummer H2 V8 6.0L, and that vehicle takes one.
Does the Delphi module come with a float arm and seal?
Yes. The package holds the fuel pump module with its float arm, a seal and an instruction sheet.
Will the gas gauge read correctly with this Delphi fuel pump module?
Yes. Delphi FG0393 has an empty float height and float retention that match OE specifications, which gives a correct gas gauge reading.
Does this Delphi fuel module need the tank cleaned first?
Yes. Always check and clean the fuel tank when fitting this module. The included instruction sheet covers the installation steps.
Does the lower amperage on this fuel pump module matter?
Yes. This fuel pump module has a lower amperage draw, so it puts less load on the vehicle's electrical system.
