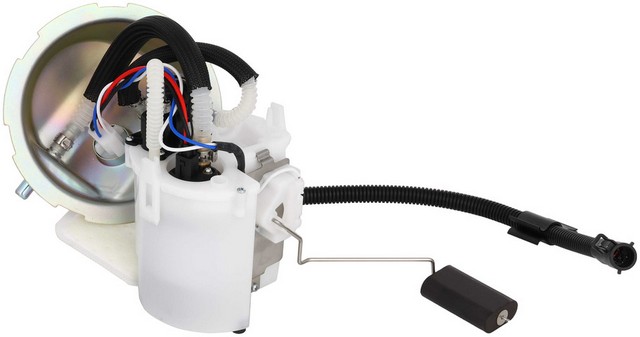

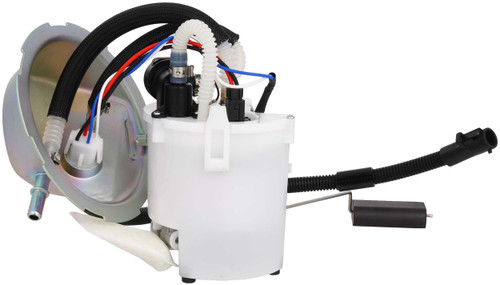

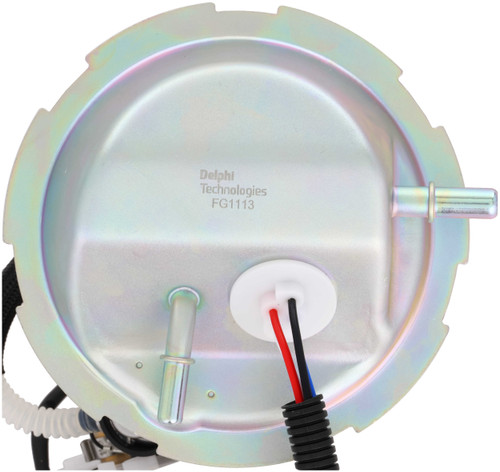

Delphi FG1113 fuel pump module for the 2008 Ford Focus 4-cylinder 2.0L sends fuel from the tank toward the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards and includes the float arm that sets the gas gauge reading.
- Empty float height and float retention set for correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1113 fuel pump module
- Also called: fuel pump assembly
- Fits: 2008 Ford Focus 4-cylinder 2.0L
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the pump or float is worn, but other fuel-system faults can show up the same way. Before you replace a fuel pump assembly, look at the fuel pump fuse with the engine off, and leave pressure and electrical tests to a shop.
Fits
This is a direct-fit replacement for the 2008 Ford Focus 4-cylinder 2.0L, which takes one module.
Specifications
- Quantity per vehicle: 1
- Includes: float arm and seal
- Condition: New
In the box

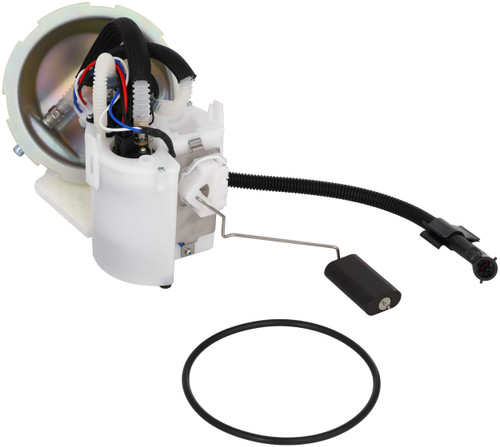

One fuel pump module assembly with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- An instruction sheet comes with the part for the steps.
Interchange: 8S4Z 9H307-A · 8S4Z 9H307-B · 8S4Z 9H307-C · PFS-475
4010664 · E2516M · DFG1113 · 69371 · P76647M · C0123M · A30398 · SP2372M · USEP2516M
This part cross-references / interchanges with the following part numbers:
4010664, E2516M, DFG1113, 69371, P76647M, 8S4Z 9H307-A, 8S4Z 9H307-B, 8S4Z 9H307-C, PFS-475, C0123M, A30398, SP2372M, USEP2516M
Frequently Asked Questions
Does the Delphi FG1113 fit the 2008 Ford Focus 4-cylinder 2.0L?
Yes. Delphi FG1113 is a direct-fit fuel pump module for the 2008 Ford Focus 4-cylinder 2.0L, and that car takes one.
What comes with the Delphi FG1113 fuel module?
Delphi FG1113 comes as one fuel pump module assembly with its float arm and a seal, plus an instruction sheet.
Will the float on this fuel pump module give a correct gas gauge reading?
Yes. This fuel pump module's empty float height and float retention match OE specifications for a correct gas gauge reading.
How much load does this fuel pump module put on the electrical system?
This fuel pump module's lower amperage draw puts less load on the vehicle's electrical system.
Is this Delphi module validated and tested before use?
Yes. Delphi FG1113 is validated, tested and matched to the right vehicle application, and its design and durability aim at lower failure rates.
