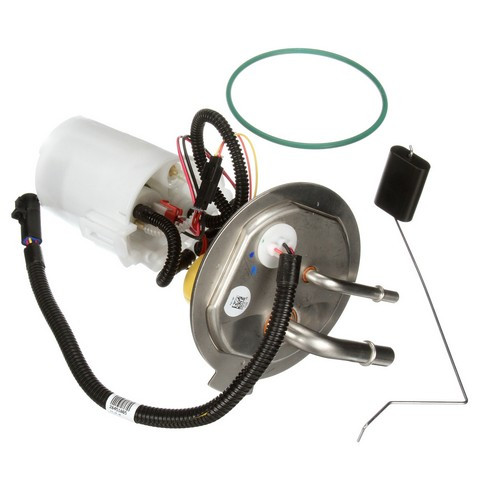

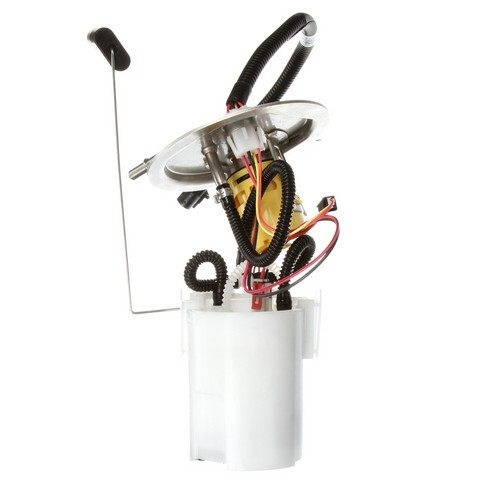

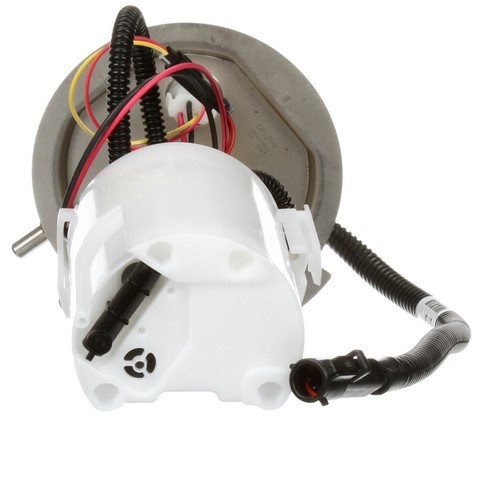

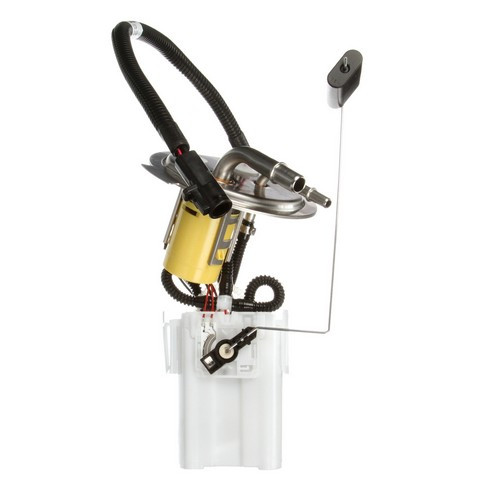

Delphi FG1197 fuel pump module for the 2005-2007 Ford F-250 Super Duty V8 5.4L or V10 6.8L and other vehicles moves fuel from the tank to the engine. It is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Low amperage draw puts less load on the vehicle's electrical system
- Each module is validated and tested, then matched to its application
- Design aimed at durability and lower failure rates
Quick facts
- Part: Delphi FG1197 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2005-2007 Ford F-250 Super Duty V8 5.4L or V10 6.8L and other vehicles
Hard starting or stalling can be signs that a fuel pump module, also called a fuel pump assembly, is wearing out. A clogged fuel filter, a faulty fuel pump relay or a dirty tank can be behind them too, so track down the cause before buying a new one.
Fits
This Delphi fuel pump module is a direct-fit replacement for the 2005-2007 Ford F-250 Super Duty V8 5.4L or V10 6.8L and the 2005-2007 Ford F-350 Super Duty V8 5.4L or V10 6.8L.
Specifications
- Quantity per vehicle: 1
- Engines: V10-6.8L, V8-5.4L
In the box
One fuel pump module with float arm, seal and instruction sheet. This listing holds one, and each vehicle takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 5C3Z 9H307-AE · 6C3Z 9H307-AA · PFS-306
4010519 · E2344M · E2386 · E2438M · CFG1197 · 66064 · 69175 · M2520807 · P76230 · P76651M · RE0923S · C0057M · A33109 · SP1150 · SP2304M · USEP2344M
This part cross-references / interchanges with the following part numbers:
4010519, E2344M, E2386, E2438M, CFG1197, 66064, 69175, M2520807, P76230, P76651M, RE0923S, 5C3Z 9H307-AE, 6C3Z 9H307-AA, PFS-306, C0057M, A33109, SP1150, SP2304M, USEP2344M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2005-2007 Ford F-250 Super Duty V8 5.4L or V10 6.8L?
Yes. Delphi FG1197 fits the 2005-2007 Ford F-250 Super Duty V8 5.4L or V10 6.8L, and the 2005-2007 Ford F-350 Super Duty V8 5.4L or V10 6.8L.
Does the Delphi fuel module come with a float arm and seal?
Yes. Delphi FG1197 comes with its float arm, a seal and an instruction sheet. This listing is one module, and each truck takes one.
What should I do with the fuel tank before installing the Delphi module?
Check the tank and clean it first. The instruction sheet that comes with the part covers the installation steps.
Could a wrong gas gauge reading mean the float on my fuel pump module is the problem?
Yes, it can be. If the float is the cause, Delphi FG1197 has its empty float height and float retention set for a correct gas gauge reading.
Does Delphi FG1197 replace part number 5C3Z 9H307-AE?
Yes. 5C3Z 9H307-AE is one of the numbers Delphi FG1197 replaces, and the rest are on the Interchange line of this page.
