Fuel Pump Module for 2004-2005 Chevrolet Express 3500 & More - Delphi FG0398

Delphi FG0398 fuel pump module for the 2004-2005 Chevrolet Express 3500 V8 4.8L or 6.0L and other vehicles delivers fuel from the tank to the engine. The Delphi fuel pump module is built to the brand's OE standards and is also called a fuel pump assembly.

• Empty float height and float retention are matched to specification for a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated, tested and matched to the right vehicle application
• Lower failure rates from the pump module's design and durability

Quick facts

• Part: Delphi FG0398 fuel pump module
• Also called: fuel pump assembly
• Fits: 2004-2005 Chevrolet Express 3500 V8 4.8L or 6.0L and other vehicles
• Condition: New

Hard starting, sputtering under load or a fuel gauge that reads wrong can mean this module is worn, though a clogged fuel filter or a bad fuel pump relay can produce those signs too, so look at both before replacing it.

Fits

It fits the 2004-2005 Chevrolet Express 3500 V8 4.8L or 6.0L and the 2004-2005 GMC Savana 3500 V8 4.8L or 6.0L, with one module per vehicle.

Specifications

In the box

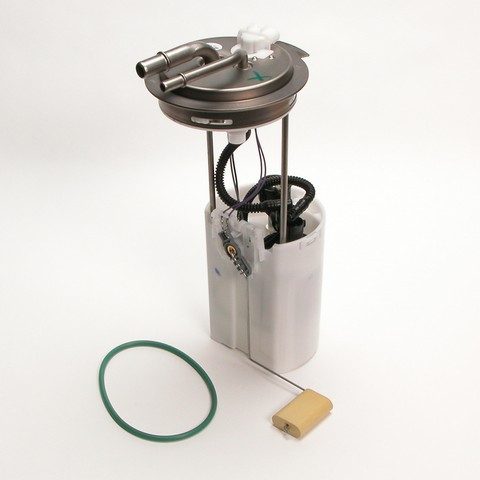

One fuel pump module with float arm, a seal and an instruction sheet.

Installation notes

• Check and clean the fuel tank before installing the module.
• The instruction sheet in the box covers the installation steps.

Interchange: M10029 · MU1432 · 4010429 · 4011400 · E3682M · DFG0398 · P76089B · P76089M · 19133504 · 19303415 · 19331971 · 25362257 · A30331 · SP76091M · USEP3682M
