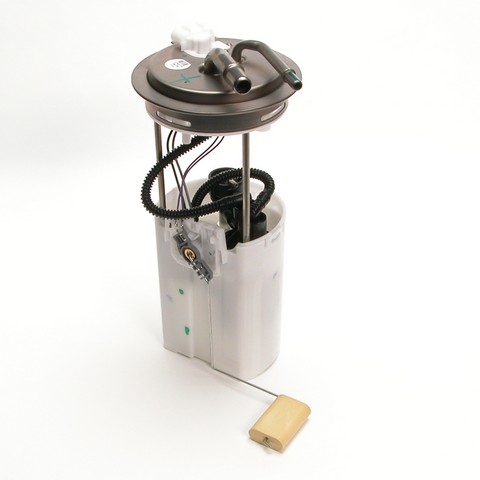

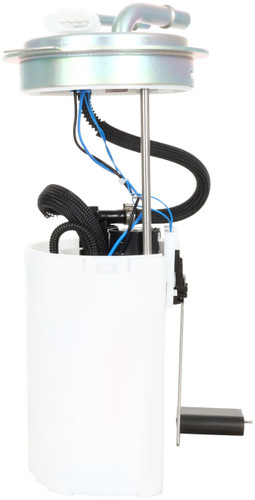

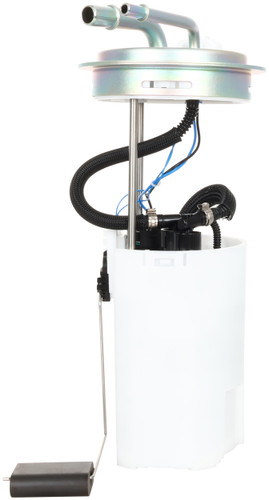

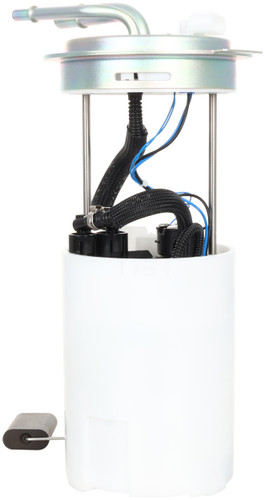

Delphi FG0403 fuel pump module for the 2004-2005 Chevrolet Express 3500 V8 6.0L and other vehicles moves fuel from the tank to the engine. It is built to Delphi's OE standards, and its float arm feeds the fuel gauge.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw, so less load on the vehicle's electrical system
- Validated and tested, then matched to the right application
- Design and durability aimed at lowering failure rates
Quick facts
- Part: Delphi FG0403 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2005 Chevrolet Express 3500 V8 6.0L and other vehicles
- Condition: New
A fuel pump assembly that is wearing out can show up as hard starting, stalling or a fuel gauge that reads wrong. Before you replace the module, rule out a clogged fuel filter, a wiring or relay fault and a dirty tank, since each can cause similar symptoms.
Fits
This Delphi fuel pump module fits the 2004-2005 Chevrolet Express 3500 V8 6.0L and the 2004-2005 GMC Savana 3500 V8 6.0L. This listing is one module, and both of these take one.
Specifications
- Quantity per vehicle: 1
- Construction: module with float arm
- Condition: New
In the box

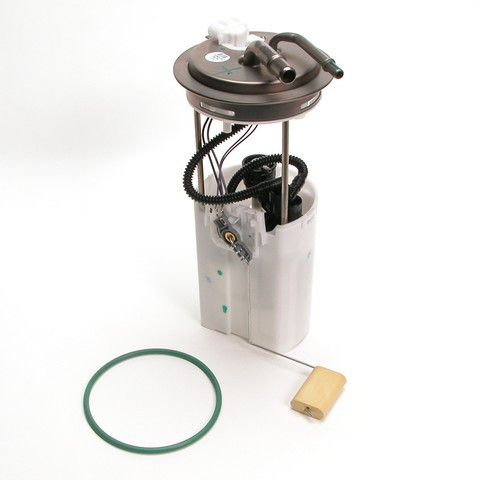

One fuel pump module with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank when installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: M10029 · MU1434 · 4010419 · E3580M · DFG0403 · P76092B · P76092M · 19133510 · 19133511 · 19352894 · 19352895 · C0220M · A30331 · SP3682M · USEP3580M
This part cross-references / interchanges with the following part numbers:
M10029, MU1434, 4010419, E3580M, DFG0403, P76092B, P76092M, 19133510, 19133511, 19352894, 19352895, C0220M, A30331, SP3682M, USEP3580M
Frequently Asked Questions
Is this Delphi fuel pump module assembly right for the 2004-2005 Chevrolet Express 3500 V8 6.0L?
Yes. Delphi FG0403 fits the 2004-2005 Chevrolet Express 3500 V8 6.0L, and the 2004-2005 GMC Savana 3500 V8 6.0L takes it as well.
What does the Delphi fuel module include besides the pump?
The Delphi FG0403 comes with a float arm, a seal and an instruction sheet.
Does the Delphi module have a set float height?
Yes. The empty float height and float retention are set to match OE specifications, which is meant to give a correct gas gauge reading.
Does the Delphi FG0403 replace number 19133510?
Yes. 19133510 is listed as an interchange number for this Delphi FG0403 fuel pump module.
Does the fuel tank need cleaning when installing this module?
Yes. Check and clean the fuel tank during installation. An instruction sheet comes with the part.
