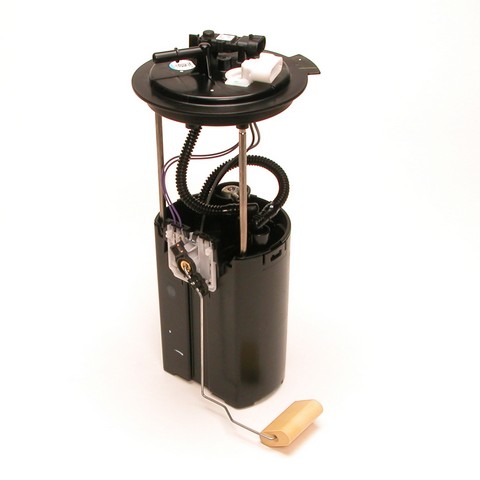

Delphi FG0433 fuel pump module for the 2006-2007 Buick Lucerne V6 3.8L or V8 4.6L and other vehicles sends fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards, like all Delphi fuel pumps.
- Empty float height and float retention set for a correct gas gauge reading
- Low amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability to reduce failure rates
Quick facts
- Part: Delphi FG0433 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006-2007 Buick Lucerne V6 3.8L or V8 4.6L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the pump or float is worn, but a blown fuse or a wiring fault can look the same. With the engine off, look at the fuel pump fuse first, and leave pressure tests to a shop. If the module is the cause, this one replaces it.
Fits
This module fits the 2006-2007 Buick Lucerne V6 3.8L or V8 4.6L and the 2006-2007 Cadillac DTS V8 4.6L. Both cars need a single module, and this listing is one.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module assembly with float arm and seal, plus an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: M10005 · MU1503 · 4010563 · E3709M · DFG0433 · 67496 · M2496201 · P76236M · 15263190 · 19153051 · 19153052 · 19331951 · 19331979 · 19370076 · 25383209 · 1AMFP00084 · C0262M · A41007 · SP6433M · USEP3709M
This part cross-references / interchanges with the following part numbers:
M10005, MU1503, 4010563, E3709M, DFG0433, 67496, M2496201, P76236M, 15263190, 19153051, 19153052, 19331951, 19331979, 19370076, 25383209, 1AMFP00084, C0262M, A41007, SP6433M, USEP3709M
Frequently Asked Questions
Does the Delphi fuel module fit the 2006-2007 Cadillac DTS V8 4.6L?
Yes. Delphi FG0433 fits the 2006-2007 Cadillac DTS V8 4.6L, and it also fits the 2006-2007 Buick Lucerne V6 3.8L or V8 4.6L.
Does the Delphi fuel pump module assembly come with the float arm?
Yes. Delphi FG0433 comes with the float arm, a seal and an instruction sheet.
Will the float on this Delphi fuel pump module give a correct gas gauge reading?
Yes. The empty float height and float retention on this fuel pump module match OE specifications and are meant to give a correct gas gauge reading.
Does the Delphi module put less load on the electrical system?
Yes. This module has a lower amperage draw, so it puts less load on the vehicle's electrical system.
What should I do with the fuel tank when installing the FG0433 module?
Check and clean the fuel tank before installing Delphi FG0433. An instruction sheet comes with the part for the steps.
