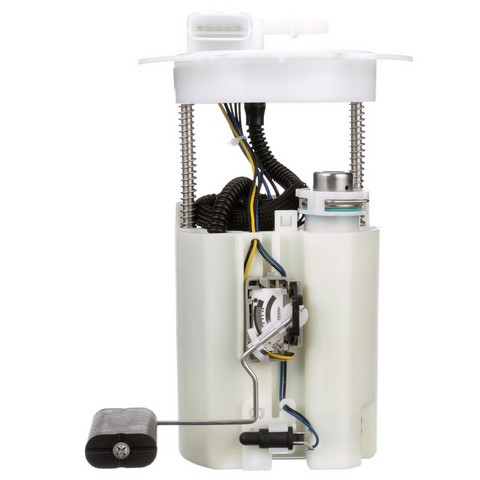

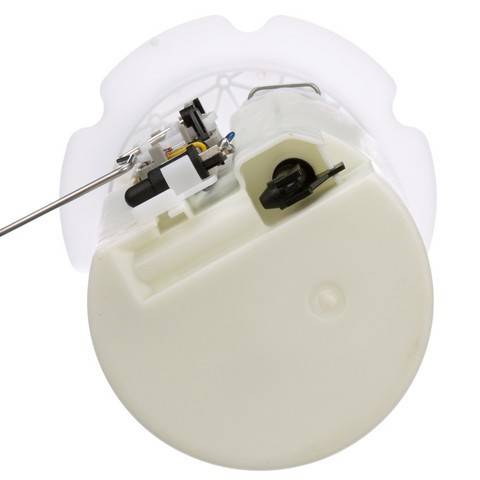

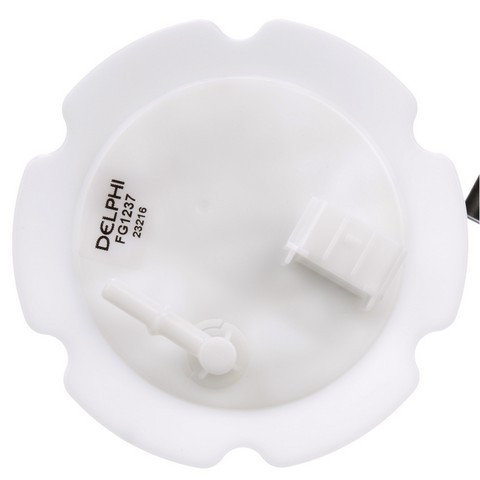

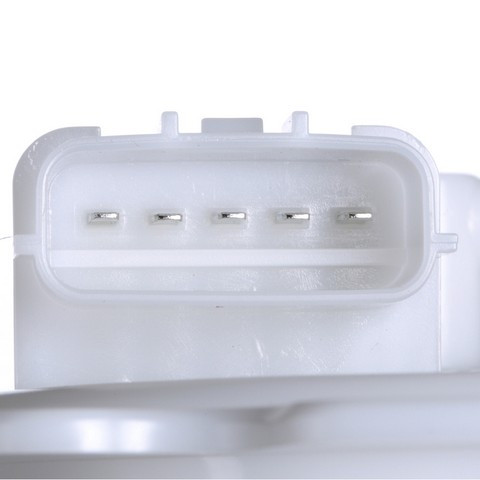

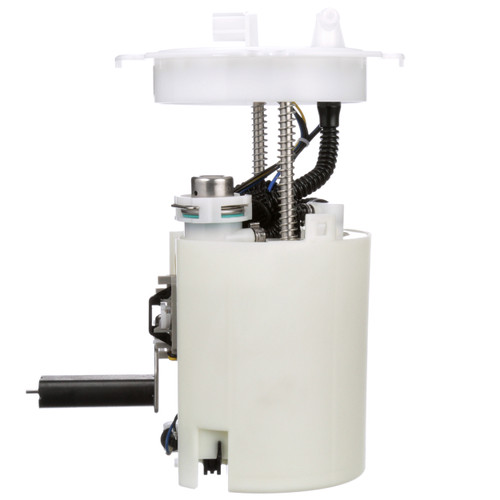

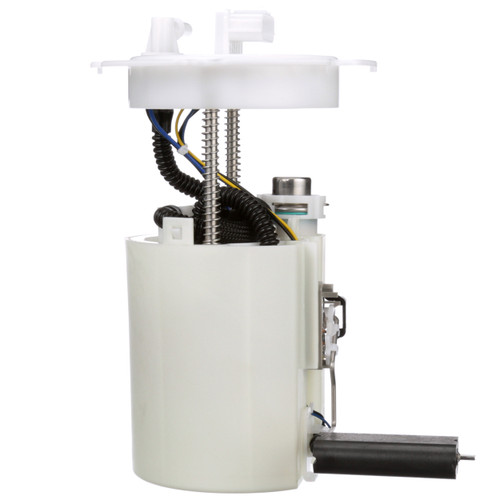

Delphi FG1237 fuel pump module for the 2002-2006 Nissan Sentra 4-cylinder 2.5L and the 2003-2006 Sentra 4-cylinder 1.8L moves fuel from the tank to the engine. This Delphi fuel pump module assembly also carries the float arm that feeds the gas gauge, and Delphi builds it to its own OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Low amperage draw keeps the load on the vehicle's electrical system light
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at keeping failure rates low
Quick facts
- Part: Delphi FG1237 fuel pump module
- Also called: fuel pump assembly
- Fits: 2002-2006 Nissan Sentra 4-cylinder 2.5L and the 2003-2006 Sentra 4-cylinder 1.8L
A gas gauge that reads wrong, an engine that cranks but will not start, or sputtering under load can be signs of a tired pump module. A clogged fuel filter, a bad fuel pump relay or a blown fuse can be behind the same signs, so find the cause before you buy.
Fits
It fits the 2002-2006 Nissan Sentra 4-cylinder 2.5L and the 2003-2006 Sentra 4-cylinder 1.8L, and each takes one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Seal: included
- Lock ring: included
In the box
One fuel pump module with float arm, seal, lock ring and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 152-1008 · 950-0129 · 950-7003 · 17040-8U000 · 17040-ZG50A
4010270 · 4010346 · E8502M · E9184M · CFG1237 · F4513A · 69701 · 69889 · M2297685 · P76411M · P77287M · A33017 · C0565M · SP4014M · USEP8502M
This part cross-references / interchanges with the following part numbers:
4010270, 4010346, E8502M, E9184M, CFG1237, F4513A, 152-1008, 69701, 69889, M2297685, P76411M, P77287M, 950-0129, 950-7003, 17040-8U000, 17040-ZG50A, A33017, C0565M, SP4014M, USEP8502M
Frequently Asked Questions
Will the Delphi FG1237 fuel module work in a 2003-2006 Nissan Sentra 4-cylinder 1.8L?
Yes. Delphi FG1237 fits the 2003-2006 Nissan Sentra 4-cylinder 1.8L and also the 2002-2006 Sentra 4-cylinder 2.5L, one per vehicle.
Does this fuel pump assembly come with the float arm and lock ring?
Yes. Delphi FG1237 comes with the float arm, seal, lock ring and an instruction sheet.
What does the float arm on the Delphi fuel pump module do for the gas gauge?
Its empty float height and float retention are set to give a correct gas gauge reading. The module also draws lower amperage, so the electrical system carries less load.
What signs can point to a worn fuel pump module?
A gas gauge that reads wrong, an engine that cranks but will not start, or sputtering under load can point to the module. A shop can test fuel pressure.
Does the Delphi module need any prep before it goes in the tank?
Yes. Check and clean the fuel tank first. The instruction sheet in the box covers the steps for installing this module.
