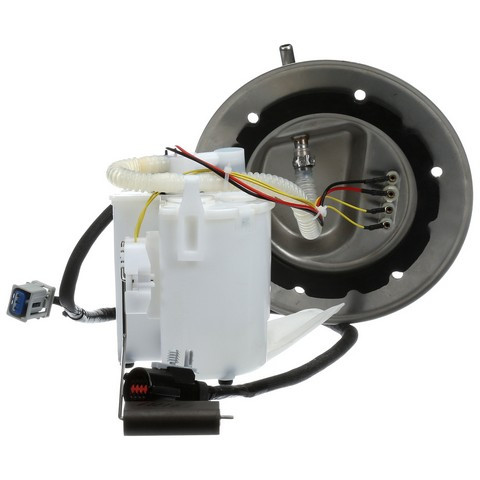

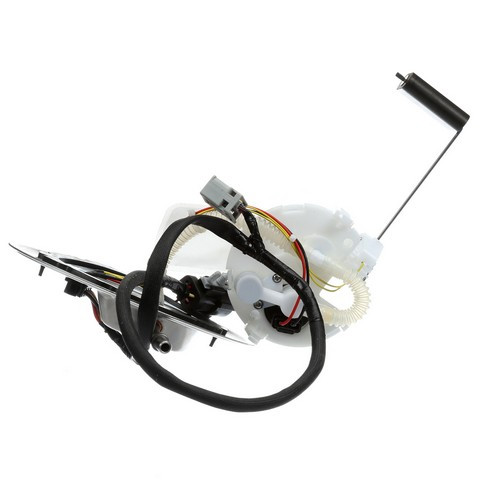

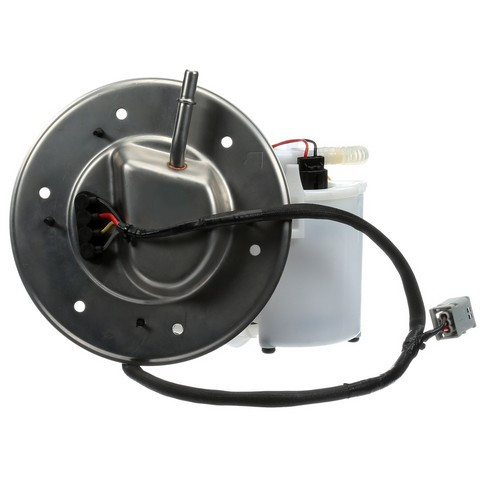

Delphi FG0827 fuel pump module for the 2001-2004 Ford Mustang sends fuel from the tank to the engine. This Delphi fuel pump module assembly includes a float arm and is built to OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0827 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2001-2004 Ford Mustang
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the pump or its float is wearing out. Before you replace the module, rule out a blown fuse, a faulty fuel pump relay and damaged wiring, since any of them can also leave the engine hard to start.
Fits
It fits the 2001-2004 Ford Mustang, and the car takes one module. The 2003 model is listed with the V6-3.8L and V8-4.6L engines.
Specifications
- Quantity per vehicle: 1
- Construction: assembly with float arm
- Condition: New
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: 1R3Z 9H307-AA · 1R3Z 9H307-AB · 1R3Z 9H307-AD · PFS-170 · 402-P2301M
4010297 · E2301M · E2366 · DFG0827 · F1312A · 67170 · M2324760 · P76102 · P76130M · P76130S · P76505M · AFS0834S · RE0834S · C0049M · A30072 · SP1144 · SP2301M · USEP2301M · TU229
This part cross-references / interchanges with the following part numbers:
4010297, E2301M, E2366, DFG0827, F1312A, 67170, M2324760, P76102, P76130M, P76130S, P76505M, AFS0834S, RE0834S, 1R3Z 9H307-AA, 1R3Z 9H307-AB, 1R3Z 9H307-AD, PFS-170, C0049M, 402-P2301M, A30072, SP1144, SP2301M, USEP2301M, TU229
Frequently Asked Questions
Is this Delphi fuel pump module right for the 2001-2004 Ford Mustang?
Yes. Delphi FG0827 fits the 2001-2004 Ford Mustang, and the car takes one. The 2003 model is listed with the V6-3.8L and V8-4.6L engines.
Does the Delphi fuel module come with the float arm?
Yes. Delphi FG0827 is a fuel pump module assembly that comes with its float arm and an instruction sheet.
What should I do before installing the Delphi module?
Check and clean the fuel tank first. The instruction sheet in the box covers the installation steps.
Will the float on this fuel pump assembly give a correct gas gauge reading?
Yes. Its empty float height and float retention match OE specifications, which is what keeps the gas gauge reading correct.
How much load does the Delphi FG0827 put on the electrical system?
Delphi FG0827 is built for lower amperage draw, so it puts less load on the vehicle's electrical system.
