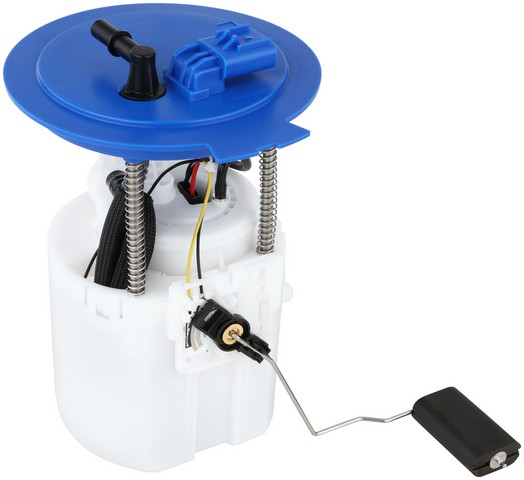

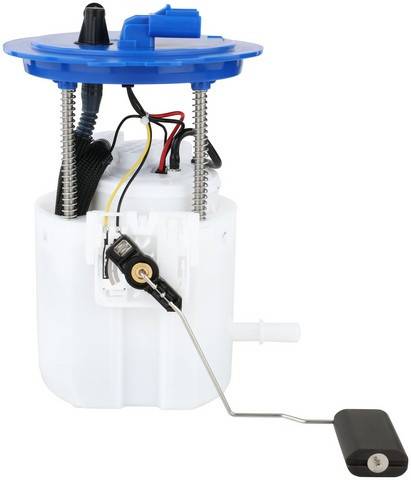

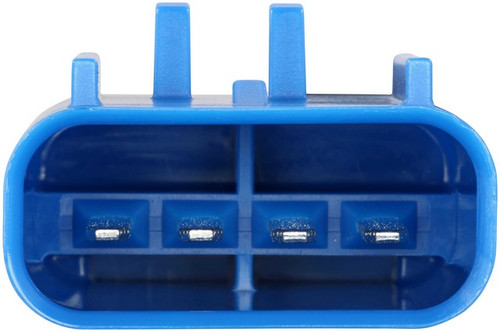

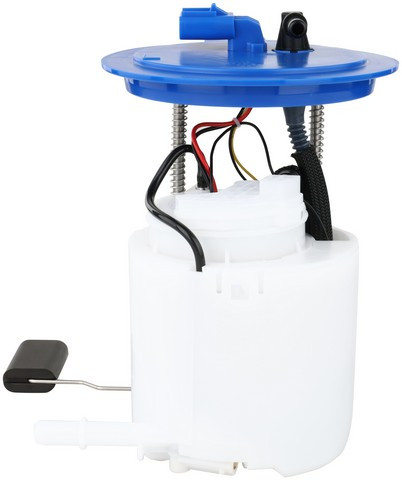

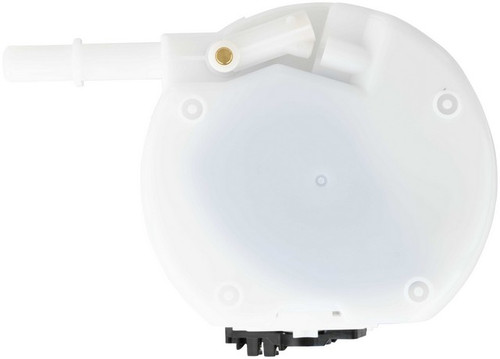

Delphi FG0855 fuel pump module for the 2011-2022 Jeep Grand Cherokee V8 5.7L, the 2016-2022 Grand Cherokee V6 3.6L, the 2017-2019 Grand Cherokee V6 3.0L and other vehicles delivers fuel from the tank to the engine. This Delphi fuel pump module is also called a fuel pump assembly.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
- Lower failure rates from the part's design and durability
Quick facts
- Part: Delphi FG0855 fuel pump module
- Also called: fuel pump assembly
- Fits: 2011-2022 Jeep Grand Cherokee V8 5.7L, the 2016-2022 Grand Cherokee V6 3.6L, the 2017-2019 Grand Cherokee V6 3.0L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the module is wearing out, though these signs can come from other faults too. Before you replace it, rule out a blown fuse or relay and a wiring fault. Each vehicle takes one module, and this listing is one.
Fits
It also fits the 2011-2025 Dodge Durango V8 5.7L, the 2016-2025 Durango V6 3.6L and the 2022 Jeep Grand Cherokee WK V6 3.6L. Its empty float height and float retention match OE specifications, and all Delphi fuel pumps are built to Delphi's OE standards.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the included instruction sheet for the steps.
Interchange: 5145 583AA · 5145 583AB · 5145 583AC · 5145 583AD · 6830 4617AA · 6847 7870AB · 6853 5771AA
4010764 · E7273M · CFG0855 · P76751S · P77190M · 04578811AD · 4578811AD · 5145583AE · 68535771AB · RL145583AB · A46237 · SP7053M · SP7089M · SP7108M
This part cross-references / interchanges with the following part numbers:
4010764, E7273M, CFG0855, P76751S, P77190M, 04578811AD, 4578811AD, 5145 583AA, 5145 583AB, 5145 583AC, 5145 583AD, 5145583AE, 6830 4617AA, 6847 7870AB, 6853 5771AA, 68535771AB, RL145583AB, A46237, SP7053M, SP7089M, SP7108M
Frequently Asked Questions
Does the Delphi FG0855 fit the 2011-2025 Dodge Durango V8 5.7L?
Yes. Delphi FG0855 fits the 2011-2025 Dodge Durango V8 5.7L and the 2016-2025 Durango V6 3.6L.
Does the Delphi module come with a float arm and seal?
Yes. Delphi FG0855 comes with the float arm, a seal and an instruction sheet.
Does this Delphi fuel module put less load on the electrical system?
Yes. Its lower amperage draw puts less load on the vehicle's electrical system.
Is the float on this fuel pump module set to OE specifications?
Yes. The empty float height and float retention of Delphi FG0855 match OE specifications, which is meant to give a correct gas gauge reading.
Should I clean the tank before fitting a Delphi fuel pump module assembly?
Yes. Always check and clean the fuel tank before installing Delphi FG0855, which avoids unnecessary returns.
