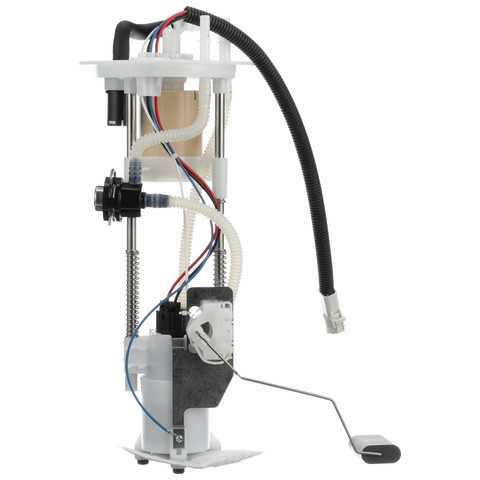

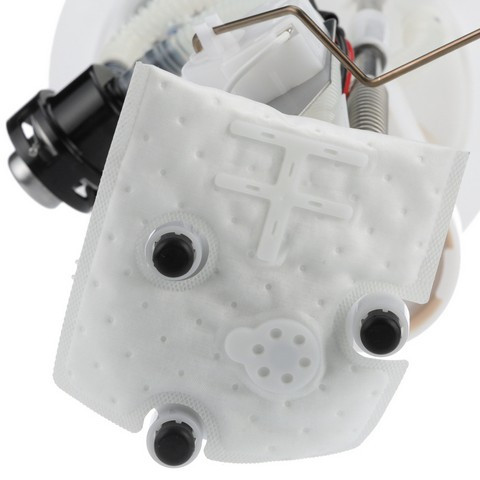

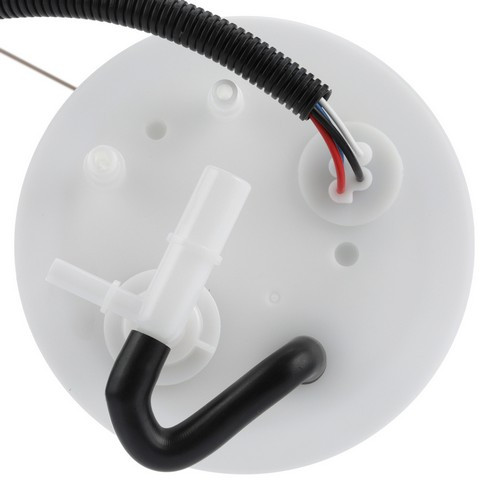

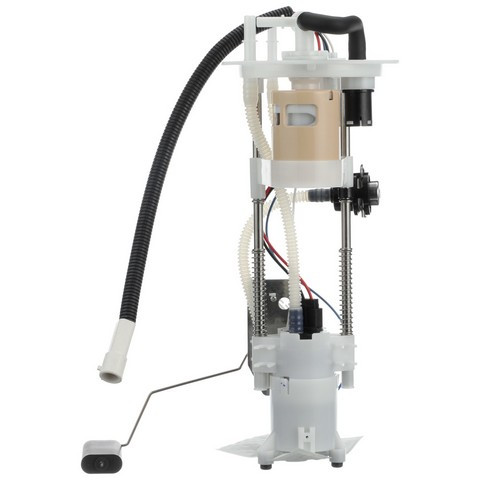

Delphi FG0871 fuel pump module for the 2001-2003 Ford Ranger 4-cylinder 2.3L, V6 3.0L or 4.0L supplies fuel from the tank to the engine. The Delphi fuel pump module assembly also carries the float arm that reports the tank level.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw, which puts less load on the electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0871 fuel pump module
- Also called: fuel pump assembly
- Fits: 2001-2003 Ford Ranger 4-cylinder 2.3L, V6 3.0L or 4.0L
- Condition: New
A gas gauge that reads wrong, hard starting or stalling can come from a worn pump or float arm, though other fuel-system faults show the same signs. Before replacing this module, which is also called a fuel pump assembly, look over the parked truck with the engine off for fuel odor or wet spots; a shop can run pressure tests.
Fits
This listing fits the 2001-2003 Ford Ranger with the 4-cylinder 2.3L, V6 3.0L or 4.0L, and each truck takes one module.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before the module goes in.
- The instruction sheet in the box covers the installation steps.
Interchange: 953-4029 · 1L5Z-9H307-EA · 1L5Z 9H307-EE · 1L5Z 9H307-EF · 3L5Z 9H307-EA · 3L5Z 9H307-EC · 3L5Z 9H307-ED · PFS-1018 · PFS-443
4010287 · E2295M · DFG0871 · 67196 · P74997M · AFS0747S · RE0746S · RE0747S · C0048M · A30128 · SP2027M · USEP2295M
This part cross-references / interchanges with the following part numbers:
4010287, E2295M, DFG0871, 67196, P74997M, 953-4029, AFS0747S, RE0746S, RE0747S, 1L5Z-9H307-EA, 1L5Z 9H307-EE, 1L5Z 9H307-EF, 3L5Z 9H307-EA, 3L5Z 9H307-EC, 3L5Z 9H307-ED, PFS-1018, PFS-443, C0048M, A30128, SP2027M, USEP2295M
Frequently Asked Questions
Does Delphi FG0871 fit the 2001-2003 Ford Ranger with the V6 3.0L?
Yes. Delphi FG0871 fits the 2001-2003 Ford Ranger 4-cylinder 2.3L, V6 3.0L or 4.0L, with one module per truck.
What comes with the Delphi module besides the pump itself?
The box holds the fuel pump module with its float arm, a seal and an instruction sheet.
Does the float on this Delphi fuel module match the original height?
Yes. Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Should the tank be cleaned before installing Delphi FG0871?
Yes. Check the fuel tank and clean it before fitting Delphi FG0871.
Does Delphi FG0871 cross to the 3L5Z 9H307-ED number?
Yes. 3L5Z 9H307-ED is one of the numbers FG0871 replaces, and the rest are on the Interchange line.
