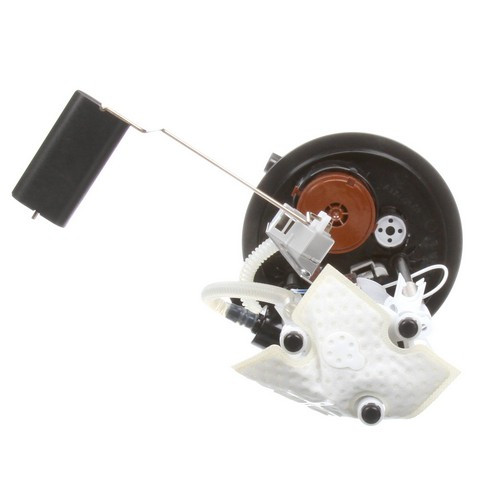

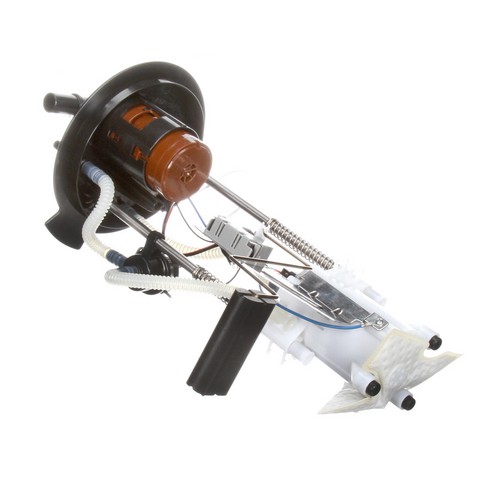

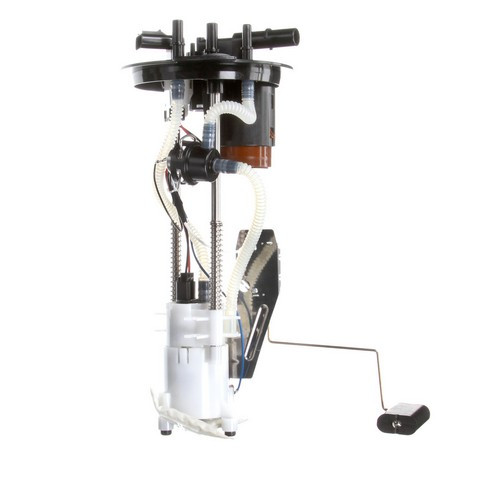

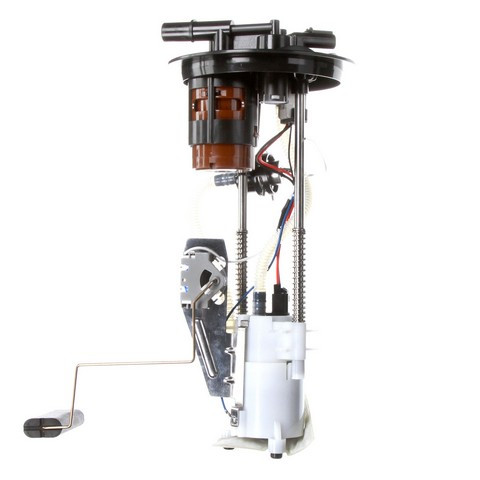

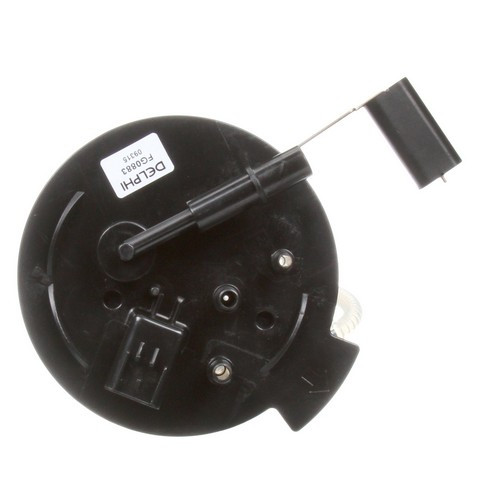

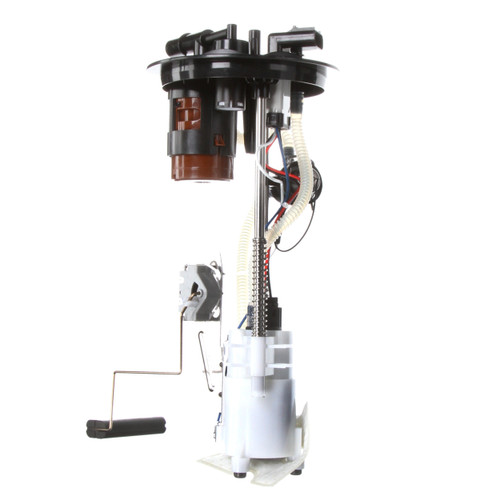

Delphi FG0883 fuel pump module for the 2007-2008 Ford Ranger V6 3.0L and the 2007-2011 Ranger 4-cylinder 2.3L or V6 4.0L moves fuel from the tank toward the engine. Also called a fuel pump assembly, it comes as a Delphi fuel pump module assembly with a float arm and seal.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage puts less load on the vehicle's electrical system
- Validated and tested, then matched to its application
- Designed for durability and a lower failure rate
Quick facts
- Part: Delphi FG0883 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2008 Ford Ranger V6 3.0L and the 2007-2011 Ranger 4-cylinder 2.3L or V6 4.0L
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the fuel pump module is wearing out. A clogged fuel filter, a bad relay or damaged wiring can be behind those signs too, so find the real cause before buying.
Fits
It fits the 2007-2008 Ford Ranger V6 3.0L and the 2007-2011 Ranger 4-cylinder 2.3L or V6 4.0L, and a truck takes a single module. Delphi builds its fuel pumps to its own OE standards, and this module's empty float height and float retention match OE specifications.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box

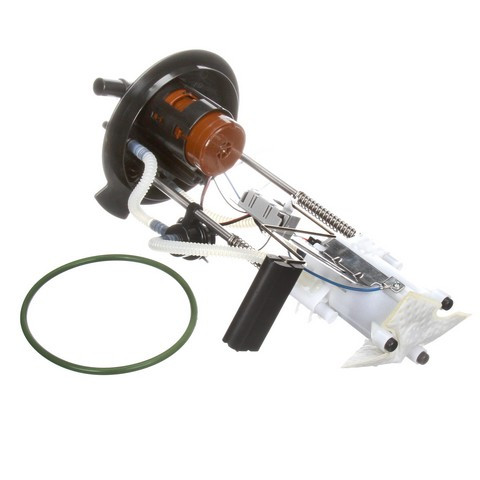

One fuel pump module assembly with float arm, one seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: 7L5Z 9H307-A · 8L5Z 9H307-A · 8L5Z 9H307-D · AL5Z 9H307-A · PFS-519 · PFS-522
4010598 · E8808M · DFG0883 · P76478M · C0687M · A30548 · SP2386M · USEP8808M
This part cross-references / interchanges with the following part numbers:
4010598, E8808M, DFG0883, P76478M, 7L5Z 9H307-A, 8L5Z 9H307-A, 8L5Z 9H307-D, AL5Z 9H307-A, PFS-519, PFS-522, C0687M, A30548, SP2386M, USEP8808M
Frequently Asked Questions
Is the Delphi fuel pump module FG0883 right for the 2007-2008 Ford Ranger V6 3.0L?
Yes. Delphi FG0883 fits the 2007-2008 Ford Ranger V6 3.0L and the 2007-2011 Ranger 4-cylinder 2.3L or V6 4.0L. A truck takes one module.
What is included with the Delphi fuel module FG0883?
Delphi FG0883 comes as a fuel pump module assembly with a float arm, a seal and an instruction sheet.
Does the float on this Delphi module match OE height?
Yes. The empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Can the float arm on a fuel pump module make the gas gauge read wrong?
It can. A worn float arm is one possible reason for a gauge that reads wrong, and hard starting or stalling can point to the pump. A shop can test fuel pressure.
Does Delphi FG0883 replace Ford number 8L5Z 9H307-A?
Yes. Delphi FG0883 is listed as a replacement for the OE number 8L5Z 9H307-A. The other cross-reference numbers are on the Interchange line.
