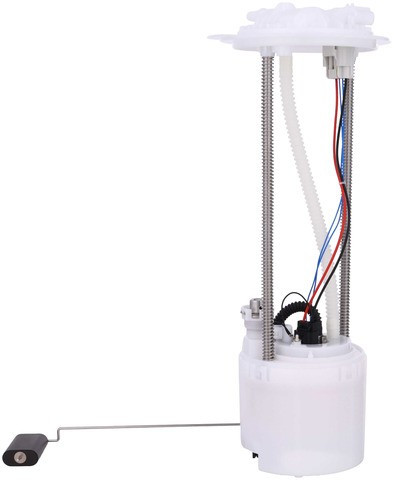

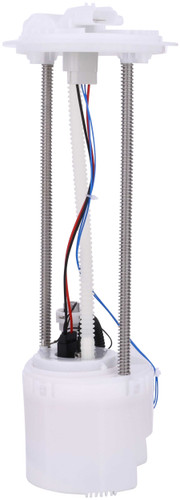

Fuel Pump Module for 2005-2007 Jeep Liberty - Delphi FG0929

Delphi FG0929 fuel pump module for the 2005 Jeep Liberty 4-cylinder 2.4L and the 2005-2007 Liberty V6 3.7L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly is built to the company's OE standards.

• Empty float height and float retention set for a correct gas gauge reading
• Lower amperage, so the module draws less load on the vehicle's electrical system
• Validated and tested for its application
• Design and durability intended to lower failure rates

Quick facts

• Part: Delphi FG0929 fuel pump module
• Also called: fuel pump assembly
• Fits: the 2005 Jeep Liberty 4-cylinder 2.4L and the 2005-2007 Liberty V6 3.7L
• Condition: New

When a fuel pump module (also called a fuel pump assembly) wears out, you may notice hard starting, stalling or a fuel gauge that reads wrong. Before you replace the module, rule out the fuses, the relay and the wiring, because a fault in any of those can leave the engine cranking without starting.

Fits

It fits the 2005 Jeep Liberty with the L4-2.4L engine and the 2005-2007 Liberty with the V6-3.7L engine. Both the L4-2.4L and the V6-3.7L take one module.

Specifications

• Quantity per vehicle: 1
• Condition: New

In the box

One fuel pump module with a float arm, a seal and an instruction sheet.

Installation notes

• Check and clean the fuel tank before installing the module.
• The instruction sheet in the box covers the installation steps.
