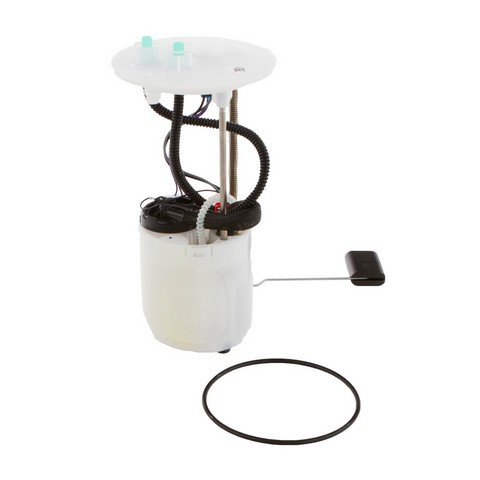

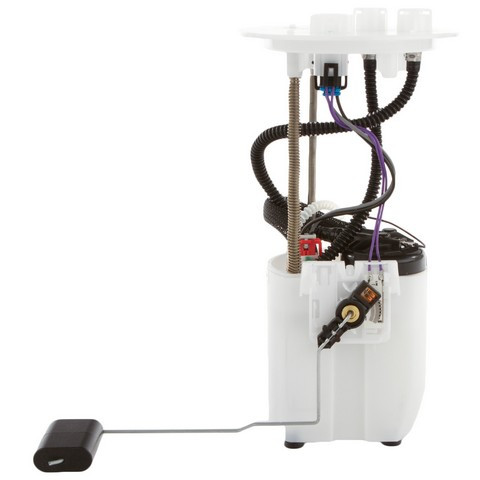

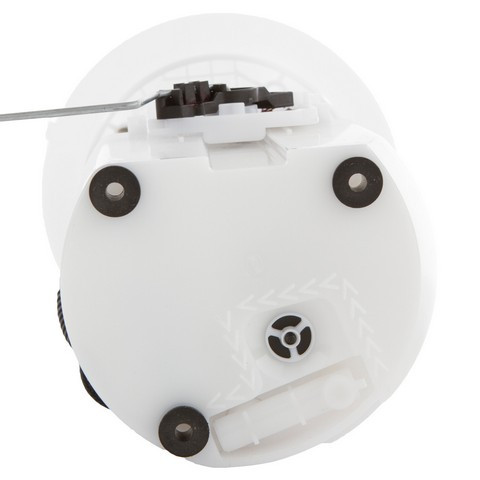

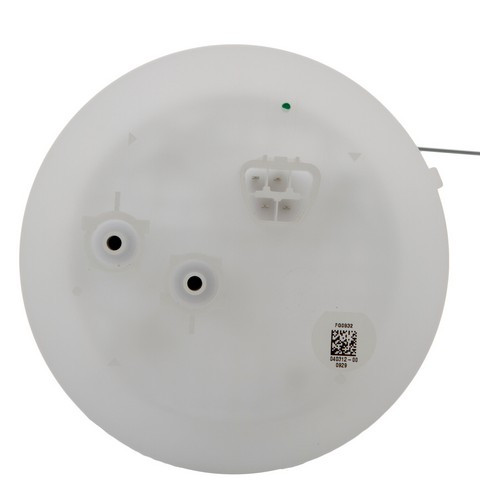

Delphi FG0932 fuel pump module for the 2007-2009 Toyota Tundra V8 4.7L, the 2007-2014 Tundra V6 4.0L and other vehicles moves fuel from the tank to the engine. It is built to Delphi's OE standards.
- Empty float height and float retention are held to specification for correct gas gauge readings
- Lower amperage draws less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0932 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2009 Toyota Tundra V8 4.7L, the 2007-2014 Tundra V6 4.0L and other vehicles
A hard start, stalling or a fuel gauge that reads wrong can mean the pump module is wearing out. A failed fuel pump relay can produce similar trouble, so these signs alone do not prove the module is the problem. If the fuel pump assembly is the cause, this module replaces it. One module is needed per vehicle.
Fits
This module fits the 2007-2009 Toyota Tundra V8 4.7L, the 2007-2014 Tundra V6 4.0L and the 2008-2009 Toyota Sequoia V8 4.7L.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Seal: included
In the box
One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the package covers the installation steps.
Interchange: 951-0020 · 23220-0F051 · 77020-0C070 · 77020-0C071 · 77020-0C072 · 83320-0C022 · 83320-0C023 · 83320-0C080
4010643 · E8806M · DFG0932 · P76713M · A30433 · A30153 · SP9009M · USEP8806M
This part cross-references / interchanges with the following part numbers:
4010643, E8806M, DFG0932, P76713M, 951-0020, A30433, A30153, SP9009M, 23220-0F051, 77020-0C070, 77020-0C071, 77020-0C072, 83320-0C022, 83320-0C023, 83320-0C080, USEP8806M
Frequently Asked Questions
Does the Delphi FG0932 fuel pump module fit the 2008-2009 Toyota Sequoia V8 4.7L?
Yes. Delphi FG0932 is listed for the 2008-2009 Toyota Sequoia V8 4.7L. It also fits the 2007-2009 Toyota Tundra V8 4.7L.
What comes with this Delphi fuel pump module assembly?
The package holds the fuel pump module with float arm, seal and an instruction sheet.
Is the float height on this Delphi fuel pump module set to specification?
Yes. On FG0932, empty float height and float retention match OE specifications for correct gas gauge readings.
Does this pump module put less load on the electrical system?
Yes. This pump module's lower amperage draws less load on the vehicle's electrical system.
Do I need to clean the tank before installing this fuel pump module?
Yes. Check and clean the fuel tank first. An instruction sheet comes with the module for the installation steps.
