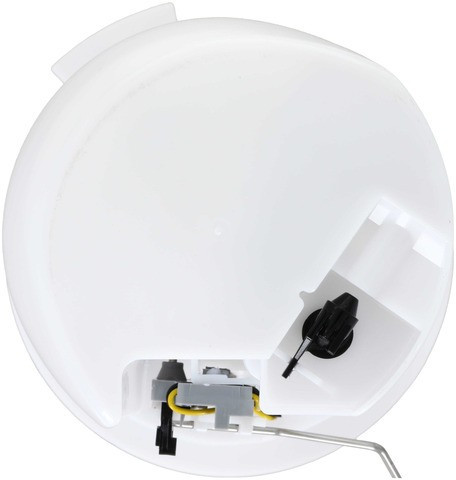

Delphi Fuel Pump Module Assembly FG1138 - view 4

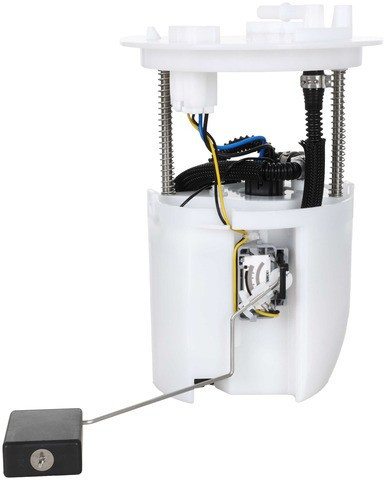

Delphi Fuel Pump Module Assembly FG1138 - view 5
Delphi Fuel Pump Module Assembly FG1138 - view 6
Delphi Fuel Pump Module Assembly FG1138 - view 7
Delphi Fuel Pump Module Assembly FG1138 - view 8
Delphi Fuel Pump Module Assembly FG1138 - view 9

Vehicles this part fits
    Part number: FG1138
    UPC: 689604230787
    Condition: New
    Weight: 6.34 LBS
    Item Package Quantity: 1
    $294.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Delphi Fuel Pump Module Assembly P/N:FG1138
    Delphi Fuel Pump Module Assembly P/N:FG1138
    $294.99
    $294.99

    Delphi FG1138 fuel pump module for the 2006-2009 Ford Fusion 4-cylinder 2.3L and other vehicles moves fuel from the tank to the engine. It is built to Delphi's OE standards.

    • Empty float height and float retention for a correct gas gauge reading
    • Lower amperage draw puts less load on the vehicle's electrical system
    • Validated, tested and matched to the right vehicle application

    Quick facts

    • Part: Delphi FG1138 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2006-2009 Ford Fusion 4-cylinder 2.3L and other vehicles
    • Condition: New

    A failing fuel pump assembly can show up as hard starting, stalling or a gas gauge that reads wrong, and each of those can have other causes. Find the cause before replacing the module: with the engine off, look at the fuel pump fuse and relay, and leave a fuel pressure test to a shop.

    Fits

    This module fits the 2006-2009 Ford Fusion 4-cylinder 2.3L and the 2006-2009 Mercury Milan 4-cylinder 2.3L, and both take one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Engine: 4-cylinder 2.3L

    Build and materials

    • Condition: New
    • Float arm: included
    • Seal: included

    In the box

    One fuel pump module with its float arm and seal, plus an instruction sheet.

    Installation notes

    • Check and clean the fuel tank before installing the module.
    • The instruction sheet that comes with the part covers the installation steps.

    Interchange: 6E5Z 9H307-F · 7E5Z 9H307-S · 8E5Z 9H307-S · PFS-388 · PFS-450
    4010582 · E2459M · CFG1138 · 69179 · P76450M · P76495M · A30303 · SP1381 · SP2367M · USEP2459M

    This part cross-references / interchanges with the following part numbers:

    4010582, E2459M, CFG1138, 69179, P76450M, P76495M, 6E5Z 9H307-F, 7E5Z 9H307-S, 8E5Z 9H307-S, PFS-388, PFS-450, A30303, SP1381, SP2367M, USEP2459M

    Frequently Asked Questions

    Is the Delphi fuel pump module assembly right for the 2006-2009 Mercury Milan 4-cylinder 2.3L?

    Yes. Delphi FG1138 fits the 2006-2009 Mercury Milan 4-cylinder 2.3L and the 2006-2009 Ford Fusion 4-cylinder 2.3L, and each takes one.

    What comes with the Delphi fuel module?

    The package holds the fuel pump module, a float arm, a seal and an instruction sheet.

    Does the float on this Delphi module match OE specifications for the gas gauge?

    Yes. On Delphi FG1138, empty float height and float retention match OE specifications, which helps the gas gauge read correctly.

    What should I do before installing the Delphi fuel pump module?

    Check and clean the fuel tank first, and follow the instruction sheet that comes with the part. A shop can handle the fuel system work if you prefer.

    Does this fuel pump module put less load on the electrical system?

    Yes. This fuel pump module runs on lower amperage, so it draws less load from the vehicle's electrical system.
