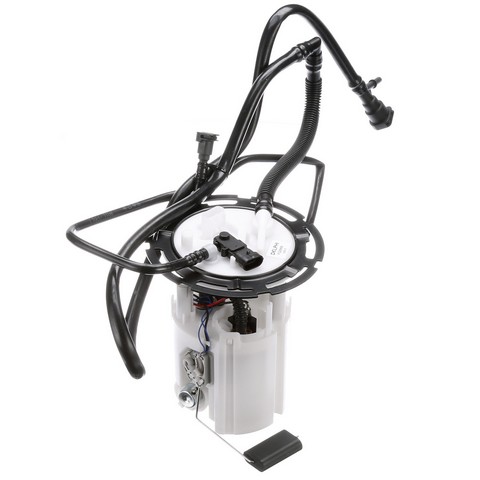

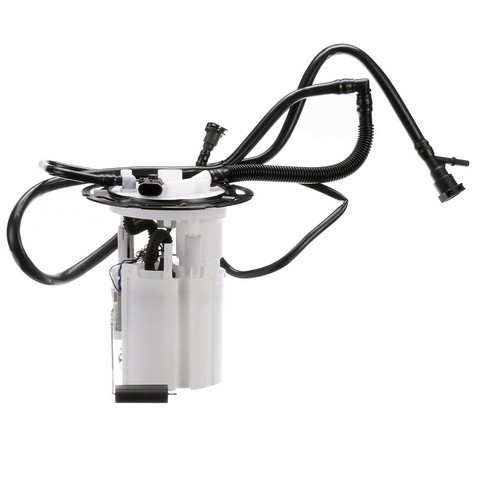

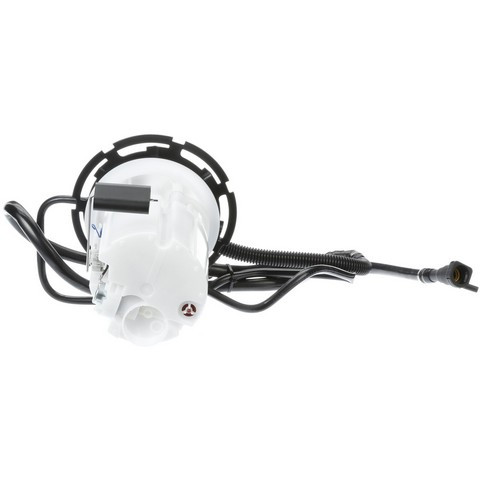

Delphi FG0955 fuel pump module for the 2007 Chevrolet Malibu V6 3.9L and the 2007-2008 Malibu 4-cylinder 2.2L or V6 3.5L carries fuel from the tank to the engine. The Delphi fuel pump module assembly sits inside the fuel tank and also carries the float that reports fuel level.
- Empty float height and float retention that give a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0955 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007 Chevrolet Malibu V6 3.9L and the 2007-2008 Malibu 4-cylinder 2.2L or V6 3.5L
A weak or failing fuel pump assembly can show up as hard starting, stalling or a fuel gauge that reads wrong. Other fuel or electrical faults can look alike, so with the engine off, look over the fuse and connector for damage and have a shop test fuel pressure before you replace the module.
Fits
This module is a direct-fit replacement for the 2007 Chevrolet Malibu V6 3.9L and the 2007-2008 Malibu 4-cylinder 2.2L or V6 3.5L. It is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.
Specifications
- Quantity per vehicle: 1
- Engine codes: L4-2.2L, V6-3.5L, V6-3.9L
In the box

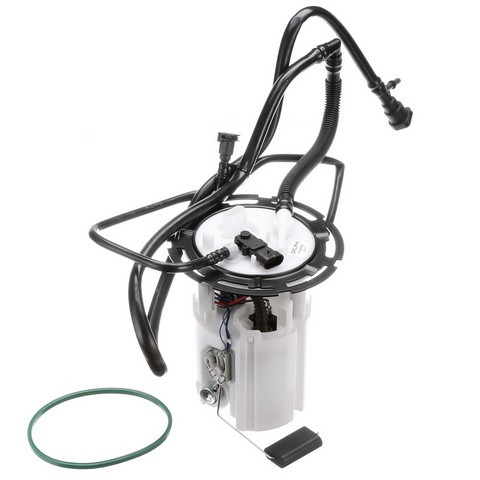

One fuel pump module with float arm, seal and instruction sheet. This listing is one module, and these vehicles take one.
Installation notes
- Check and clean the fuel tank before fitting the module.
- The instruction sheet in the box covers the steps.
Interchange: 953-3054 · 953-3080
M10153 · MU1300 · MU1627 · 4010788 · E3592M · E3592MN · E3755M · FFG0955 · F2766A · 67575 · P76618M · 19167664 · 19169179 · 19418266 · D0283M · A43033 · SP6110M · USEP3755M · TU463
This part cross-references / interchanges with the following part numbers:
M10153, MU1300, MU1627, 4010788, E3592M, E3592MN, E3755M, FFG0955, F2766A, 67575, P76618M, 953-3054, 953-3080, 19167664, 19169179, 19418266, D0283M, A43033, SP6110M, USEP3755M, TU463
Frequently Asked Questions
Does this Chevy Malibu fuel pump module fit the 2007-2008 Malibu 4-cylinder 2.2L or V6 3.5L?
Yes. The Delphi FG0955 fits the 2007-2008 Chevrolet Malibu 4-cylinder 2.2L and V6 3.5L, and also the 2007 Malibu V6 3.9L.
Does the Delphi module come with the float arm and seal?
Yes. The Delphi FG0955 comes with the float arm, a seal and an instruction sheet.
Is the float on this Delphi fuel module matched to OE specifications?
Yes. On the Delphi FG0955, empty float height and float retention match OE specifications for a correct gas gauge reading.
What can a failing Delphi fuel pump module cause?
Hard starting, stalling or an inaccurate fuel gauge can mean the pump or float in the module is worn. A shop can test fuel pressure to confirm.
What should I do to the tank before fitting this fuel pump module?
Check and clean the fuel tank before installing the Delphi FG0955. The instruction sheet that comes with the module covers the steps.
