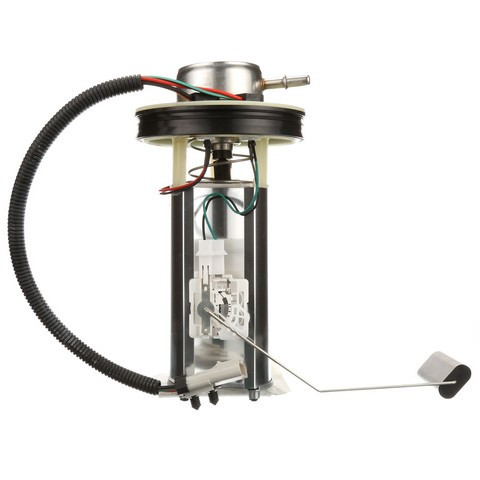

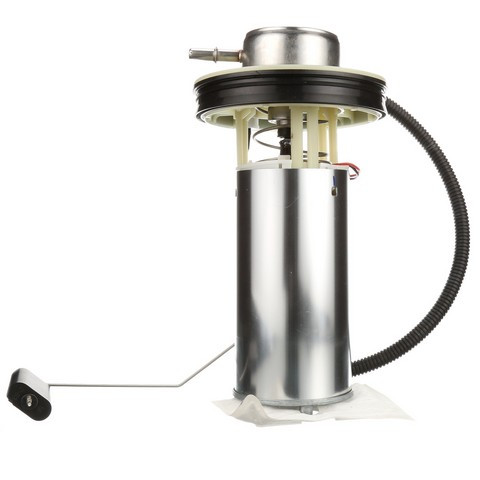

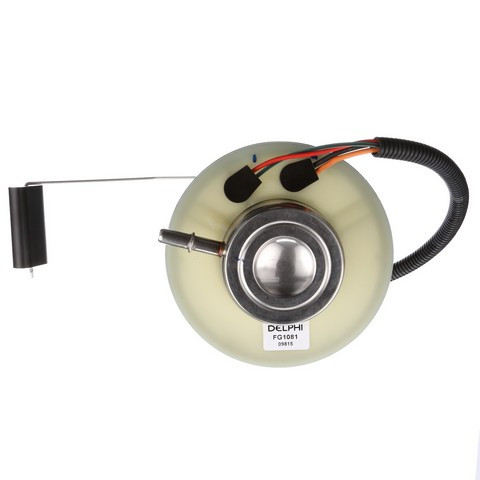

Delphi FG1081 fuel pump module for the 2000-2001 Dodge Dakota 4-cylinder 2.5L and the 2000-2003 Dakota V6 3.9L, V8 4.7L or 5.9L delivers fuel to the engine. This Delphi fuel pump module assembly comes with its float arm and is built to Delphi's OE standards.
- Empty float height and float retention held to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to its vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG1081 fuel pump module
- Also called: fuel pump assembly
- Fits: 2000-2001 Dodge Dakota 4-cylinder 2.5L and the 2000-2003 Dakota V6 3.9L, V8 4.7L or 5.9L
Hard starting, stalling or a gas gauge that reads wrong can have several causes. Before buying, look over the fuse and the electrical connector for damage with the engine off, since a bad one can produce similar trouble. If the fuel pump assembly is the cause, this module replaces it.
Fits
It fits the 2000-2001 Dodge Dakota 4-cylinder 2.5L and the 2000-2003 Dakota V6 3.9L, V8 4.7L or 5.9L, and the truck takes one module.
Specifications
- Quantity per vehicle: 1
- Float arm: included
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 5014 884AF · 5014 884AG · 402-P7128MN · 150-125
4010257 · E7128M · E7128MN · DFG1081 · F3139A · 67711 · M2480509 · P76193M · AFS0847S · RE0847S · C0445M · A33007 · SP7128M · USEP7128M
This part cross-references / interchanges with the following part numbers:
4010257, E7128M, E7128MN, DFG1081, F3139A, 67711, M2480509, P76193M, 5014 884AF, 5014 884AG, AFS0847S, RE0847S, C0445M, 402-P7128MN, A33007, SP7128M, 150-125, USEP7128M
Frequently Asked Questions
Does the Delphi FG1081 fuel pump module fit the V8 5.9L in the 2000-2003 Dodge Dakota?
Yes. Delphi FG1081 fits the 2000-2003 Dodge Dakota with the V8 5.9L, and the truck takes one module.
Does the Delphi fuel module come with the float arm?
Yes. This fuel pump module comes with its float arm and an instruction sheet.
Does the Delphi module draw less current?
Yes. The Delphi FG1081 module uses lower amperage, so it puts less load on the vehicle's electrical system.
Will this fuel pump module help the gas gauge read correctly?
Yes. This fuel pump module's empty float height and float retention match OE specifications, which helps the gas gauge show the right reading.
Do I need to clean the fuel tank before installing this fuel pump module?
Yes. Check and clean the fuel tank first. An instruction sheet comes with the part for the installation steps.
