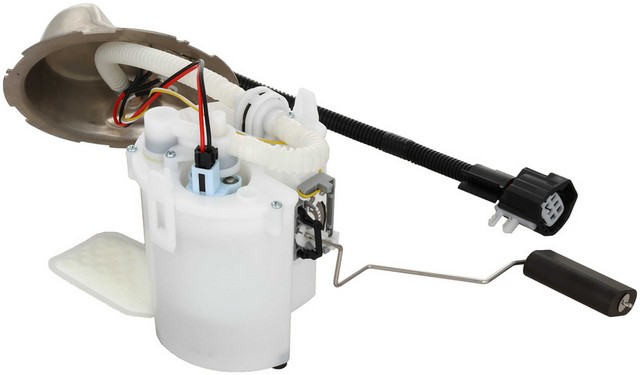

Delphi FG1114 fuel pump module for the 2003-2004 Ford Focus 4-cylinder 2.3L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly replaces the pump and float unit inside the tank and is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1114 fuel pump module
- Also called: fuel pump assembly
- Fits: 2003-2004 Ford Focus 4-cylinder 2.3L
- Condition: New
Hard starting, stalling, sputtering under load or a fuel gauge that reads wrong can mean the fuel pump assembly or its float is worn. Before replacing it, look over the fuel pump fuse and relay with the ignition off, and leave fuel pressure testing to a shop.
Fits
This module is a direct-fit replacement for the 2003-2004 Ford Focus 4-cylinder 2.3L, and the car takes one.
Specifications
Fit and size
- Engine: L4-2.3L
- Quantity per vehicle: 1
Build and materials
- Condition: New
- Float arm: included
- Seal: included
In the box
One fuel pump module assembly with float arm, seal and instruction sheet. This listing is one module, and the Focus takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: 3S4Z 9H307-AB · PFS-203
4010368 · E2368M · E2369 · DFG1114 · 67250 · P76135M · AFS0906S · RE0906S · 1AMFP00036 · C0075M · A30227 · SP1315 · SP2068M · 150168 · USEP2368M
This part cross-references / interchanges with the following part numbers:
4010368, E2368M, E2369, DFG1114, 67250, P76135M, AFS0906S, RE0906S, 3S4Z 9H307-AB, 1AMFP00036, PFS-203, C0075M, A30227, SP1315, SP2068M, 150168, USEP2368M
Frequently Asked Questions
Does the Delphi FG1114 fuel pump module fit the 2003-2004 Ford Focus 4-cylinder 2.3L?
Yes. Delphi FG1114 is listed for the 2003-2004 Ford Focus 4-cylinder 2.3L (L4-2.3L), and that car takes one.
Does the Delphi fuel module come with a float arm and seal?
Yes. The Delphi FG1114 fuel pump module assembly comes with a float arm, a seal and an instruction sheet.
Will the float on this fuel pump module give a correct gas gauge reading?
Yes. Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
How much load does this fuel pump put on the electrical system?
It draws lower amperage, which puts less load on the vehicle's electrical system.
Should I clean the tank when I fit this Delphi module?
Yes. Check and clean the fuel tank during installation, and follow the instruction sheet that comes with the part.
