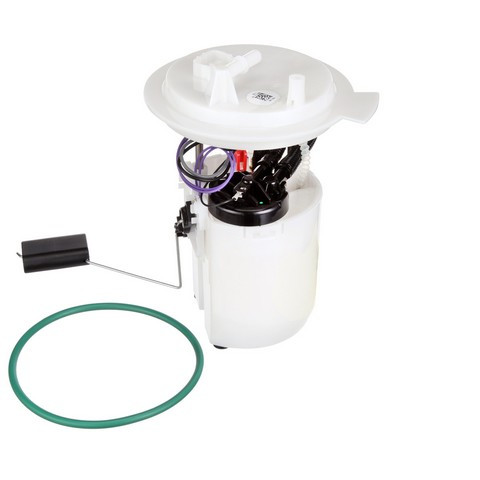

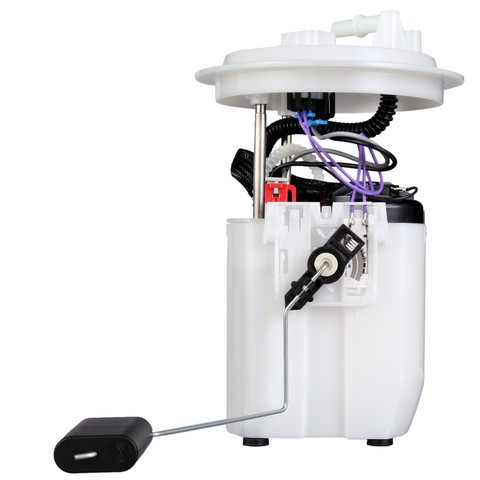

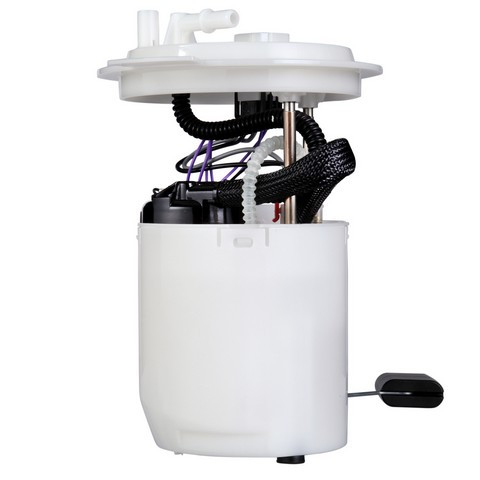

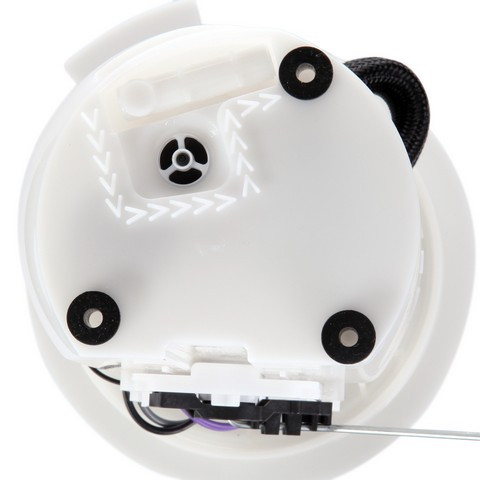

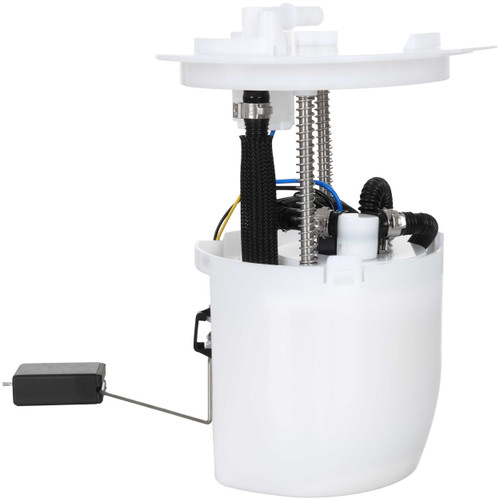

Delphi FG1143 fuel pump module for the 2006-2009 Ford Fusion V6 3.0L, the 2010-2012 Fusion V6 3.5L and other vehicles carries fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards.
- Validated, tested and matched to the right vehicle application
- Empty float height and float retention for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1143 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006-2009 Ford Fusion V6 3.0L, the 2010-2012 Fusion V6 3.5L and other vehicles
- Condition: New
Hard starting, stalling or a whine from the tank can mean a worn fuel pump module. A clogged fuel filter, a weak fuel pump relay, a blown fuse or damaged wiring can be behind these symptoms too, so track down the cause before you buy a module. Only one module is needed per car, and this listing is one.
Fits
It is listed for a wide range of Ford, Lincoln, Mazda and Mercury models, including the 2007-2012 Lincoln MKZ V6 3.5L and the 2009-2010 Mazda 6 V6 3.7L. If your car is not named here, you can find its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Pieces per listing: 1
Build and materials
- Construction: module assembly with float arm
- Seal: included
- Condition: New
In the box
One fuel pump module assembly with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the module for the installation steps.
Frequently Asked Questions
Will Delphi FG1143 fit the 2007-2012 Lincoln MKZ V6 3.5L?
Yes. Delphi FG1143 is listed for the 2007-2012 Lincoln MKZ V6 3.5L and also for the 2009-2010 Mazda 6 V6 3.7L.
Does the Delphi fuel module come with a float arm and seal?
Yes. This fuel pump module comes with the float arm, a seal and an instruction sheet.
How does the float on the Delphi module affect the fuel gauge?
Empty float height and float retention on this fuel pump module match OE specifications, which gives a correct gas gauge reading.
Could a whine from the tank mean this fuel pump module is worn?
Yes, it can. A whine from the tank, hard starting or stalling can be signs of a worn module, and a shop can test the fuel system to confirm.
Does the Delphi FG1143 need anything done to the fuel tank before installing?
Yes. Check and clean the fuel tank before installing the Delphi FG1143, and follow the included instruction sheet for the steps.
