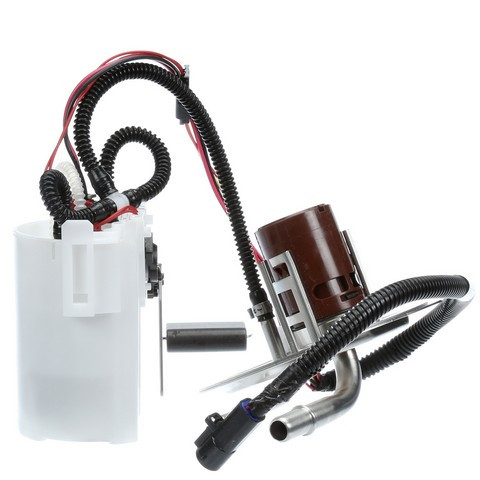

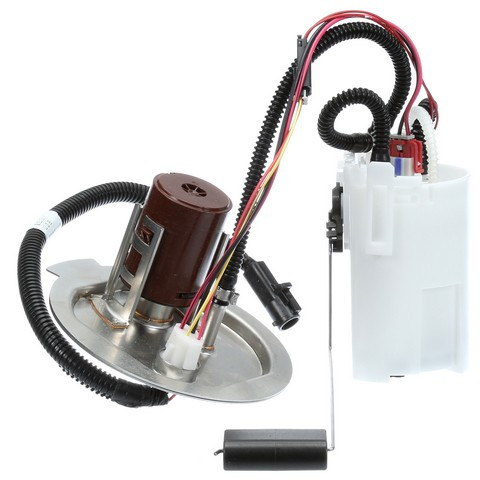

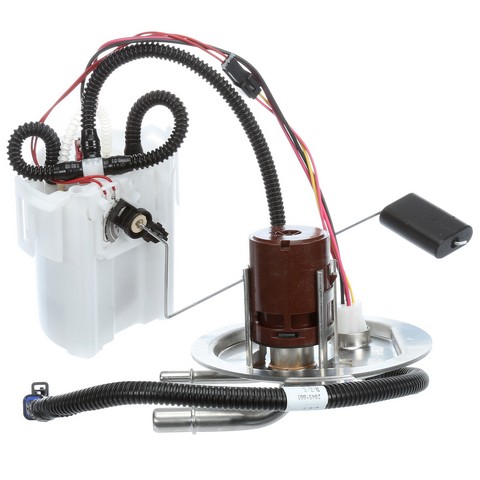

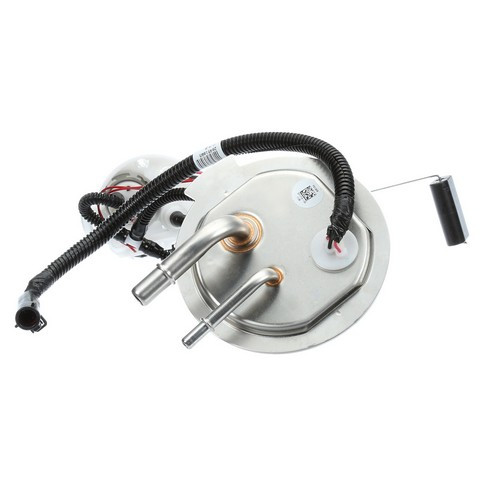

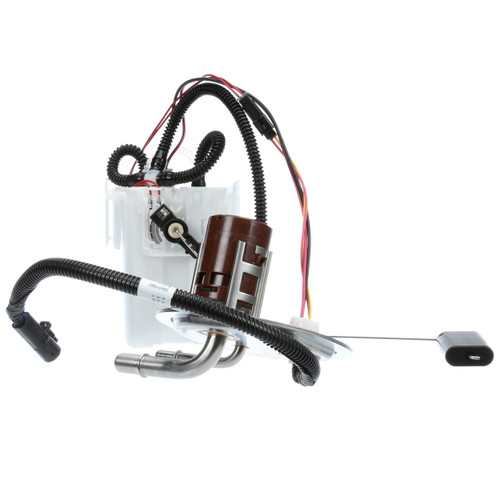

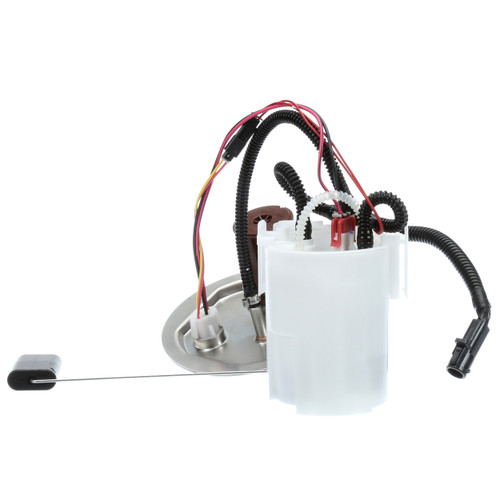

Delphi FG1208 fuel pump module for the 2008-2010 Ford F-250 Super Duty V8 5.4L or V10 6.8L and other vehicles carries fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards.
- Lower amperage, so the pump puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
- Empty float height and float retention set for a correct gas gauge reading
Quick facts
- Part: Delphi FG1208 fuel pump module
- Also called: fuel pump assembly
- Fits: 2008-2010 Ford F-250 Super Duty V8 5.4L or V10 6.8L and other vehicles
A worn fuel pump module can show up as hard starting, sputtering under load or a gas gauge that reads wrong. Those signs alone do not prove the module is the problem, since a clogged fuel filter can bring on a hard start too. If the module is the cause, this one replaces it.
Fits
The fitment also covers the 2008-2010 Ford F-350 Super Duty V8 5.4L or V10 6.8L and the 2008-2010 Ford F-450 Super Duty V10 6.8L.
Specifications
- Quantity per vehicle: 1
- Float arm: included
In the box

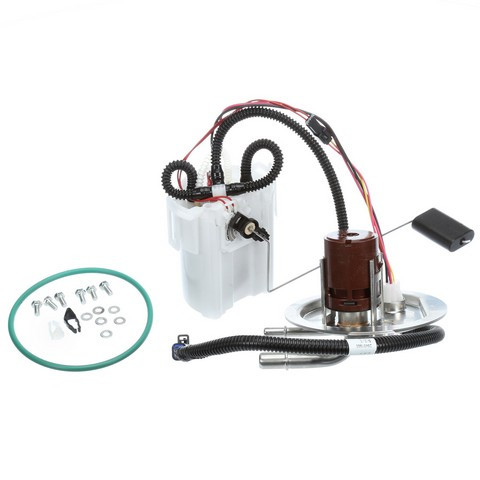

One fuel pump module with float arm, seal, clips, screws and washers, and an instruction sheet. This listing holds one module, and these trucks take one.
Installation notes
- Check and clean the fuel tank during installation.
- An instruction sheet comes with the module for the steps.
Interchange: 7C3Z 9H307-A · 8C3Z 9H307-B · PFS-509
4010677 · E2314 · E2509M · CFG1208 · F1510A · 66066 · P77123M · E16028 · SP2303M · USEP2509M
This part cross-references / interchanges with the following part numbers:
4010677, E2314, E2509M, CFG1208, F1510A, 66066, P77123M, 7C3Z 9H307-A, 8C3Z 9H307-B, PFS-509, E16028, SP2303M, USEP2509M
Frequently Asked Questions
Does the Delphi fuel pump module fit the 2008-2010 Ford F-250 Super Duty V8 5.4L or V10 6.8L?
Yes. Delphi FG1208 is listed for the 2008-2010 Ford F-250 Super Duty V8 5.4L or V10 6.8L.
What is included with this Delphi fuel pump module assembly?
Delphi FG1208 comes with the float arm, seal, clips, screws and washers, and an instruction sheet. This listing holds one module, and the truck takes one.
Does the float on this Delphi fuel module match OE specifications?
Yes. Empty float height and float retention match OE specifications for a correct gas gauge reading. The float arm is included with Delphi FG1208.
How does the lower amperage of this Delphi module affect the electrical system?
The pump draws less load on the vehicle's electrical system because of its lower amperage.
Should the fuel tank be cleaned when installing this fuel pump module?
Yes. Check the tank and clean it when you install Delphi FG1208, and use the instruction sheet that comes with the part for the steps.
