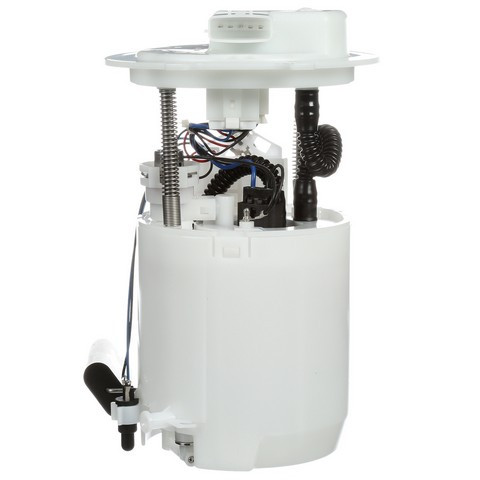

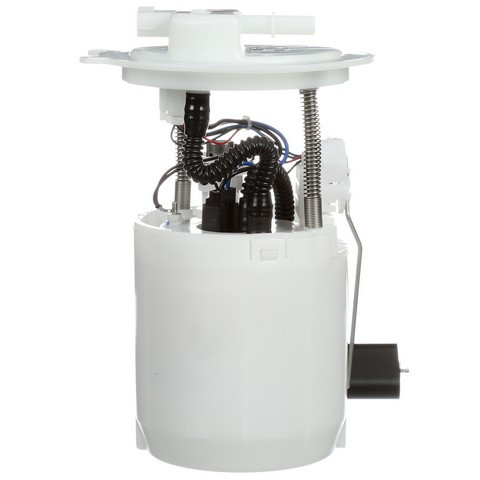

Delphi FG1149 fuel pump module for the 2007-2012 Nissan Versa 4-cylinder 1.8L, the 2009-2011 Versa 4-cylinder 1.6L and other vehicles delivers fuel from the tank to the engine. This Delphi fuel pump module assembly comes with its float arm and a seal.
- Lower amperage draw puts less load on the vehicle's electrical system
- Empty float height and float retention are set for a correct gas gauge reading
- Validated and tested for its vehicle application
- Design and durability aimed at lowering failure rates
Quick facts
- Part: Delphi FG1149 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2007-2012 Nissan Versa 4-cylinder 1.8L, the 2009-2011 Versa 4-cylinder 1.6L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the module is worn. Before you replace the fuel pump assembly, rule out a blown fuse, a bad relay and damaged wiring, since any of them can also make an engine hard to start.
Fits
The 2009-2014 Nissan Cube 4-cylinder 1.8L also takes this module, one per car, as do the Versa engines named above.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box

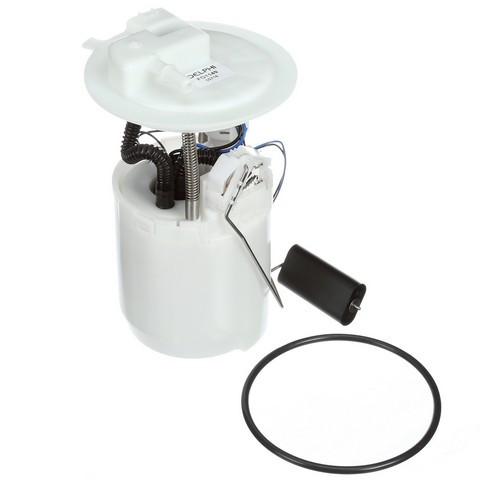

One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
This part cross-references / interchanges with the following part numbers:
4010648, 4011424, E8855M, CFG1149, F4866A, M2480552, P76612M, P77095M, 17040-1FC0A, 17040-1FC0B, 17040-9EG0B, 17040-9EG0C, 17040-EM30A, 17040-EM31A, 17040-ZR70B, 25060-1FC0A, 25060-1FC1A, 25060-1FC1B, A38009, C0701M, SP4022M, SP4099M, USEP8855M
Frequently Asked Questions
Is the Delphi fuel pump module right for the 2009-2011 Nissan Versa 4-cylinder 1.6L?
Yes. Delphi FG1149 fits the 2009-2011 Nissan Versa 4-cylinder 1.6L, and that car takes one module.
Does the Delphi fuel module come with a float arm and seal?
Yes. Delphi FG1149 comes with the float arm, a seal and an instruction sheet.
How does the Delphi module keep the gas gauge reading correct?
Its empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Can a fuel gauge that reads wrong mean this fuel pump module is failing?
It can. A wrong gauge reading, stalling or hard starting can all be signs of a worn module, and a shop can test the fuel system safely.
Does the Delphi FG1149 need anything done to the tank before it goes in?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with the module.
