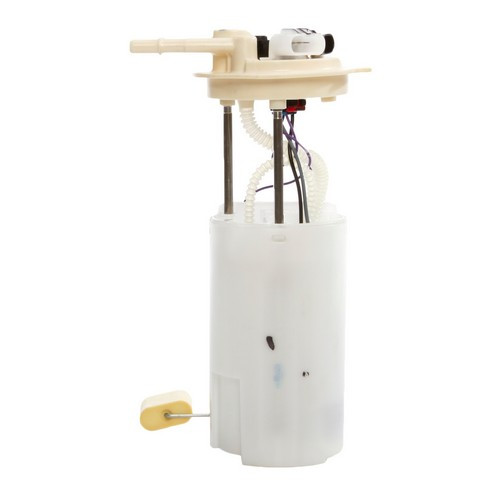

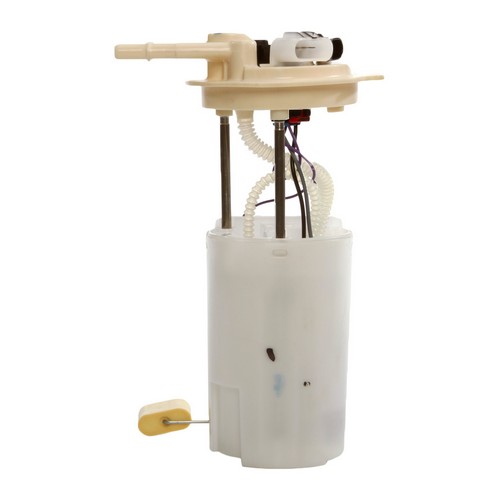

Delphi FG0344 fuel pump module for the 2004 Chevrolet Venture and other vehicles delivers fuel from the tank to the engine.
- Built to the same Delphi standards as every Delphi fuel pump
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Delphi fuel pump module is validated, tested and matched to the right vehicle application
Quick facts
- Part: Delphi FG0344 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004 Chevrolet Venture and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the fuel pump module, also called a fuel pump assembly, is worn. Before you replace it, rule out a fuse, relay, wiring fault or clogged fuel filter, because each of those can produce similar trouble.
Fits
This fuel pump module fits the 2004 Chevrolet Venture and the 2004 Pontiac Montana. It is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm, seal, splice kit and instruction sheet. This listing is one module, and the 2004 Chevrolet Venture takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 953-5127
MU1160 · MU1318 · MU1798 · E3539M · E3598M · E9539M · DFG0344 · F2540A · 67455 · 67456 · 67480 · P74900M · AFS0830S · RE0830S · 19180125 · 25349611 · 25376242 · 88964526 · 1AMFP00166 · A30136 · SP61076M · SP61161M
This part cross-references / interchanges with the following part numbers:
MU1160, MU1318, MU1798, E3539M, E3598M, E9539M, DFG0344, F2540A, 67455, 67456, 67480, P74900M, 953-5127, AFS0830S, RE0830S, 19180125, 25349611, 25376242, 88964526, 1AMFP00166, A30136, SP61076M, SP61161M
Frequently Asked Questions
Is the Delphi fuel pump module assembly right for the 2004 Chevrolet Venture?
Yes. Delphi FG0344 fits the 2004 Chevrolet Venture, and it also fits the 2004 Pontiac Montana.
What comes with this Delphi fuel module?
The Delphi FG0344 comes as one fuel pump module with a float arm, seal, splice kit and instruction sheet.
Does the Delphi module draw less current from the electrical system?
Yes. It is built for a lower amperage draw, so it puts less load on the vehicle's electrical system.
Can a wrong gas gauge reading come from the fuel pump module's float?
Yes, if the float arm is the cause, since the float reports the tank level to the gauge. Other faults can make a gauge misread too.
Does the Delphi FG0344 need the fuel tank cleaned first?
Yes. Check and clean the fuel tank before fitting the Delphi FG0344, and follow the instruction sheet that comes with the module.
