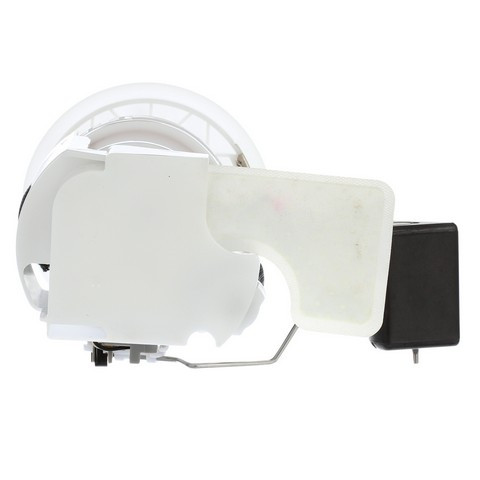

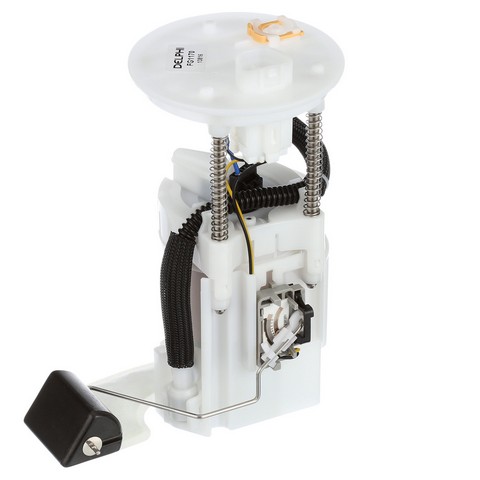

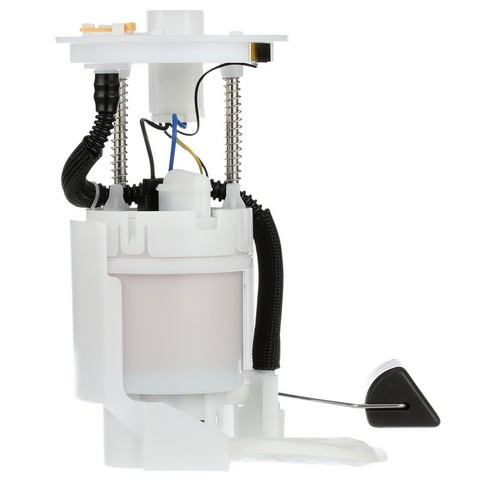

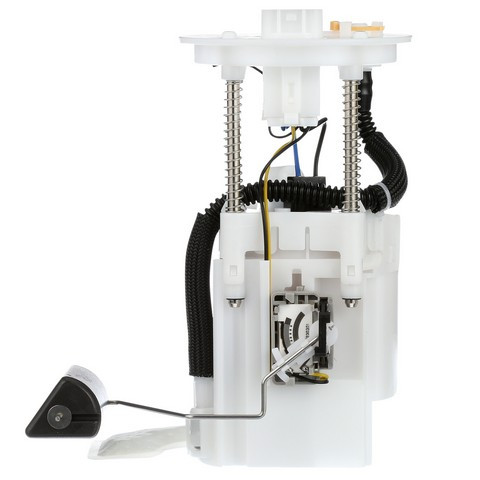

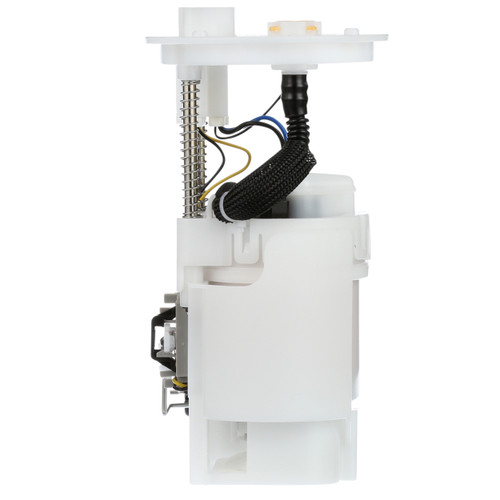

Delphi FG1170 fuel pump module for the 2008-2009 Toyota Camry 4-cylinder 2.4L and the 2010-2011 Camry 4-cylinder 2.5L pumps fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.
- Empty float height and float retention held to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability that give lower failure rates
- Float arm and seal included with the module
Quick facts
- Part: Delphi FG1170 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2008-2009 Toyota Camry 4-cylinder 2.4L and the 2010-2011 Camry 4-cylinder 2.5L
- Condition: New
A failing fuel pump module can show up as hard starting, sputtering under load or a fuel gauge that reads wrong. A clogged fuel filter, a bad relay or fuse, damaged wiring or a faulty gauge can be behind the same signs, so find the cause first before swapping in a new fuel pump assembly.
Fits
This module fits the 2008-2009 Toyota Camry 4-cylinder 2.4L and the 2010-2011 Camry 4-cylinder 2.5L.
Specifications
- Quantity per vehicle: 1
- Engine: L4-2.4L (2008-2009), L4-2.5L (2010-2011)
- Includes: float arm and seal
- Condition: New
In the box
One fuel pump module with float arm and seal, plus an instruction sheet. This listing is a single module, which is all either engine needs.
Installation notes
- Check and clean the fuel tank before installing.
- An instruction sheet comes with the module.
Interchange: 77020-06131
4011593 · E8937M · DFG1170 · P72189 · P76796M · C0722M · A30270 · SP9044M
This part cross-references / interchanges with the following part numbers:
4011593, E8937M, DFG1170, P72189, P76796M, C0722M, A30270, SP9044M, 77020-06131
Frequently Asked Questions
Is the Delphi FG1170 fuel pump module right for the 2010-2011 Toyota Camry 4-cylinder 2.5L?
Yes. Delphi FG1170 fits the 2010-2011 Toyota Camry 4-cylinder 2.5L and also the 2008-2009 Camry 4-cylinder 2.4L.
Does the Delphi fuel module include the float arm and seal?
Yes. Delphi FG1170 comes with the float arm, a seal and an instruction sheet, along with the fuel pump module itself.
Does the float on this Delphi module affect the gas gauge reading?
Yes. Its empty float height and float retention match OE specifications, which is intended to give a correct gas gauge reading.
Should the fuel tank be cleaned before installing this module?
Yes. Check and clean the tank before installing this module. An instruction sheet comes in the box.
Does the Delphi fuel pump module replace number 77020-06131?
Yes. 77020-06131 is on the interchange list for Delphi FG1170, along with 4011593 and E8937M.
