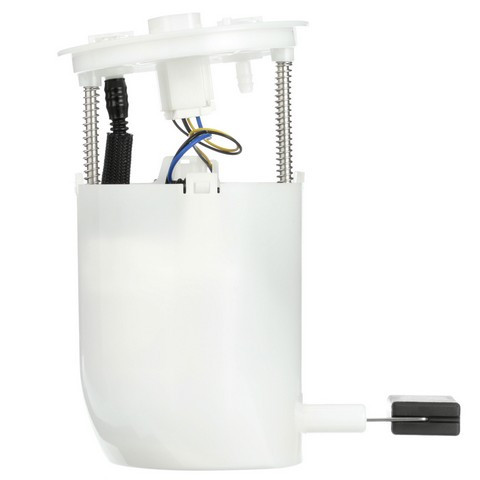

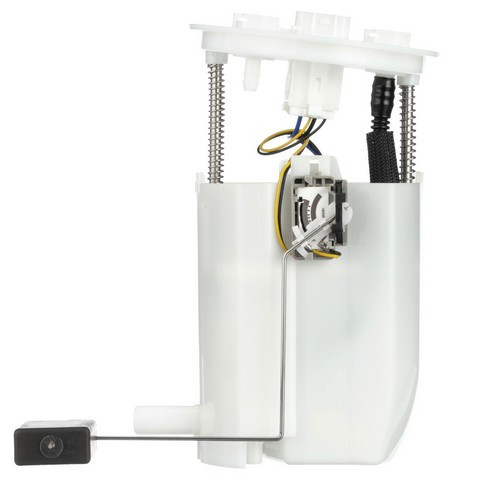

Delphi FG1174 fuel pump module for the 2006-2013 Lexus IS250 V6 2.5L and other vehicles moves fuel from the tank toward the engine. Also called a fuel pump assembly, it carries a float arm that feeds the gas gauge.
- Empty float height and float retention match specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1174 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006-2013 Lexus IS250 V6 2.5L and other vehicles
- Condition: New
Hard starting, stalling, a gas gauge that reads wrong or a whine from the tank can mean the pump or float arm is wearing out. Before you replace the module, rule out a blown fuse, a bad relay or a clogged fuel filter, since any of them can also bring on hard starting.
Fits
The Delphi fuel pump module is built to Delphi's OE standards and fits the 2006-2013 Lexus IS250 V6 2.5L and the 2006-2013 Lexus IS350 V6 3.5L; each takes one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box

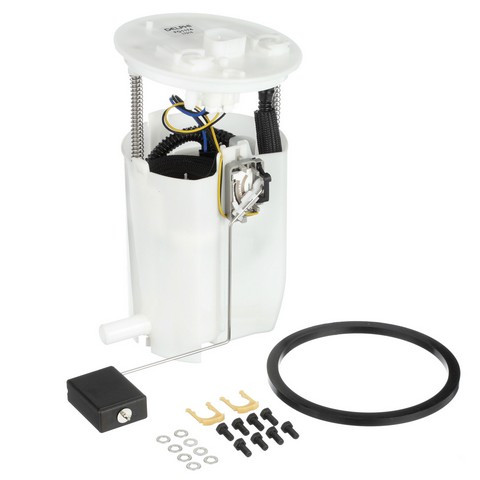

One fuel pump module with float arm, seal, bolts and washers, clips and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- An instruction sheet comes with the module for the steps.
Interchange: 23217-31100 · 77020-53080 · 77020-53081 · 77020-53082 · 77020-53083 · 77020-53084
4010605 · E8812M · CFG1174 · M2520992 · P76896M · A33224 · SP9046M
This part cross-references / interchanges with the following part numbers:
4010605, E8812M, CFG1174, M2520992, P76896M, A33224, SP9046M, 23217-31100, 77020-53080, 77020-53081, 77020-53082, 77020-53083, 77020-53084
Frequently Asked Questions
Is the Delphi fuel pump module assembly FG1174 right for a 2006-2013 Lexus IS350 V6 3.5L?
Yes. Delphi FG1174 fits the 2006-2013 Lexus IS350 V6 3.5L and the 2006-2013 Lexus IS250 V6 2.5L, with one module per vehicle.
Does the Delphi fuel module come with a seal and bolts?
Yes. Delphi FG1174 includes the float arm, seal, bolts and washers, clips and an instruction sheet.
How does this Delphi module affect the gas gauge reading?
Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Do I need to prepare the fuel tank before installing this fuel pump module?
Yes. Check and clean the fuel tank first, and use the included instruction sheet for the installation steps.
Does Delphi FG1174 replace number 23217-31100?
Yes. 23217-31100 is one of the numbers this module replaces, along with 77020-53080 and the others on the Interchange line.
