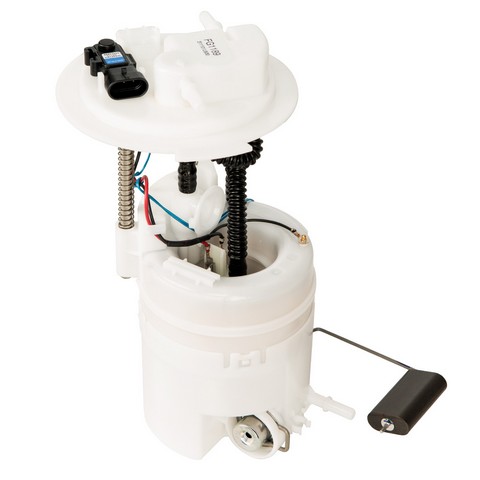

Fuel Pump Module for 2011-2013 Kia Sorento & More - Delphi FG1189

Delphi FG1189 fuel pump module for the 2011-2013 Kia Sorento V6 3.5L and other vehicles moves fuel from the tank to the engine. It is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.

• Float arm set for a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated, tested and matched to the right vehicle application
• Lower failure rates from its design and durability

Quick facts

• Part: Delphi FG1189 fuel pump module
• Also called: fuel pump assembly
• Fits: 2011-2013 Kia Sorento V6 3.5L and other vehicles
• Condition: New

Hard starting, sputtering under load or an erratic fuel gauge can point to a worn Delphi fuel pump module, also called a fuel pump assembly. Before you replace it, rule out a clogged fuel filter, a bad relay or fuse and wiring faults, because each of those can mimic a failing pump.

Fits

It fits the 2011-2013 Kia Sorento V6 3.5L and the 2010-2012 Hyundai Santa Fe V6 3.5L. The 2010-2012 Hyundai Santa Fe V6 3.5L takes one.

Specifications

• Quantity per vehicle: 1
• Float arm: included
• Condition: New

In the box

One fuel pump module with float arm and one instruction sheet.

Installation notes

• Check and clean the fuel tank before installing the module.
• The instruction sheet covers the installation steps.

Interchange: 31110-1U500 · 35301-1U500
4010791 · E9030M · DFG1189 · P76775M · A30452 · SP3043M · USEP9030M
