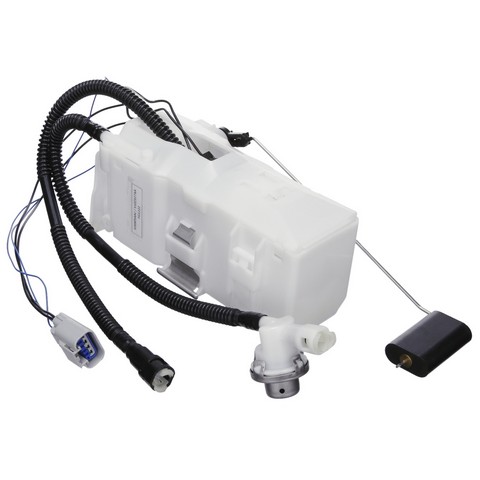

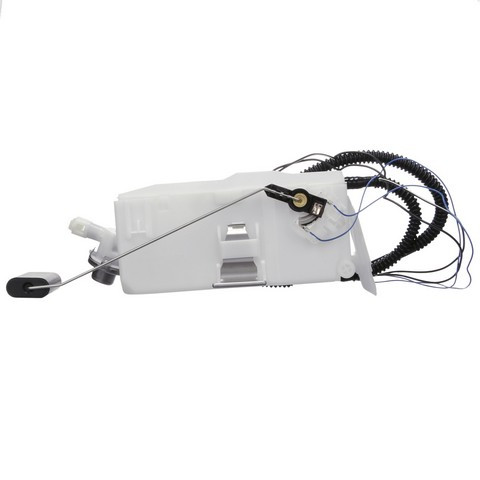

Delphi FG1222 fuel pump module for the 2002-2003 Jeep Liberty 4-cylinder 2.4L and the 2002-2004 Liberty V6 3.7L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.
- Empty float height and float retention are held to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability that give lower failure rates
Quick facts
- Part: Delphi FG1222 fuel pump module
- Also called: fuel pump assembly
- Fits: 2002-2003 Jeep Liberty 4-cylinder 2.4L and the 2002-2004 Liberty V6 3.7L
- Condition: New
A worn fuel pump module, also sold as a fuel pump assembly, can show up as hard starting, stalling or a gas gauge that reads wrong. These signs alone do not prove the module is at fault, since a clogged fuel filter is another common source of them.
Fits
This module fits the 2002-2003 Jeep Liberty 4-cylinder 2.4L and the 2002-2004 Liberty V6 3.7L. The listing is one module, and the 2002-2004 Jeep Liberty V6 3.7L takes one, as does the 2002-2003 Liberty 4-cylinder 2.4L.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
- Seal: included
In the box
One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 5069 054AA · 5069 054AC · 5102 527AA
4010316 · E7162M · DFG1222 · F3173A · 67720 · M2496264 · P76255M · C0464M · A27054 · SP7026M · USEP7162M
This part cross-references / interchanges with the following part numbers:
4010316, E7162M, DFG1222, F3173A, 67720, M2496264, P76255M, 5069 054AA, 5069 054AC, 5102 527AA, C0464M, A27054, SP7026M, USEP7162M
Frequently Asked Questions
Does the Delphi fuel module fit the 2002-2004 Jeep Liberty V6 3.7L?
Yes. Delphi FG1222 fits the 2002-2004 Jeep Liberty V6 3.7L, and it also fits the 2002-2003 Liberty 4-cylinder 2.4L.
What comes with the Delphi module?
Delphi FG1222 comes with a float arm, a seal and an instruction sheet.
How does this Delphi fuel pump module keep the gas gauge accurate?
This module's empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Does this fuel pump module put less load on the electrical system?
Yes. This module is built with lower amperage draw, so it puts less load on the vehicle's electrical system.
Should the tank be cleaned before installing this fuel pump module?
Yes. Check and clean the fuel tank before installing Delphi FG1222; the instruction sheet in the box covers the steps.
