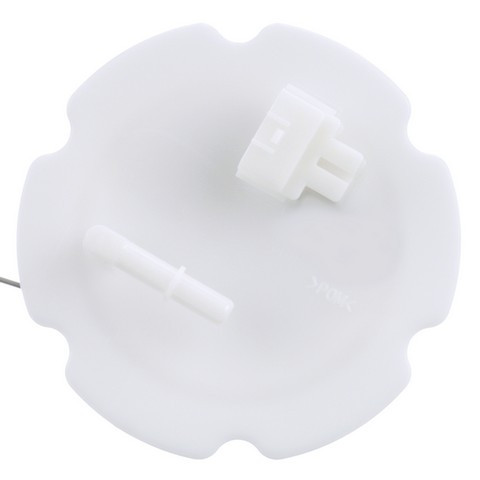

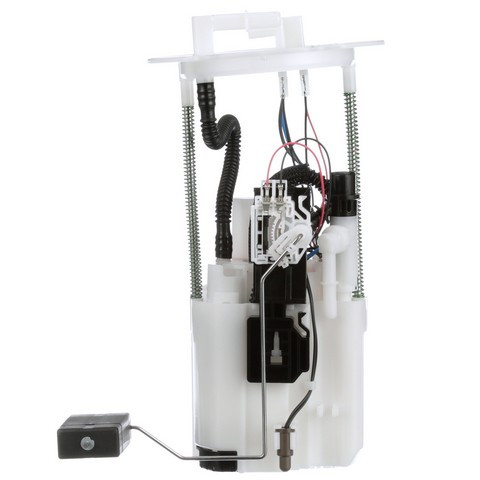

Delphi FG1630 fuel pump module for the 2014-2017 Infiniti QX50 V6 3.7L and other vehicles moves fuel from the tank to the engine. Delphi builds its fuel pumps to its own OE standards, and the module, also called a fuel pump assembly, comes with its float arm.
- Lower amperage draw puts less load on the vehicle's electrical system
- Empty float height and float retention are set for a correct gas gauge reading
- Validated, tested and matched to the right vehicle application
- Design and durability that give lower failure rates
Quick facts
- Part: Delphi FG1630 fuel pump module
- Also called: fuel pump assembly
- Fits: 2014-2017 Infiniti QX50 V6 3.7L and other vehicles
- Condition: New
Hard starting, stalling or an erratic fuel gauge can mean the module is worn. A clogged fuel filter, a faulty relay or a dirty tank can be behind the same signs too, so find the cause before buying.
Fits
This module fits the 2014-2017 Infiniti QX50 V6 3.7L, the 2013 Infiniti EX37 V6 3.7L and the 2008-2012 Infiniti EX35 V6 3.5L, and each takes one.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank when installing the module.
- Follow the instruction sheet for the installation steps.
Interchange: 17040-1BA0D
4011531 · E8931M · CFG1630 · P77332M · A46694 · SP4140M · USEP8931M
This part cross-references / interchanges with the following part numbers:
4011531, E8931M, CFG1630, P77332M, 17040-1BA0D, A46694, SP4140M, USEP8931M
Frequently Asked Questions
Does the Delphi fuel pump module assembly FG1630 fit the 2008-2012 Infiniti EX35 V6 3.5L?
Yes. Delphi FG1630 is listed for the 2008-2012 Infiniti EX35 V6 3.5L, and that car takes one module.
Does the Delphi fuel module come with the float arm?
Yes. Delphi FG1630 is the module with its float arm, plus one instruction sheet.
Will the Delphi fuel pump module give a correct gas gauge reading?
Empty float height and float retention match OE specifications, which gives a correct gas gauge reading. Its lower amperage also draws less load on the electrical system.
Does the fuel tank need attention when I install a Delphi module?
Yes. Check and clean the fuel tank during installation of this fuel pump module. The instruction sheet in the box covers the steps.
What signs can a worn fuel pump module cause?
Hard starting, engine stalling or an erratic fuel gauge can mean the module is worn. A shop can test fuel pressure to help confirm it.
