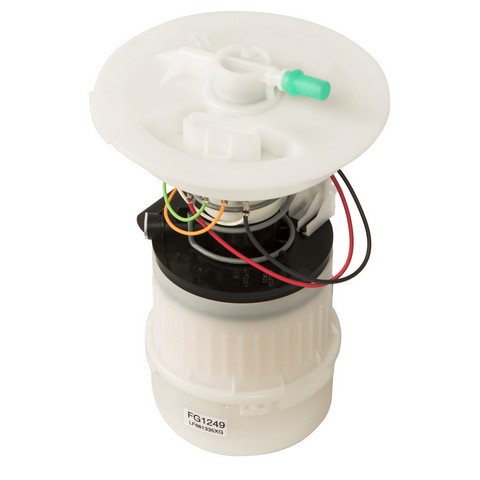

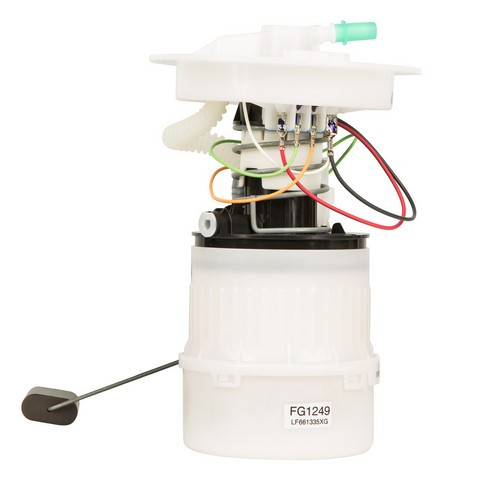

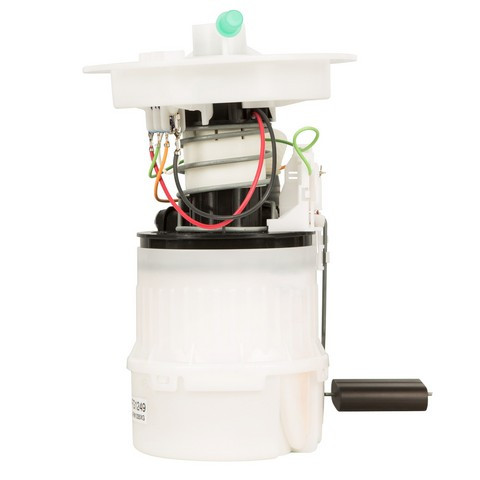

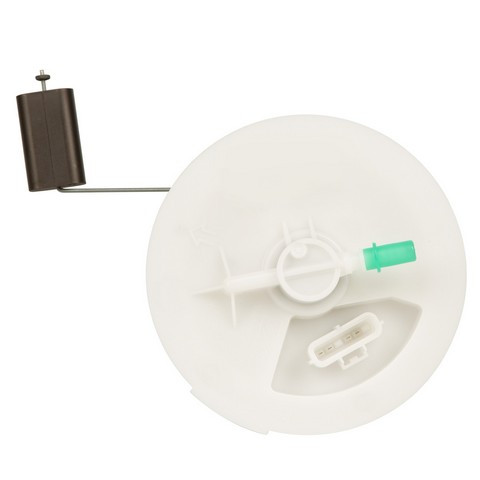

Delphi FG1249 fuel pump module for the 2004-2009 Mazda 3 4-cylinder 2.0L or 2.3L carries fuel from the tank to the engine. This Delphi fuel pump module assembly includes the float arm that tells the gauge how much fuel is left.
- Empty float height and float retention that give a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the vehicle application
- Design and durability that give lower failure rates
Quick facts
- Part: Delphi FG1249 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2009 Mazda 3 4-cylinder 2.0L or 2.3L
- Condition: New
Hard starting, sputtering under load or a fuel gauge that reads wrong can mean the fuel pump assembly is wearing out. A clogged fuel filter, a bad fuel pump relay or damaged wiring can show the same signs, so find the cause before buying.
Fits
This module fits the 2004-2009 Mazda 3 4-cylinder 2.0L or 2.3L, and each of those engines takes one. Its empty float height and float retention match OE specifications, and it is built to Delphi's OE standards.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box
One fuel pump module assembly with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: LF66-13-35X · LF66-13-35XA · LF66-13-35XD · LF66-13-35XE · LF66-13-35XF · LF66-13-35XG
4010490 · E8591M · CFG1249 · 67269 · P76308M · A33161 · C0606M · SP4052M · USEP8591M
This part cross-references / interchanges with the following part numbers:
4010490, E8591M, CFG1249, 67269, P76308M, A33161, LF66-13-35X, LF66-13-35XA, LF66-13-35XD, LF66-13-35XE, LF66-13-35XF, LF66-13-35XG, C0606M, SP4052M, USEP8591M
Frequently Asked Questions
Does the Delphi fuel pump module FG1249 fit the 2004-2009 Mazda 3 4-cylinder 2.0L or 2.3L?
Yes. Delphi FG1249 is listed for the 2004-2009 Mazda 3 with the 4-cylinder 2.0L or 2.3L engine, and each takes one.
What comes with the Delphi fuel module?
The listing is one fuel pump module assembly with its float arm, plus an instruction sheet.
Will this Delphi module give a correct gas gauge reading?
Yes. Delphi FG1249 has empty float height and float retention that match OE specifications, which supports a correct gas gauge reading.
Is there anything to do to the tank before installing this fuel pump module?
Check and clean the fuel tank before the new module goes in. An instruction sheet comes with the part for the installation steps.
Does this module replace the number LF66-13-35X?
Yes. LF66-13-35X is one of the numbers this module replaces. The other cross-reference numbers are on the Interchange line.
