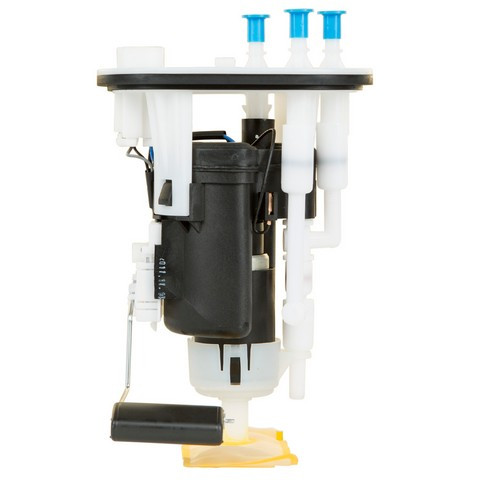

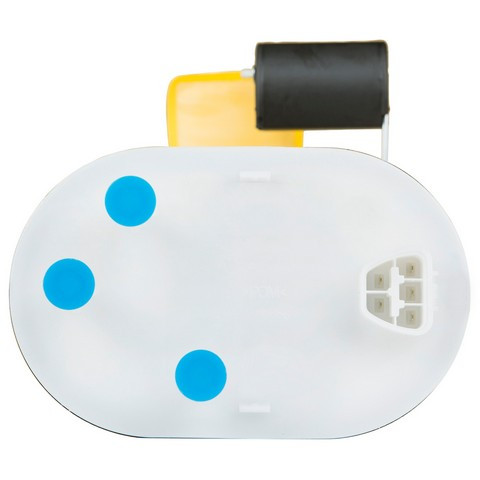

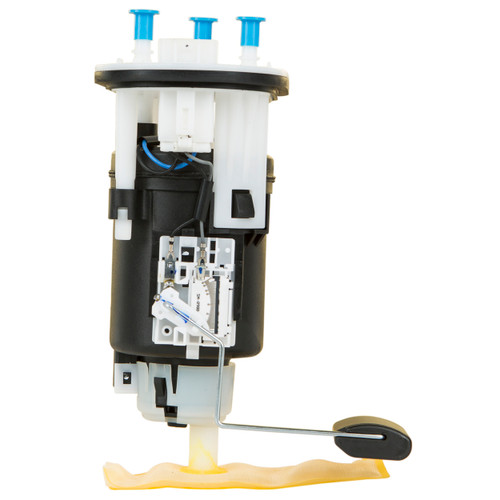

Delphi FG1258 fuel pump module for the 2003-2006 Hyundai Santa Fe V6 2.7L carries fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested against the vehicle application it is matched to
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1258 fuel pump module
- Also called: fuel pump assembly
- Fits: 2003-2006 Hyundai Santa Fe V6 2.7L
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can come from a worn module, which some catalogs list as a fuel pump assembly. Before you replace it, rule out a blown fuse, a faulty relay or a clogged fuel filter, since any of those can look the same from the driver's seat.
Fits
This module is a direct-fit replacement for the 2003-2006 Hyundai Santa Fe V6 2.7L, which takes one per vehicle.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box

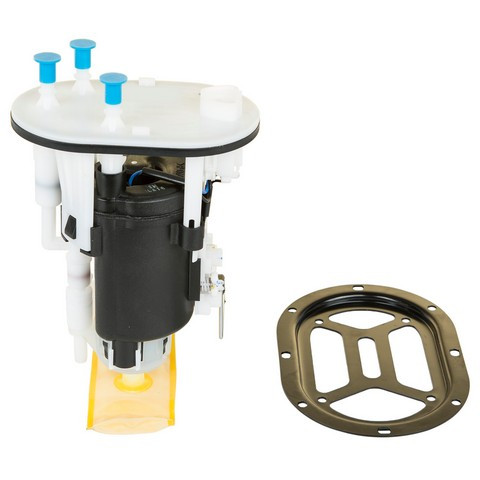

One fuel pump module with float arm, one lock ring and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet that comes with the part covers the steps.
Interchange: 152-0998 · STS-126 · 951-0008 · 31110-26750 · 31110-26755 · 31110-26755DS · 31112-26350
4010445 · E2518 · E8663M · CFG1258 · 67919 · 69856 · P76183 · P76405M · AFS0894P · RE0894P · A33147 · C0637M · SP3015M · USEP8663M
This part cross-references / interchanges with the following part numbers:
4010445, E2518, E8663M, CFG1258, 152-0998, 67919, 69856, P76183, P76405M, STS-126, 951-0008, AFS0894P, RE0894P, 31110-26750, 31110-26755, 31110-26755DS, 31112-26350, A33147, C0637M, SP3015M, USEP8663M
Frequently Asked Questions
Is the Delphi FG1258 right for the 2003-2006 Hyundai Santa Fe V6 2.7L?
Yes. Delphi FG1258 is listed for the 2003-2006 Hyundai Santa Fe V6 2.7L, and that vehicle takes one module.
Does this Delphi fuel module come with a lock ring and float arm?
Yes. Delphi FG1258 includes the float arm, a lock ring and an instruction sheet along with the fuel pump module.
How does the float on this fuel pump module affect the gas gauge?
Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Can a gas gauge that reads wrong come from the fuel pump module?
Yes, it can, if the float is the cause, and a no-start or stall can also trace to a failing pump. A shop can test the fuel system.
Do I need to clean the tank before fitting this Delphi module?
Yes. The tank should be checked and cleaned first, and the included instruction sheet covers the steps.
