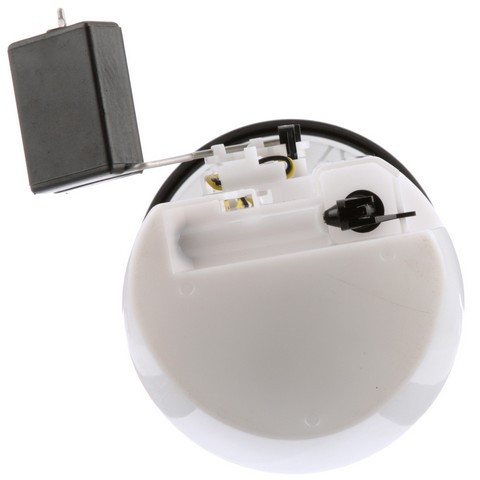

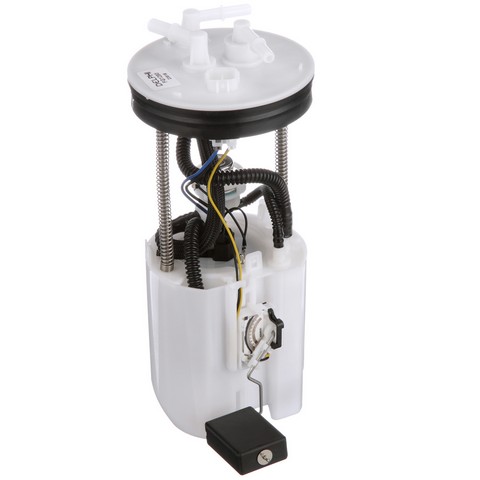

Fuel Pump Module for 2009-2013 Honda Fit - Delphi FG1280

Delphi FG1280 fuel pump module for the 2009-2013 Honda Fit 4-cylinder 1.5L sends fuel from the tank to the engine. Some shops call this Delphi fuel pump module assembly a fuel pump assembly.

• Empty float height and float retention are set for a correct fuel gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated, tested and matched to the right vehicle application
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG1280 fuel pump module
• Also called: fuel pump assembly
• Fits: 2009-2013 Honda Fit 4-cylinder 1.5L
• Condition: New

Hard starting, stalling or a fuel gauge that reads wrong can mean the module is worn. A blown fuse or a bad relay can look much the same, so look at both with the engine off before you replace the module; a fuel pressure test is a job for a shop.

Fits

This is a direct-fit replacement for the 2009-2013 Honda Fit 4-cylinder 1.5L, which takes one. Delphi builds its fuel pumps to its OE standards.

Specifications

• Engine: L4-1.5L
• Quantity per vehicle: 1
• Condition: New

In the box

One fuel pump module with float arm, seal, lock ring and an instruction sheet.

Installation notes

• Check and clean the fuel tank during installation.
• An instruction sheet comes with the module for the steps.

Interchange: 17045-TK6-A00
4010722 · E8943M · DFG1280 · P76773M · A27151 · SP8050M · USEP8943M
