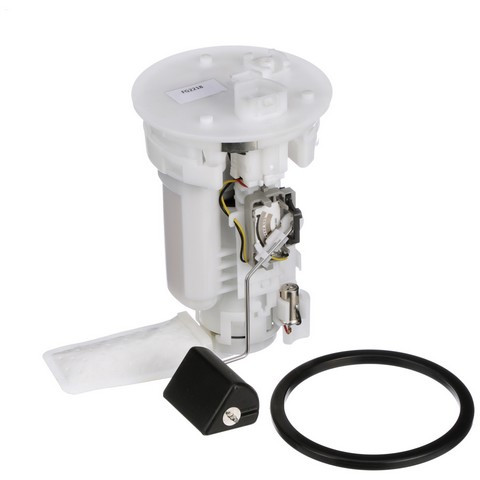

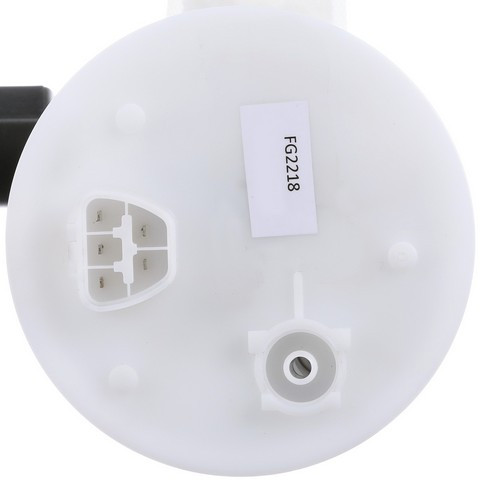

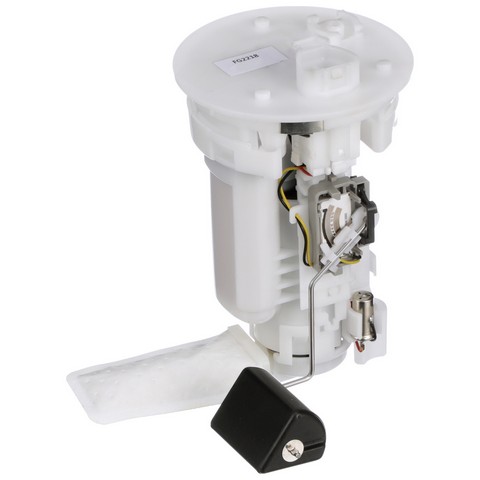

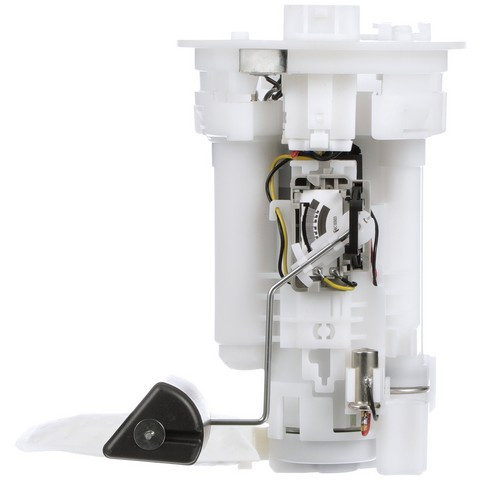

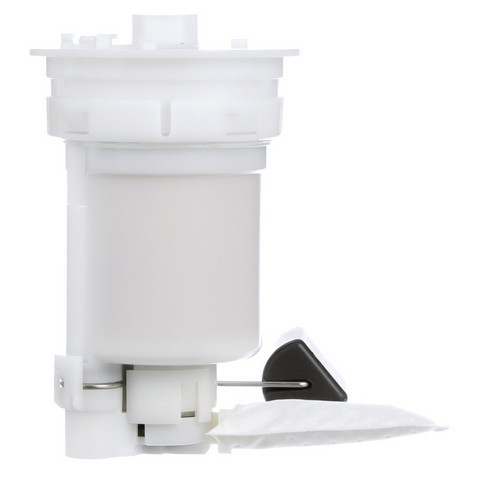

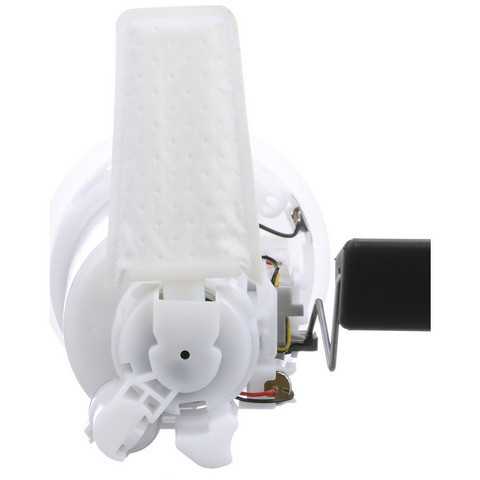

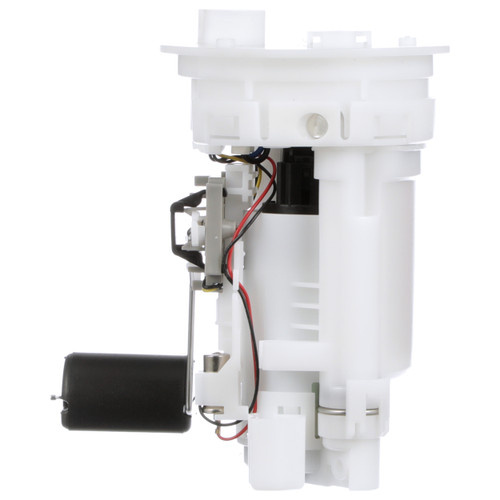

Delphi FG2218 fuel pump module for the 1998-2002 Toyota Corolla 4-cylinder 1.8L and other vehicles delivers fuel from the tank to the engine. This Delphi fuel pump module is built to OE standards, and the float arm it carries reports the fuel level to the gauge.
- Lower amperage draws less load on the vehicle's electrical system
- Validated and tested, then matched to the right application
- Design and durability give lower failure rates
- Empty float height and float retention matched to specifications for a correct gas gauge reading
Quick facts
- Part: Delphi FG2218 fuel pump module
- Also called: fuel pump assembly
- Fits: 1998-2002 Toyota Corolla 4-cylinder 1.8L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the fuel pump assembly is worn, though a bad fuel pump relay or a clogged fuel filter can sit behind the same trouble, so find the cause first.
Fits
This fuel pump module fits the 1998-2002 Toyota Corolla 4-cylinder 1.8L and the 1998-2002 Chevrolet Prizm 4-cylinder 1.8L. Either car takes one.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module with float arm, seal, clip and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the fuel pump module.
- An instruction sheet comes with the part.
Interchange: 950-0100 · 23221-0D010 · 23221-0D011 · 23280-22010 · 77024-02010 · 83320-12620
4011257 · E8213 · DFG2218 · 69487 · P77373M · P88008 · P90007 · 94856918 · A46680 · E16013 · SP1123 · SP9163M
This part cross-references / interchanges with the following part numbers:
4011257, E8213, DFG2218, 69487, P77373M, P88008, P90007, 950-0100, 94856918, A46680, E16013, SP1123, SP9163M, 23221-0D010, 23221-0D011, 23280-22010, 77024-02010, 83320-12620
Frequently Asked Questions
Does the Delphi fuel pump module assembly FG2218 fit the 1998-2002 Chevrolet Prizm 4-cylinder 1.8L?
Yes. Delphi FG2218 is listed for the 1998-2002 Chevrolet Prizm 4-cylinder 1.8L, and that car takes one.
Does Delphi FG2218 come with a float arm and a seal?
Yes. The Delphi FG2218 fuel pump module comes with the float arm, a seal, a clip and an instruction sheet.
Is the float on the Delphi module set up for a correct gas gauge reading?
Yes. This fuel pump module's empty float height and float retention match OE specifications for a correct gas gauge reading.
What should I do before installing the Delphi fuel module?
Check and clean the fuel tank first. The instruction sheet that comes with the part covers the rest of the installation.
Does Delphi FG2218 replace number 23221-0D010?
Yes. 23221-0D010 is one of the numbers that Delphi FG2218 replaces, and it appears on the Interchange line.
