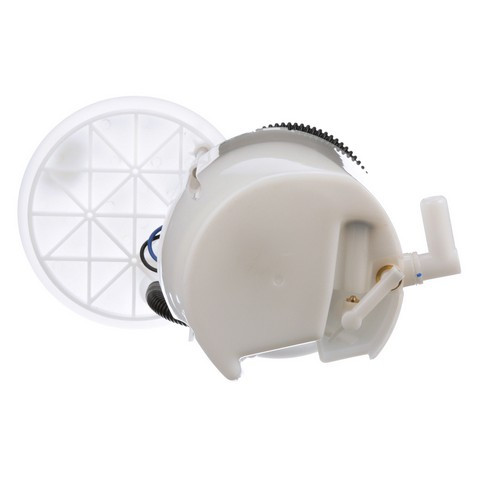

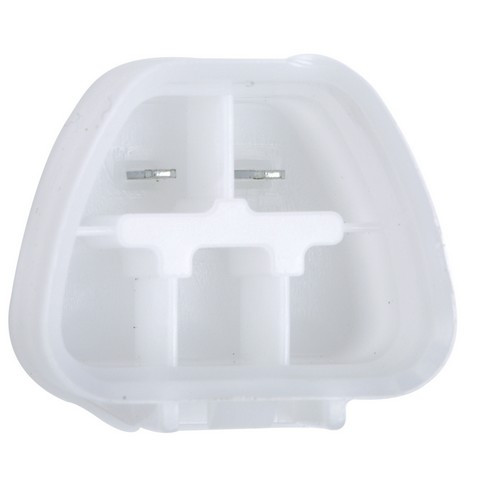

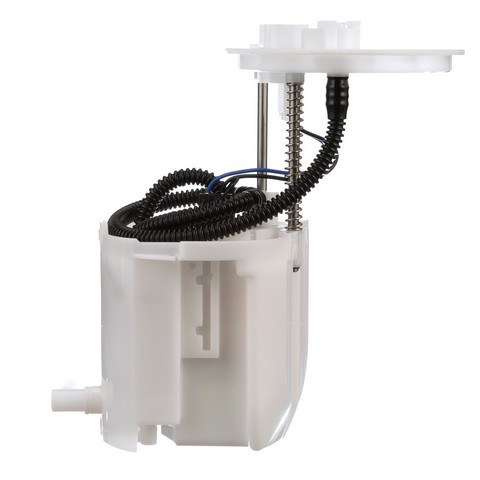

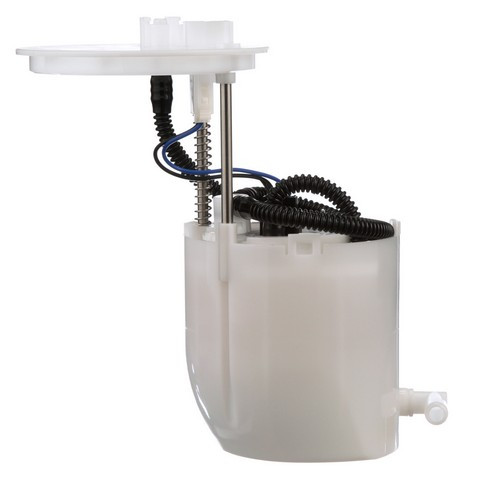

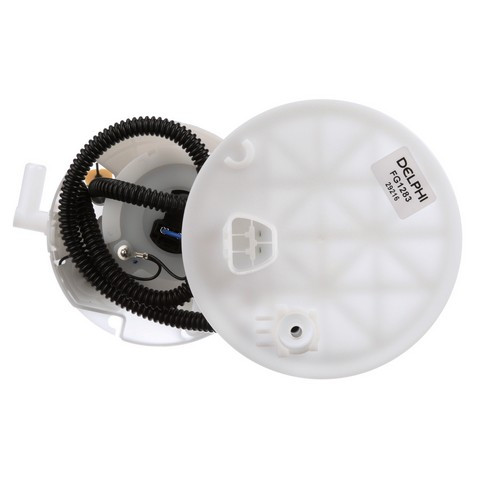

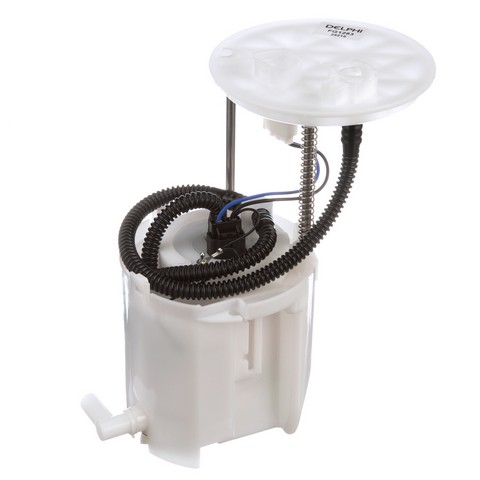

Delphi FG1283 fuel pump module for the 2009-2018 Toyota RAV4 4-cylinder 2.5L supplies fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, replaces a worn or failed module and is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1283 fuel pump module
- Also called: fuel pump assembly
- Fits: 2009-2018 Toyota RAV4 4-cylinder 2.5L
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the module is wearing out. These signs alone do not prove the module is the problem; a blown fuel pump fuse, for one, can stop the pump too.
Fits
This is a direct-fit replacement for the 2009-2018 Toyota RAV4 4-cylinder 2.5L, which takes one. Its empty float height and float retention match OE specifications.
Specifications
- Engine: L4-2.5L
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module. The float arm, seal, bolts and washers, clip and instruction sheet are not included, so plan on new bolts and washers, since the old ones may not be reusable.
Installation notes
- Check and clean the fuel tank before installing the module.
Interchange: 23220-0V021 · 77020-0R010
4011299 · E9004M · CFG1283 · P76783M · A33158 · C0730M · SP9048M
This part cross-references / interchanges with the following part numbers:
4011299, E9004M, CFG1283, P76783M, A33158, C0730M, SP9048M, 23220-0V021, 77020-0R010
Frequently Asked Questions
Will the Delphi FG1283 fit a 2009-2018 Toyota RAV4 4-cylinder 2.5L?
Yes. Delphi FG1283 is listed for the 2009-2018 Toyota RAV4 4-cylinder 2.5L, and that vehicle takes one module.
Does the Delphi fuel pump module come with the float arm and seal?
No. This listing is the module only. The float arm, seal, bolts and washers, clip and instruction sheet are not included.
Does this Delphi fuel module have a lower amperage draw?
Yes. Delphi FG1283 draws lower amperage, which puts less load on the vehicle's electrical system.
Can hard starting or a stalling engine mean the fuel pump module is wearing out?
Yes, they can, and so can a fuel gauge that reads wrong. If the module is at fault, this one replaces it; a shop can test the pump.
Do I need to clean the tank before fitting this Delphi module?
Yes. Check the fuel tank and clean it before the module goes in.
