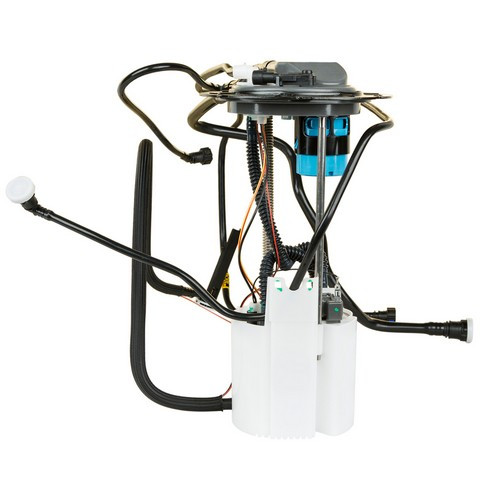

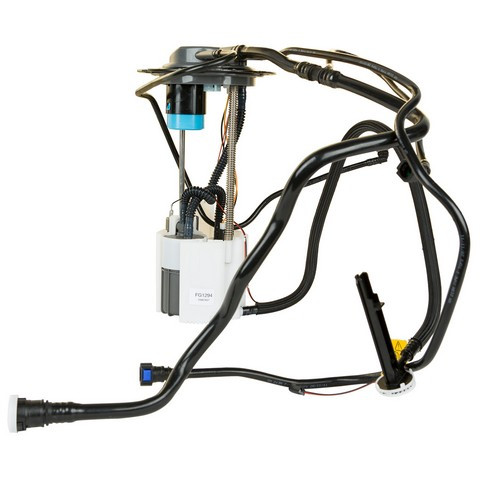

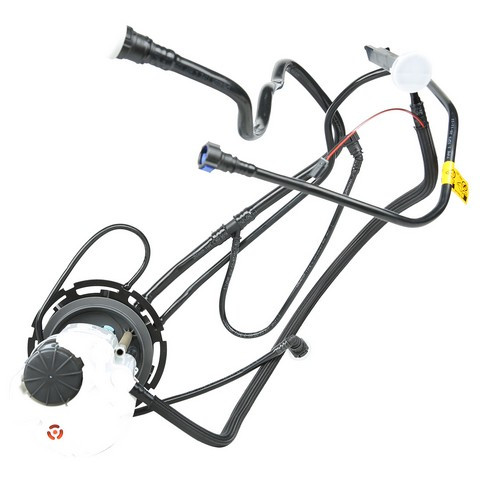

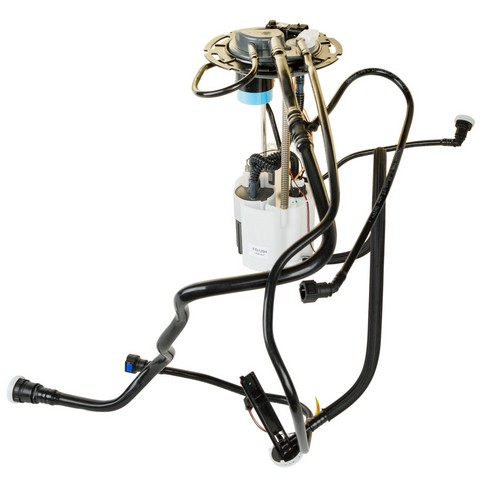

Delphi FG1294 fuel pump module for the 2005-2006 Chevrolet Equinox V6 3.4L and other vehicles moves fuel from the tank to the engine. Delphi builds this fuel pump assembly to its OE standards.
- Lower amperage draw puts less load on the vehicle's electrical system
- Fuel pump module is validated and tested
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG1294 fuel pump module
- Also called: fuel pump assembly
- Fits: 2005-2006 Chevrolet Equinox V6 3.4L and other vehicles
- Position: Left, Right
- Condition: New
Hard starting, stalling, a no-start or a whine from the tank can mean the pump is wearing out. These signs alone do not prove the module is at fault, since a failed fuel pump relay can bring them on too. If the module is the cause, this assembly replaces it.
Fits
It is a direct-fit replacement for the 2005-2006 Chevrolet Equinox V6 3.4L, the 2004-2006 Saturn Vue 4-cylinder 2.2L or V6 3.5L and the 2006 Pontiac Torrent V6 3.4L.
Specifications
Fit and size
- Position: Left, Right
- Quantity per vehicle: 1
Build and materials
- Type: module assembly without float arm
- Condition: New
In the box
One fuel pump module assembly without a float arm, and one instruction sheet. This listing is one module, and the vehicle takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet that comes with the part covers the steps.
Interchange: M10036 · MU1526 · 4010396 · E3626M · FFG1294 · 66108 · 67528 · P76263M · 10378485 · 15146374 · 15867657 · 19122388 · E0814M · A30192 · SP6605M · USEP3626M
This part cross-references / interchanges with the following part numbers:
M10036, MU1526, 4010396, E3626M, FFG1294, 66108, 67528, P76263M, 10378485, 15146374, 15867657, 19122388, E0814M, A30192, SP6605M, USEP3626M
Frequently Asked Questions
Is this the right fuel pump module for a 2005-2006 Chevy Equinox V6 3.4L?
Yes. Delphi FG1294 fits the 2005-2006 Chevrolet Equinox V6 3.4L, and the vehicle takes one module.
Will the Delphi fuel module fit the 2004-2006 Saturn Vue 4-cylinder 2.2L or V6 3.5L?
Yes. Delphi FG1294 fits the 2004-2006 Saturn Vue with either the 4-cylinder 2.2L or the V6 3.5L engine.
Does the Delphi fuel pump module assembly come with a float arm?
No. The Delphi FG1294 is the module assembly without a float arm, and it comes with an instruction sheet.
Does the Delphi fuel pump module put less load on the electrical system?
Yes. The lower amperage draw of this fuel pump module loads the vehicle's electrical system less.
What should I do before installing this Delphi module?
Check and clean the fuel tank first. The instruction sheet that comes with the part covers the installation steps.
