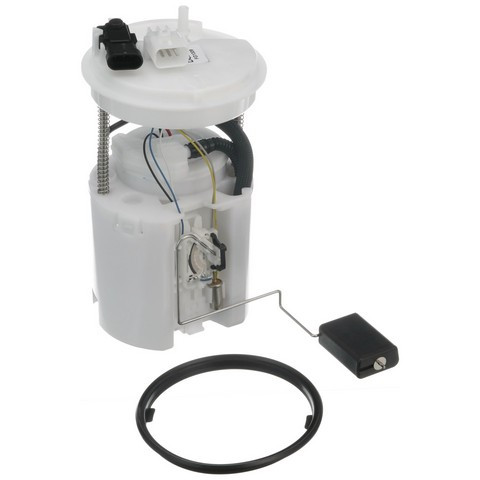

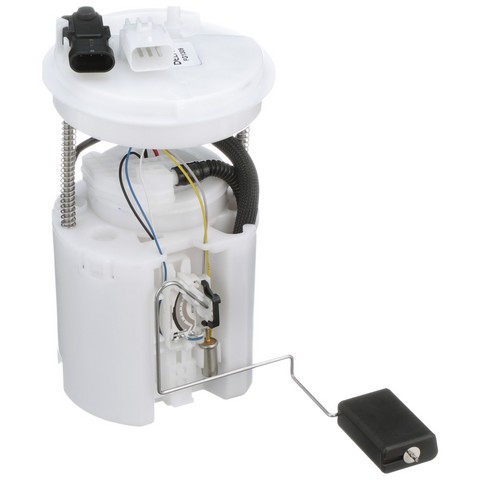

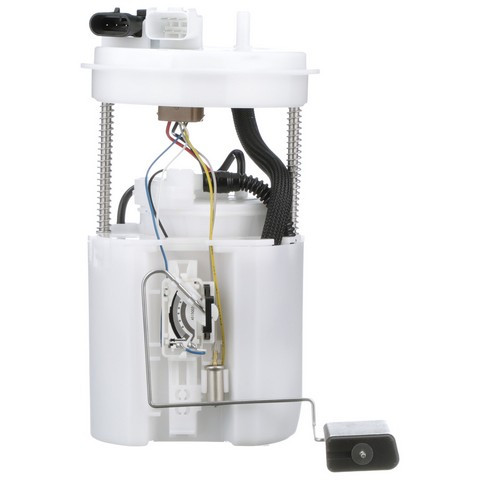

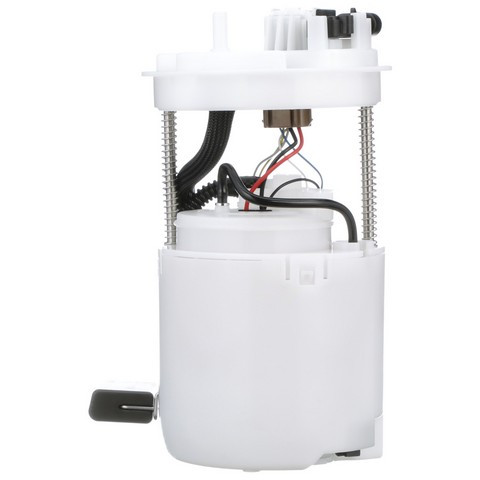

Delphi FG1309 fuel pump module for the 2009-2011 Chevrolet Aveo 4-cylinder 1.6L and other vehicles delivers gasoline from the tank to the engine. Delphi builds its fuel pumps to its OE standards, and this module comes with its float arm.
- Empty float height and float retention match specifications, for a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Regulator and internal strainer built into the module
- Validated and tested before it is matched to its vehicle application
- Design aimed at lower failure rates
Quick facts
- Part: Delphi FG1309 fuel pump module
- Also called: fuel pump assembly
- Fits: 2009-2011 Chevrolet Aveo 4-cylinder 1.6L and other vehicles
- Material: plastic housing
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the fuel pump module is failing, but those signs can have other causes. Find the cause first: with the engine off, check whether the gauge reading matches the amount of fuel you know is in the tank, and leave pump pressure tests to a shop. Some catalogs list this part as a fuel pump assembly.
Fits
This module is a direct-fit replacement for the 2009-2011 Chevrolet Aveo 4-cylinder 1.6L, the 2009-2011 Chevrolet AVEO5 4-cylinder 1.6L and the 2009-2010 Pontiac G3 4-cylinder 1.6L.
Specifications
Fit and size
- Fit type: vehicle-specific
- Mounting: in tank
- Quantity per vehicle: 1
- Terminals: 6 male blade terminals

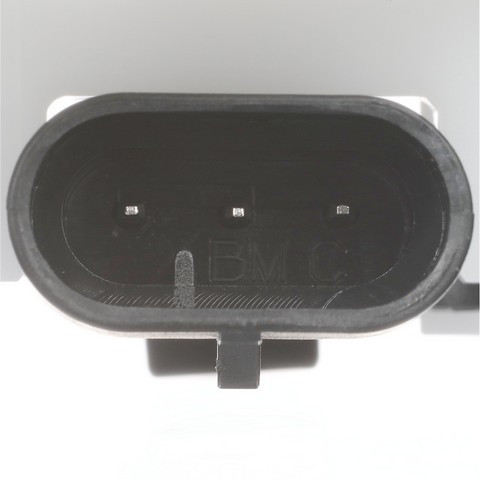

- Connector: 1 rectangular female connector
- Outlet: 1 quick-connect outlet
Build and materials
- Pump type: electric
- Fuel type: gas
- Housing material: plastic
- Gasket or seal: included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with float arm, one gasket or seal and one instruction sheet. A lock ring and mounting hardware are not included, so plan on new ones, as the old ones may not be reusable. This listing holds one module, and the vehicle takes one.
Installation notes
- An instruction sheet comes with the module for the installation steps.
- Check and clean the fuel tank during installation.
Interchange: MU1975 · MU2090 · 4010713 · E4003M · CFG1309 · P77045M · 95037382 · 95947690 · 96802748 · A30500 · SP6667M · USEP4003M
This part cross-references / interchanges with the following part numbers:
MU1975, MU2090, 4010713, E4003M, CFG1309, P77045M, 95037382, 95947690, 96802748, A30500, SP6667M, USEP4003M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2009-2010 Pontiac G3 4-cylinder 1.6L?
Yes. Delphi FG1309 fits the 2009-2010 Pontiac G3 4-cylinder 1.6L, and it also fits the 2009-2011 Chevrolet Aveo 4-cylinder 1.6L.
Does the Delphi module include the float arm and a lock ring?
It includes the float arm, an instruction sheet and a gasket or seal, but not a lock ring or mounting hardware. Delphi FG1309 is one module per listing, and the vehicle takes one.
Is the Delphi fuel module an electric in-tank pump?
Yes, this fuel pump module is an electric pump that sits in the tank and runs on gas. It has one quick-connect outlet and six male blade terminals.
Does the Delphi fuel pump module match the float height needed for a correct gas gauge reading?
Yes. The empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Should the fuel tank be cleaned when installing Delphi FG1309?
Yes. The fuel tank should be checked and cleaned during installation, and the instruction sheet that comes with the module covers the steps.
