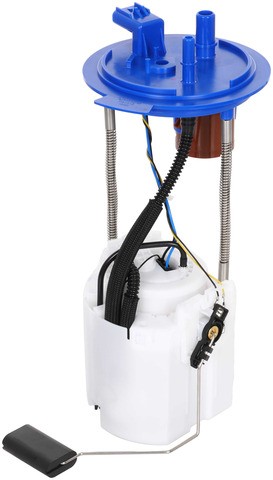

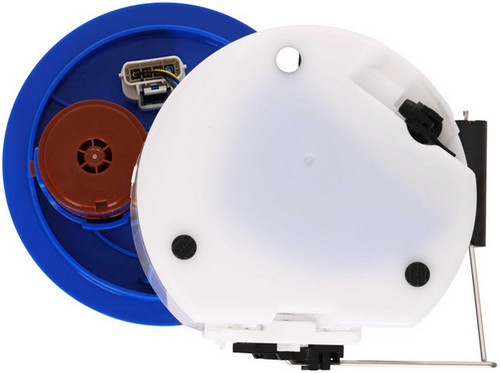

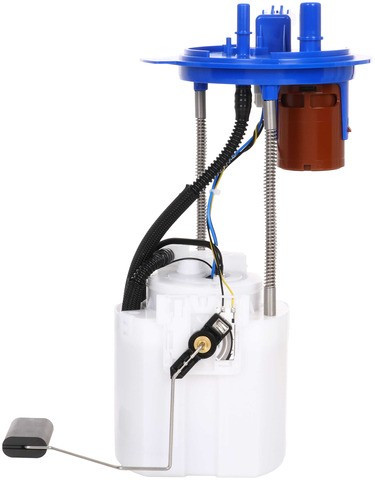

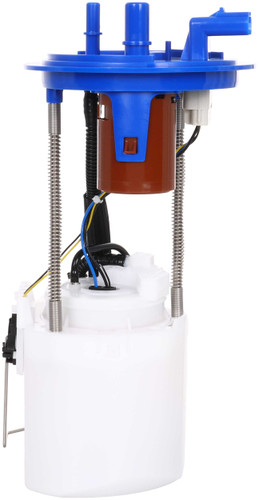

Delphi FG1319 fuel pump module for the 2009-2014 Ford Expedition V8 5.4L and other vehicles moves fuel from the tank to the engine. It is also called a fuel pump assembly and comes with its float arm.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Lower failure rates from the module's design and durability
Quick facts
- Part: Delphi FG1319 fuel pump module
- Also called: fuel pump assembly
- Fits: 2009-2014 Ford Expedition V8 5.4L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the module is worn. A blown fuse or a corroded connector can look the same, so with the engine off, look at the fuse and the connector first and leave fuel pressure testing to a shop.
Fits
It fits the 2009-2014 Ford Expedition V8 5.4L and the 2009-2014 Lincoln Navigator V8 5.4L, and either one takes a single module. It is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V8-5.4L
Build and materials
- Type: fuel pump module assembly with float arm
- Seal: included
- Condition: New
In the box
One fuel pump module with float arm, one seal and one instruction sheet.
Installation notes
- An instruction sheet comes with the module for the steps.
- Check and clean the fuel tank before installing the module.
Interchange: 9L1Z 9A299-C · 9L1Z 9H307-C · 9L1Z 9H307-D · AL1Z 9A299-A · PFS-552 · PS-399 · PS-414
4010717 · E2523M · DFG1319 · P76460M · P76463M · P76464 · C0124M · A30443 · SP2375M · SP2496M · USEP2523M
This part cross-references / interchanges with the following part numbers:
4010717, E2523M, DFG1319, P76460M, P76463M, P76464, 9L1Z 9A299-C, 9L1Z 9H307-C, 9L1Z 9H307-D, AL1Z 9A299-A, PFS-552, PS-399, PS-414, C0124M, A30443, SP2375M, SP2496M, USEP2523M
Frequently Asked Questions
Does the Delphi FG1319 fit a 2009-2014 Ford Expedition V8 5.4L?
Yes. Delphi FG1319 fits the 2009-2014 Ford Expedition V8 5.4L and the 2009-2014 Lincoln Navigator V8 5.4L, one module per vehicle.
What comes with the Delphi fuel pump module assembly FG1319?
Delphi FG1319 is one module assembly with a float arm, a seal and an instruction sheet.
Is the float on this Delphi fuel module set to OE height?
Yes. Empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Does this Delphi fuel pump module draw less current?
Yes. This fuel pump module's lower amperage draws less load on the vehicle's electrical system.
What should I do before putting a Delphi module in the tank?
Check and clean the fuel tank first, and follow the instruction sheet that comes with the module.
