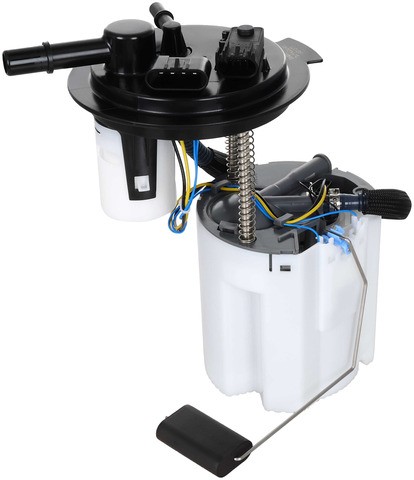

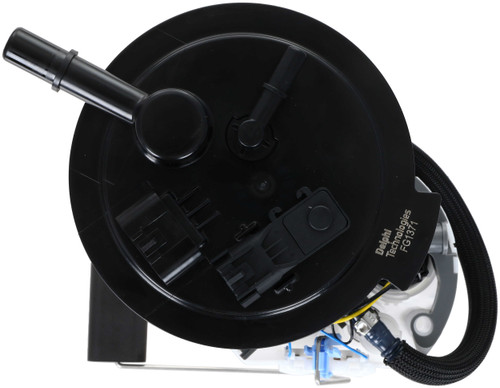

Delphi FG1371 fuel pump module for the 2009-2017 Chevrolet Traverse V6 3.6L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention are held to specification so the gas gauge reads correctly
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1371 fuel pump module
- Also called: fuel pump assembly
- Fits: 2009-2017 Chevrolet Traverse V6 3.6L and other vehicles
- Condition: New
Hard starting, stalling or an erratic fuel gauge can mean the module is worn. Before you replace it, rule out a clogged fuel filter and a wiring or relay fault, which can show up the same way, and have the fuel system looked at by a shop if you are unsure.
Fits
The 2009-2017 Chevrolet Traverse V6 3.6L, the 2009-2016 GMC Acadia V6 3.6L and the 2009-2017 Buick Enclave V6 3.6L each fit this module at one per vehicle, and it fits more vehicles besides. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V6-3.6L
Build and materials
- Float arm: included
- Condition: New
In the box
One fuel pump module with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
This part cross-references / interchanges with the following part numbers:
EP1031, M100059, M10059, MU2114, MU2209, MU2318, 4010726, E3790M, CFG1371, F2701A, 69787, M3520868, P76830M, 15969626, 19167429, 19329336, 19370465, 22753589, 22783658, 22833390, 22957143, 23240487, 84084766, C0297M, A30461, A46024, SP6657M
Frequently Asked Questions
Does the Delphi FG1371 fit a 2009-2016 GMC Acadia V6 3.6L?
Yes. Delphi FG1371 fits the 2009-2016 GMC Acadia V6 3.6L at one per vehicle; open the "Vehicles it fits" section to check other models.
Does the Delphi FG1371 come with a float arm and seal?
Yes. Delphi FG1371 comes as an assembly with its float arm, a seal and an instruction sheet.
How does the float on this Delphi module affect the gas gauge?
Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
What are the signs a Delphi fuel module is failing?
Hard starting, stalling or an erratic fuel gauge can point to a worn module. A shop can test the fuel system, and a suspected fuel pump problem should be checked promptly.
What should I do to the tank before installing this fuel pump module?
Check and clean the fuel tank first. The instruction sheet that comes with the part covers the installation steps.
