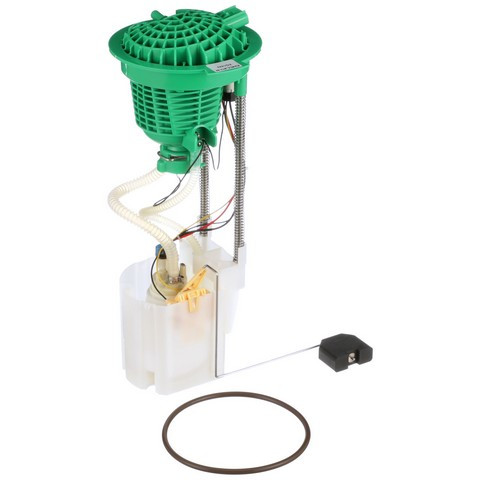

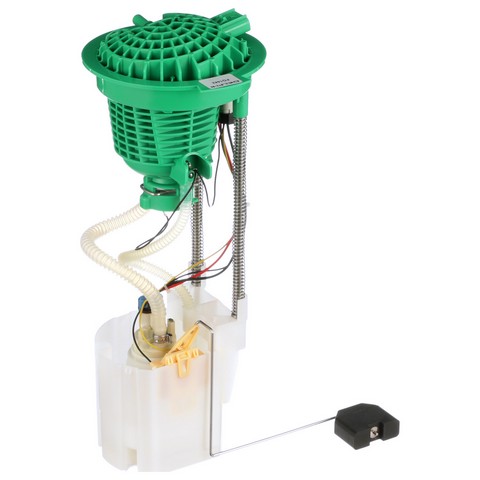

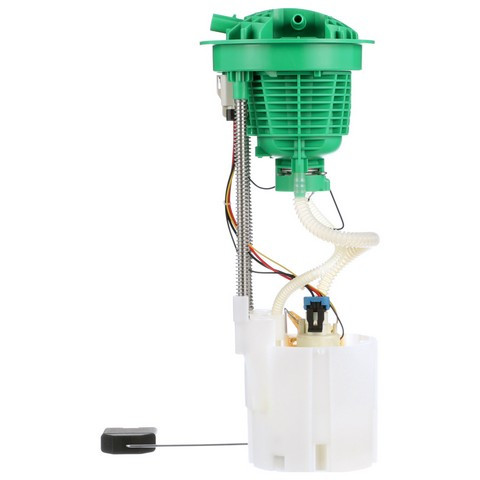

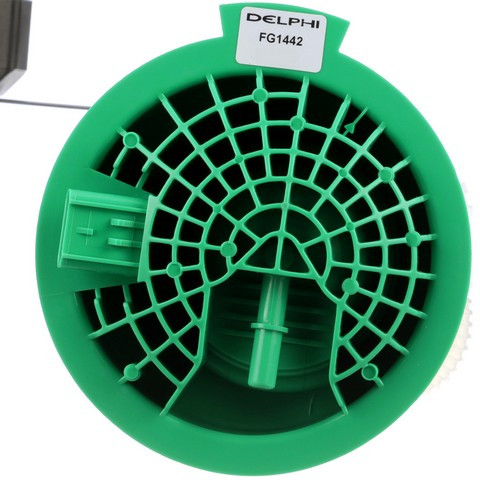

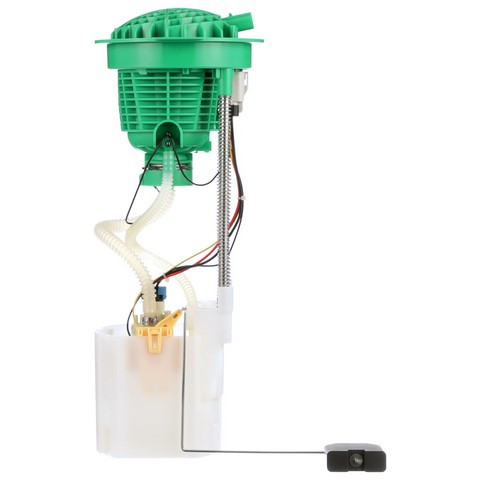

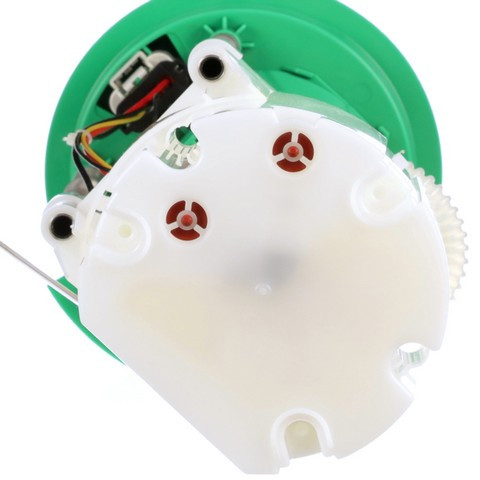

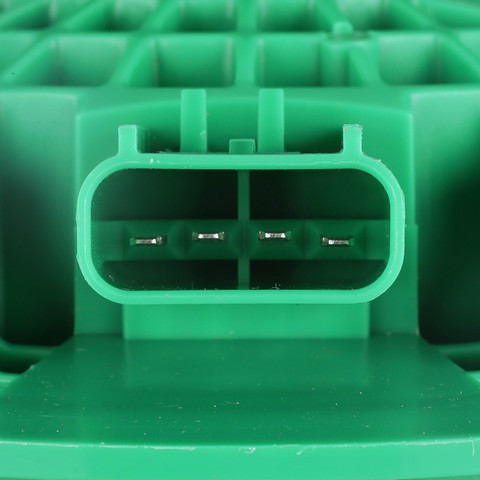

Delphi FG1442 fuel pump module for the 2004-2007 Dodge Ram 1500 V8 4.7L moves fuel from the tank to the engine. This Delphi fuel pump module assembly is built to OE standards and includes a float arm that reports the fuel level to the gauge.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage, so the pump puts less load on the electrical system
- Validated and tested, then matched to its application
- Design and durability aimed at keeping failure rates low
Quick facts
- Part: Delphi FG1442 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2007 Dodge Ram 1500 V8 4.7L
- Condition: New
A failing pump can show up as an engine that cranks but will not start, sputtering under load or a gas gauge that does not match the tank. Hard starting can also come from a fuse, relay or wiring fault, so look at the fuse with the ignition off and have a shop test fuel pressure before you replace the module.
Fits
This is a direct-fit replacement for the 2004-2007 Dodge Ram 1500 V8 4.7L.
Specifications
- Quantity per vehicle: 1
- Engine: V8-4.7L
- Condition: New
In the box
One fuel pump module with float arm, one seal and one instruction sheet. This listing is one module, and the 2004-2007 Dodge Ram 1500 V8 4.7L takes one.
Installation notes
- An instruction sheet comes with the part.
- Check and clean the fuel tank when fitting the new module.
Interchange: 5104 695AB · 5104 695AD · 5104 698AC · 953-3071
4010557 · E7180M · EFG1442 · 69345 · P76259M · P76260M · P76277M · AFS0941S · C0474M · A30121 · SP7025M · SP7193M · USEP7180M
This part cross-references / interchanges with the following part numbers:
4010557, E7180M, EFG1442, 69345, P76259M, P76260M, P76277M, 5104 695AB, 5104 695AD, 5104 698AC, 953-3071, AFS0941S, C0474M, A30121, SP7025M, SP7193M, USEP7180M
Frequently Asked Questions
Will Delphi FG1442 fit the 2004-2007 Dodge Ram 1500 V8 4.7L?
Yes. Delphi FG1442 is listed for the 2004-2007 Dodge Ram 1500 V8 4.7L, which takes one.
Does this fuel pump assembly come with a float arm and seal?
Yes. It comes with the float arm, a seal and an instruction sheet. The listing is one module.
Is the Delphi fuel pump module built to OE standards?
Yes. Delphi FG1442 is built to Delphi's OE standards, and its empty float height and float retention match OE specifications for a correct gas gauge reading.
Does this Delphi fuel module draw less current?
Yes. Its lower amperage draws less load on the vehicle's electrical system.
Should I clean the tank before fitting the Delphi module?
Yes. The fuel tank should be checked and cleaned during installation, and an instruction sheet comes with the part.
